JVC KD-LX50R Service Manual

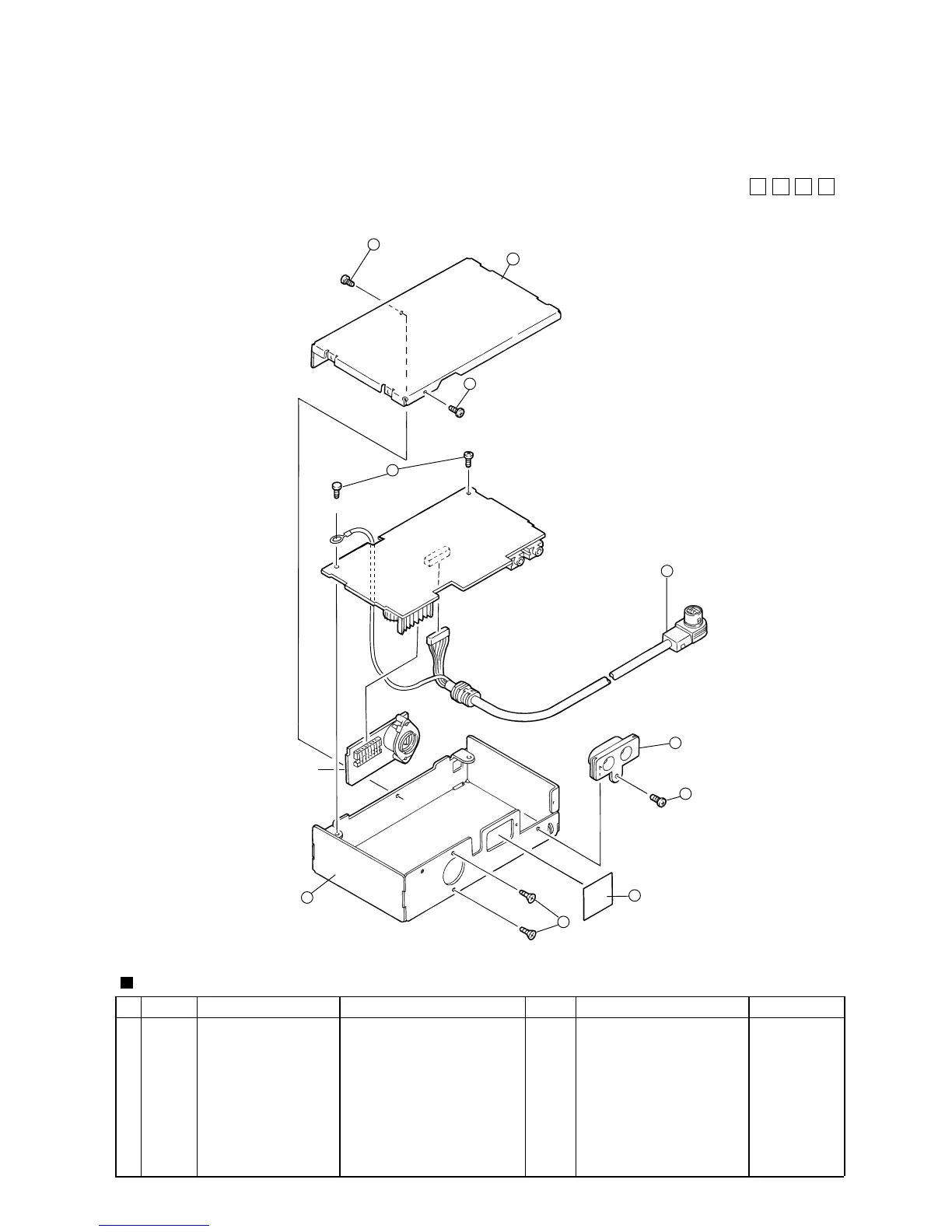

Voice unit assembly and parts list
Block No.
M
M
M
2
6
1
6
7
Voice board
Voice board
5
4
6
3
8
2
Item Parts number Parts name Area
A
Parts list
Q'ty Description
Block No. M2MM
1 LV31826-001A TOP COVER 1
2 LV31827-001A BOTTOM CASE 1
3 LV41143-001A SHEET 1
4 LV41624-001A HOLE BASE 1
5 QAM0249-002 DIN CORD CABLE 1
6 QYSDST2606Z SCREW 3
7 QYSDST2606Z SCREW 2
8 LV41152-001B SPECIAL SCREW 2
Voice unit
(General assembly)
