JVC KD-R661

ENGLISH
13
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
SCROLL *
2
ONCE :Scrolls the display information once.; AUTO :Repeats scrolling at
5-second intervals.;
OFF :Cancels.
COLOR (for KD-R561 )
PRESET Select a color for [ BUTTONZONE ].
Default: [
COLOR06 ]
•
COLOR01 to COLOR29
• USER : The color you have created for [ DAYCOLOR ] or [ NIGHTCOLOR ] is
shown.
•
COLORFLOW01 to COLORFLOW03 : Color changes at different speeds.
DAY COLOR Store your own day and night colors.
1 RED / GREEN / BLUE :Select a primary color.
2 00 to 31 :Select the level.
Repeat steps
1 and 2 for all the primary colors.
• Your setting is stored to
[USER] in [COLOR] .
NIGHT COLOR
MENU COLOR
ON :Changes the button illumination to white color when settings are
performed on menu and list search.;
OFF :Cancels.
[ NIGHTCOLOR ] or [ DAYCOLOR ] is changed by turning on or off your car’s
headlight.
*
1
The illumination control wire connection is required. ( 19 )
*
2
Some characters or symbols will not be shown correctly (or will be blanked).
KD-R661 / KD-R466 / KD-R461KD-R561
1 Press and hold .
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default: XX
DISPLAY
DIMMER
Selects the display and button illumination adjusted in the [ BRIGHTNESS ]
setting.
OFF :Selects the day adjustments.; ON :Selects the night adjustments.;
DIMMER TIME :Adjusts the dimmer on and off time.
Turn the volume knob to adjust the [
ON ] time, then press the knob.
Turn the volume knob to adjust the [
OFF ] time, then press the knob.
(Default: [
ON ]: 18:00 or 6:00 PM
[
OFF ]: 6:00 or 6:00 AM)
AUTO :Changes between the day and night adjustments when you turn off or
on the car headlights. *
1
For KD-R561 , the display and button colors change according to the settings
made on [
COLOR ].
BRIGHTNESS Sets the button, display and USB input terminal brightness for day and night
separately.
1 DAY / NIGHT :Select day or night.

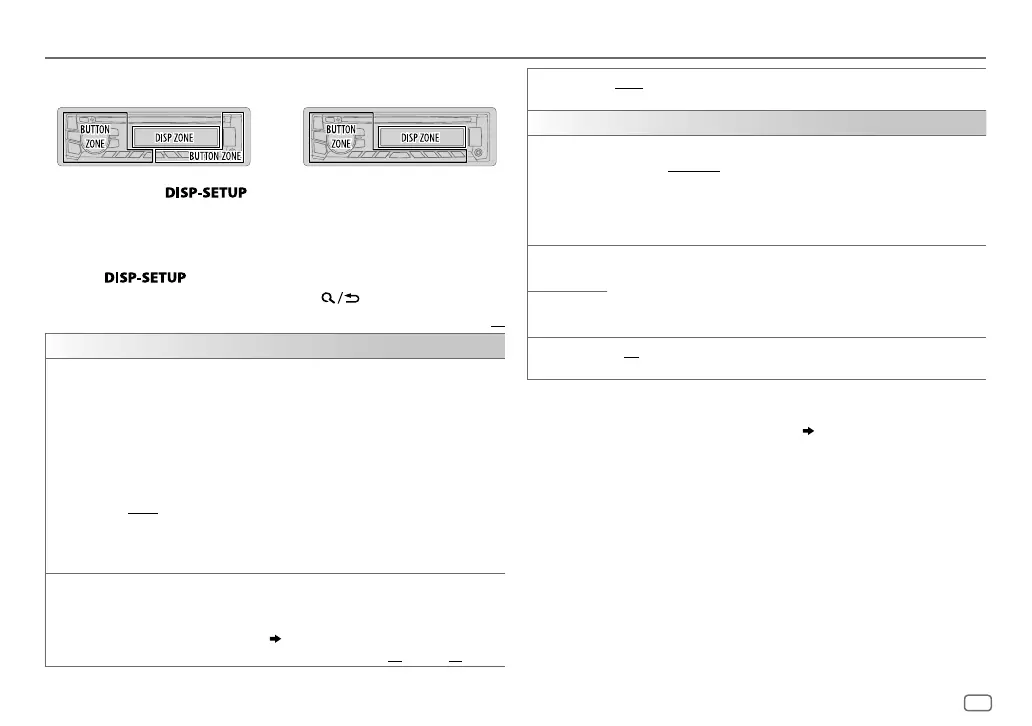

2 Select a zone for setting. ( Illustration above )
3 Set the brightness level ( 00 to 31 ). (Default: DAY : 31 ; NIGHT : 15 )
DISPLAY SETTINGS
