JVC KD-R691 Schematic Diagrams

(No.MA665<Rev.001>)14/33

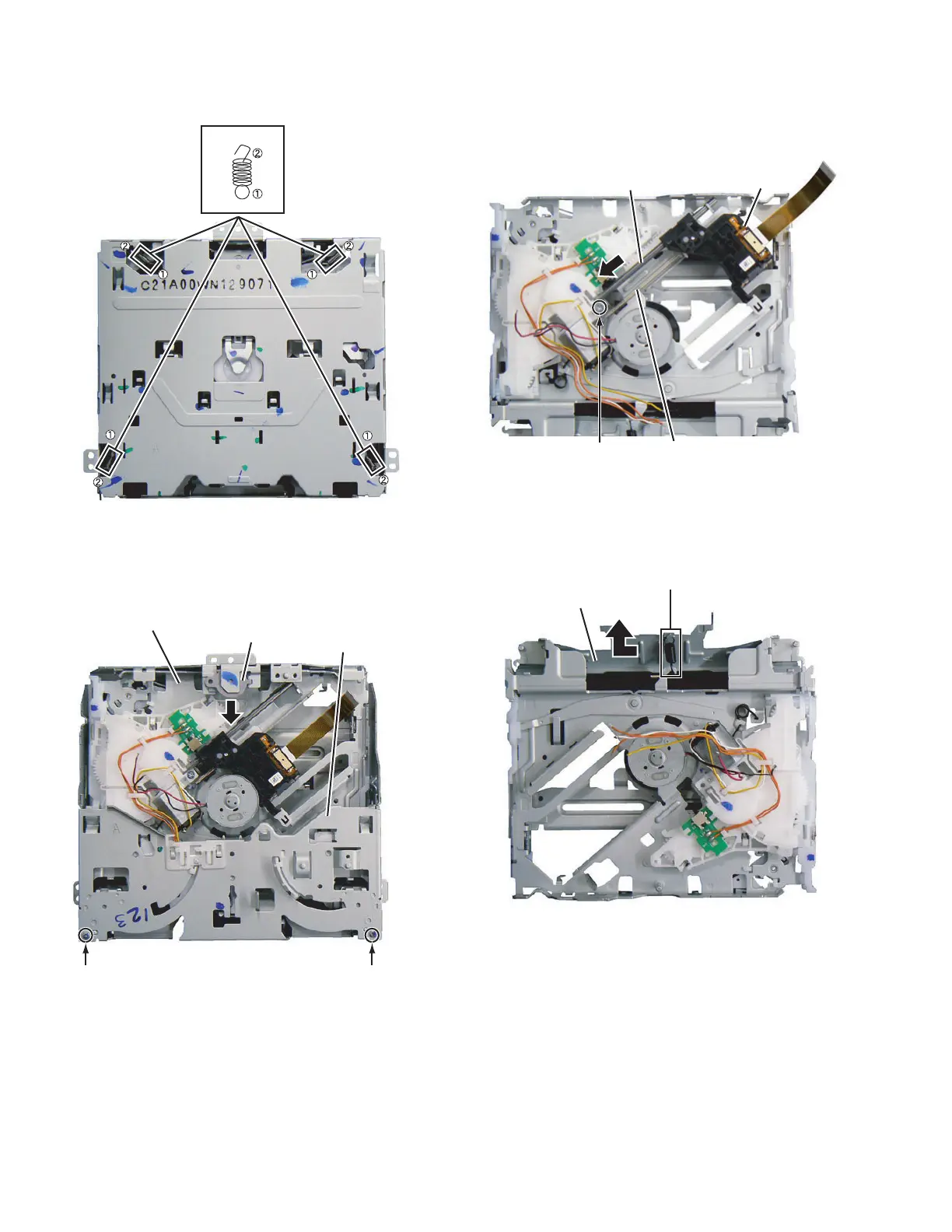

3.2.2 Removing the TRAVERSE MECHANISM (See Fig.4, 5)
(1) Remove the 4 springs from the TRAVERSE MECHANISM.
(See Fig.4)
Fig.4
(2) Remove the 2 screws B.
(See Fig.5)
(3) Remove the DAMPER in the direction of the arrow.
(See Fig.5)
(4) Remove the TRAVERSE MECHANISM. (See Fig.5)
Fig.5
3.2.3 Removing the PICKUP ASSY (See Fig.6)
(1) Remove the 1 screw C.
(2) Remove the MAIN SHAFT in the direction of the arrow.
(3) Remove the SPRING.
(4) Remove the PICKUP ASSY.
Fig.6
3.2.4 Removing the ROLLER LEVER ASSY (See Fig.7)
(1) Remove the SPRING.
(2) Remove the ROLLER LEVER ASSY in the direction of the
arrow.
Fig.7
SPRING
LOWER CHASSIS
DAMPER
TRAVERSE MECHANISM
BB
PICKUP ASSY
MAIN SHAFT
SPRING
C
SPRING
ROLLER LEVER ASSY
