JVC KD-R691 - Page 34

(No.MA665<Rev.001>)15/33

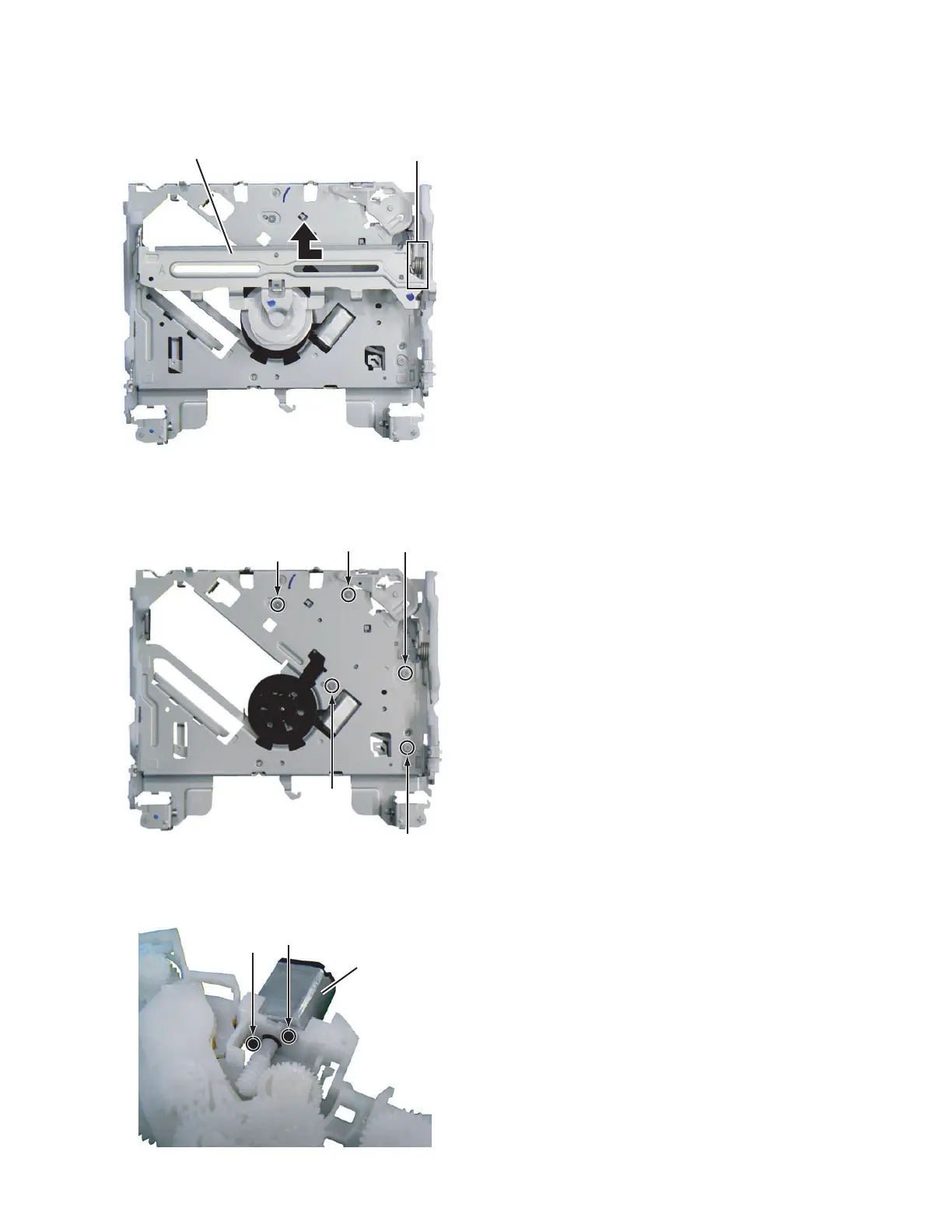

3.2.5 Removing the CLAMP ARM ASSY (See Fig.8)
(1) Remove the SPRING.
(2) Remove the CLAMP ARM ASSY in the direction of the ar-
row.
Fig.8
3.2.6 Removing the FEED MOTOR (See Fig.9, 10)
(1) Remove the 5 screws D, and remove the FEED MOTOR
ASSY. (See Fig.9)
Fig.9
(2) Remove the 2 screws E, remove the Feed motor.
(See Fig.10)
Fig.10
SPRING
CLAMP ARM ASSY
D
D
D
D
D
Feed motor
E
E
