JVC KD-R756 - Wiring Connections; Wiring Connection Guide; Recommended Wiring Connections

17
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
KD-R756 KD-R656 / KD-R556 / KD-R456 /
KD-R455 / KD-R454
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
KD-756 / KD-556 only
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if
your vehicle factory wiring
harness does not have
“12V ignition switch” wire.
Separate
red wire

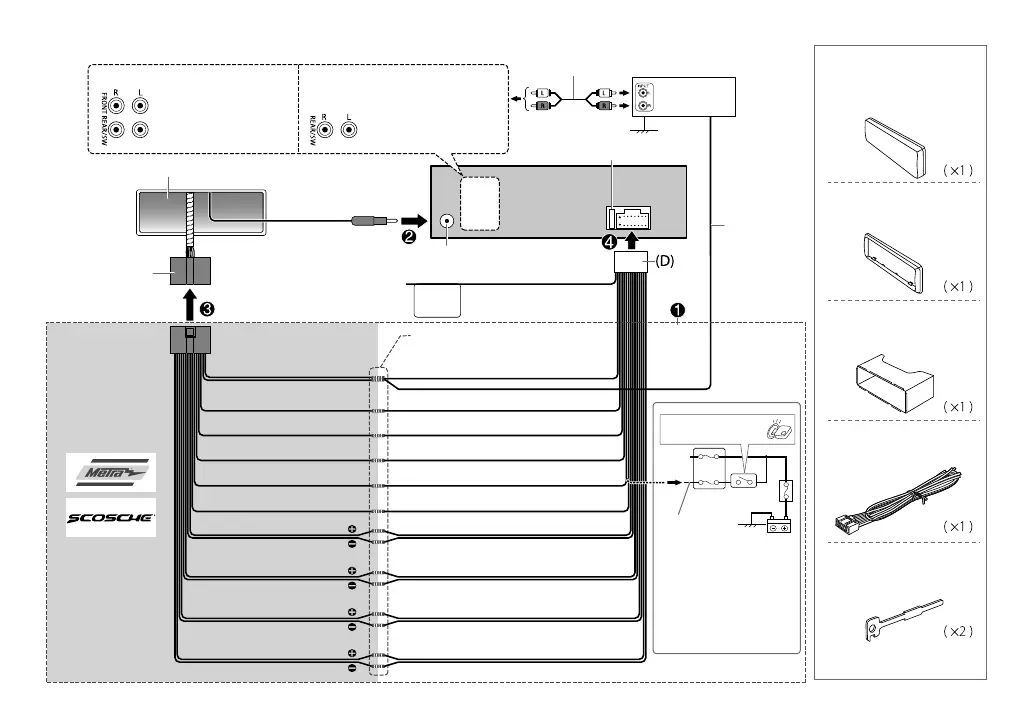

Wiring connection
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
Front output
Rear/subwoofer output
Rear/subwoofer output
JVC Amplifier
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Brown: Tel muting
Blue/white: Remote (200mA max.)
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
