JVC KD-R951BT User Manual

21
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

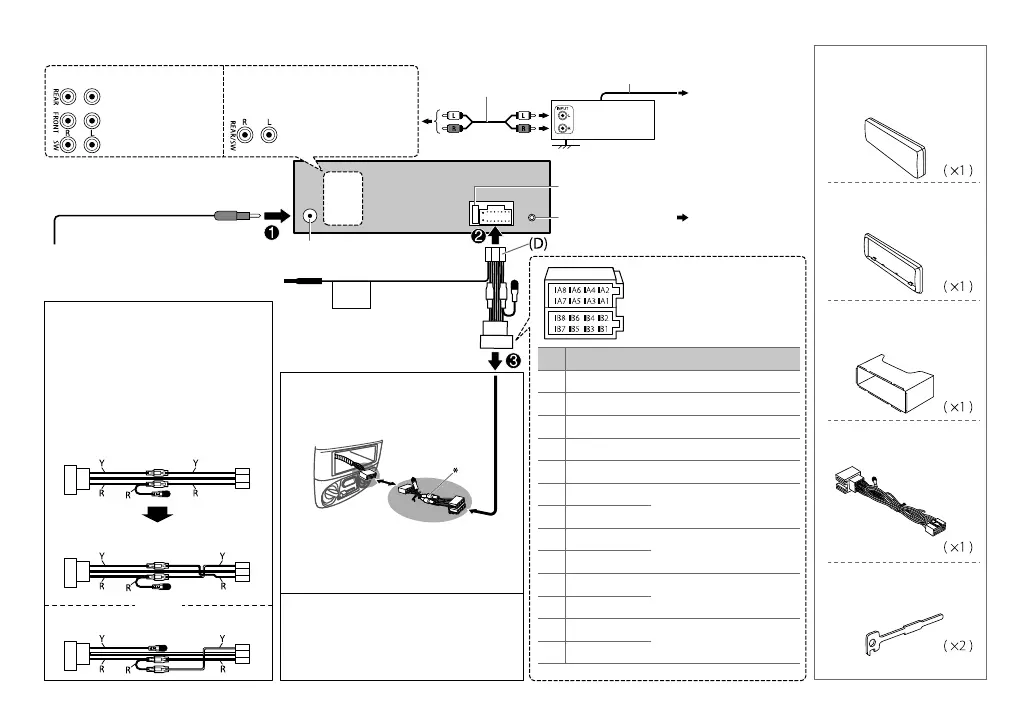

Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
STEERING
WHEEL
REMOTE
Microphone input jack ( 9)
Wiring connection
Light blue/yellow
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
To Blue/white wire of
the wiring harness
(D)
Antenna terminal
JVC Amplifier
IMPORTANT: A custom wiring harness
(separately purchased) which is suitable for
your car is recommended for connection.
If your car does NOT have an ISO
terminal
( or )
ISO connector
* Custom wiring harness (separately
purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the
supplied power cord
(D) as illustrated.
If the unit does not turn on with modified
wiring 1, use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
ª
: Rear speaker (right)
B2 Purple/black
·
B3 Gray ª
: Front speaker (right)
B4 Gray/black
·
B5 White ª
: Front speaker (left)
B6 White/black
·
B7 Green ª
: Rear speaker (left)
B8 Green/black
·
Rear/subwoofer output
Front output
Subwoofer output
Rear output
KD-R951BT KD-R852BT / KD-R851BT
