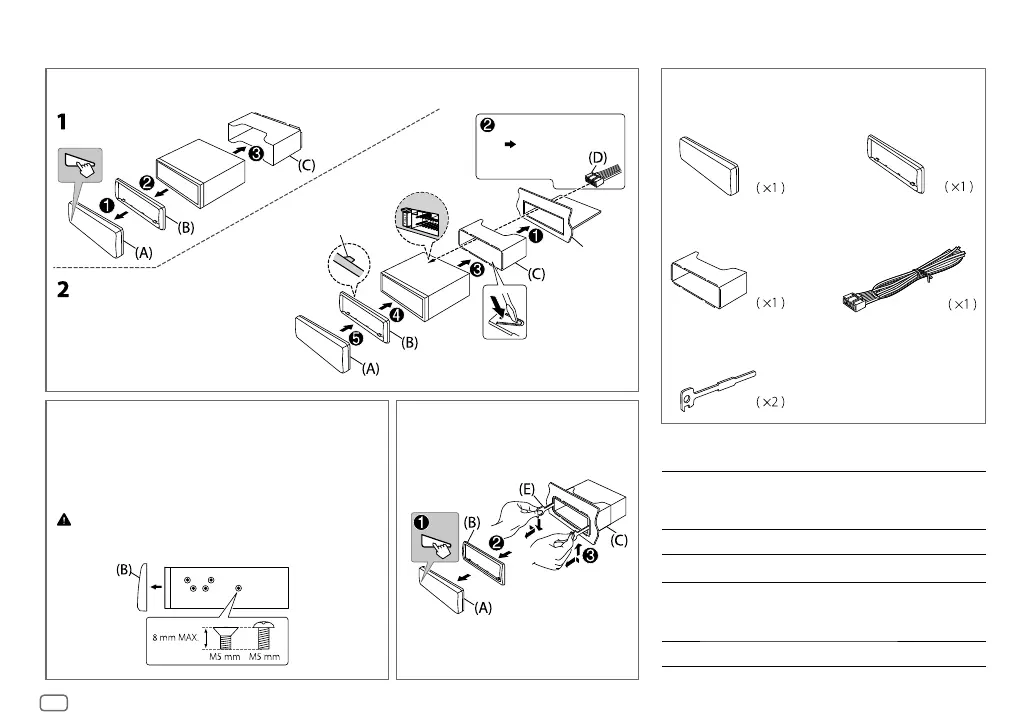

Part list for installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
How to remove the unitWhen installing without the mounting sleeve
1
Remove the mounting sleeve and trim plate
from the unit.
2 Align the holes in the unit (on both sides) with
the vehicle mounting bracket and secure the
unit with screws (commercially available).
Use only the specified screws. Using wrong screws might
damage the unit.
Installing the unit (in-dash mounting)
Do the required wiring.
(  29)
Bend the appropriate tabs to hold
the sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
Output terminals
For 2-way crossover setting
KD-R971BT REAR
FRONT
SW
: Rear output
: Front output
: Subwoofer output
KD-R771BT REAR/SW : Rear/subwoofer output
For 3-way crossover setting
KD-R971BT REAR
FRONT
SW
: Tweeter output
: Mid Range output
: Woofer output
KD-R771BT REAR/SW : Woofer output
