KD-S7350/KD-S690
(No.49778)1-7
2.1.8 Removing the front board
(See Figs.10 to 12.)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws J on the back side of the front pan-
el assembly.
(2) Release the fourteen joints f.
(3) Take out the front board.

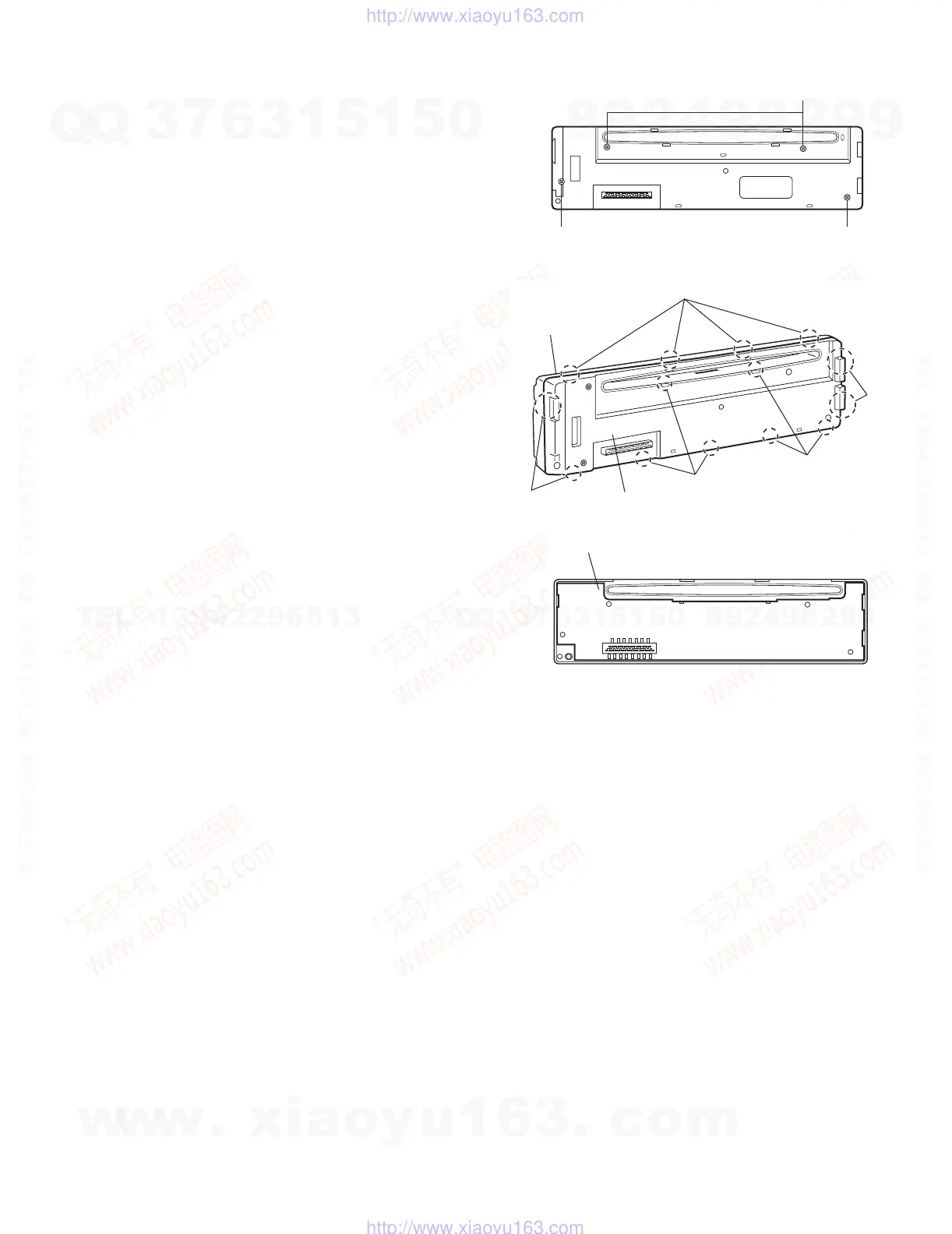

Fig.10
Fig.11
Fig.12
J
J
J
Joint f
Joint f
Rear cover
Front panel
Joint f
Joint f
Joint
Front board
