Prior to performing the following procedure, remove
the CD mechanism control board.
Remove the two springs k attaching the CD mechanism
ass’y and the front bracket.
Remove the two screws G and the front bracket
while pulling the flame outward.
Remove the belt and the screw H from the loading
motor.
*
1.
2.
3.
Removing the loading motor
(See Fig.12 to 14)
Prior to performing the following procedure, remove
the CD mechanism control PWB and the front
bracket (loading motor).
Remove the three screws I and the damper bracket.
Raise the both sides fix arms and move the fix plates
in the direction of the arrow to place the four shafts l
as shown in Fig.17 and 18.
Remove the CD mechanism ass’y and the two
springs m attaching the flame.
Remove the two screws J and both sides rear
damper brackets from the dampers. Detach the CD
mechanism ass’y from the left side to the right side.
*
1.
2.
3.
4.
Removing the CD mechanism ass’y
(See Fig.10, 15 to 18)
The CD mechanism ass’y can be
removed if only the rear damper
bracket on the left side is removed.
ATTENTION:

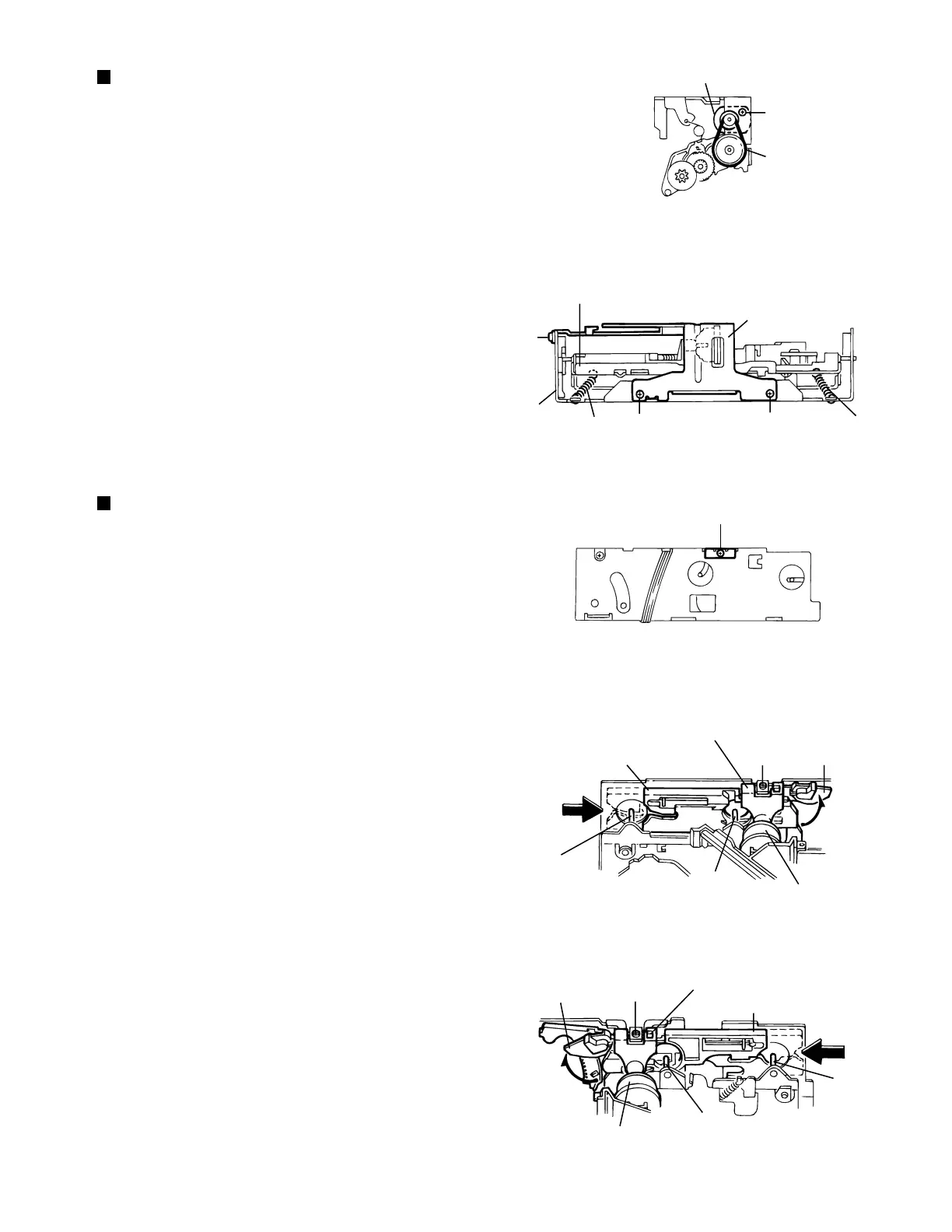

Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Rear damper bracket
Fix arm (R)
Damper
H
I
I
Loading motor
Belt
Damper bracket
CD mechanism assembly
Flame
m
m
I
I
Fix plate (L)
l
l
Rear damper bracket
Fix arm (L)
Damper
J
Fix plate(R)
J
l
l
