JVC KD-S7R Service Manual

KD-S7R
1-8
Prior to disassembling the CD mechanism, remove
the following parts.
The front panel unit and the front chassis (Refer to
Fig.1 and 2)
The heat sink (Refer to Fig.3)
The bottom cover (Refer to Fig.4)
The main amplifier board (Refer to Fig.5 and 6)
The CD mechanism assembly (Refer to Fig.7)
<CD mechanism section>
Unsolder the part f and g on the CD mechanism
control board.
Remove the stator fixing the CD mechanism control
board and the damper bracket (To remove the stator
smoothly, pick up the center part).
Remove the screw F attaching the CD mechanism
control board.
Remove the CD mechanism control board in the
direction of the arrow while releasing it from the two
damper bracket slots i and the front bracket slot j.
Disconnect the flexible wire from connector on the
pickup unit.
1.
2.

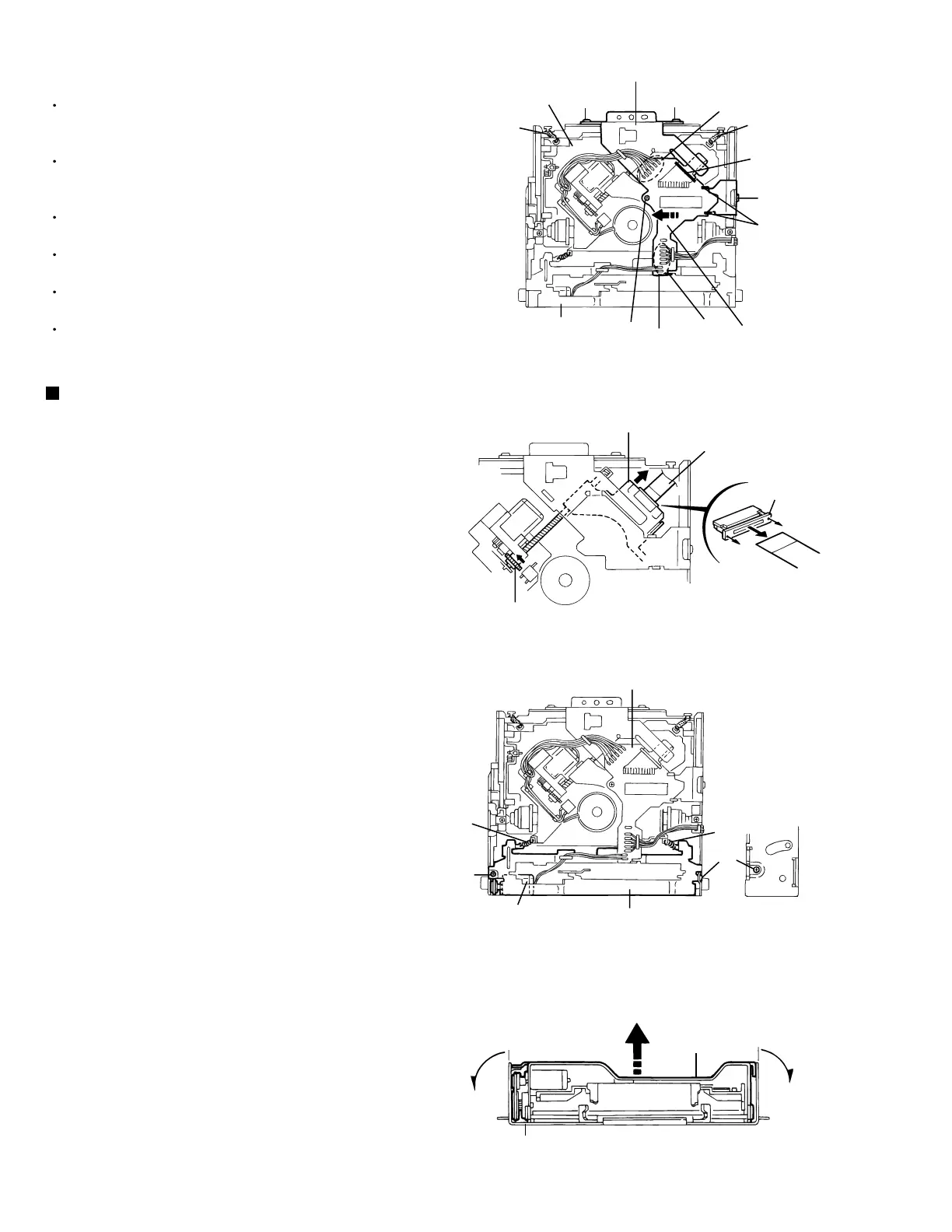

Removing the CD mechanism control
board(See Fig.10 and 11)
Turn the FD gear in the direction of the
arrow to move the entire pickup unit to
the appropriate position where the
flexible wire of the CD mechanism unit
can be disconnected easily (Refer to
Fig.11).
ATTENTION:
Fig.10
Fig.11
Fig.12
Fig.13
Front bracket
CD mechanism
control board
Shift the
lock
Flexible wire
Pickup unit
FD gear
CD mechanism control board
Loading motor
Front bracket
Front bracket
Pull
outward
Pull outward
Flame
Damper bracket
m
m
h
i
g
f
I
I
I
CD mechanism
assembly
F
j
k
G
k
G
