KD-S7R
1-10
Prior to performing the following procedure, remove
the CD mechanism control board, the front bracket
(loading motor) and the CD mechanism assy.
Remove the two screws K and the feed motor assy.
*
1.
Removing the feed motor assembly
(See Fig.19)
*Prior to performing the following procedure, remove
the CD mechanism control board, the front bracket
(loading motor), the CD mechanism assy and the
feed motor assy.
Detach the FD gear part of the pickup unit upward.
Then remove the pickup unit while pulling out the
part n of the FD screw.
*
1.
Remove the screw L attaching the nut push spring
plate and the pickup mount nut from the pickup unit.
Pull out the FD screw.
2.
Removing the pickup unit
(See Fig.19 and 20)
When reattaching the pickup unit,
reattach the part o of the pickup unit,
then the part n of the FD screw.
ATTENTION:
Prior to performing the following procedure, remove
the CD mechanism control board, the front bracket
(loading motor), the CD mechanism assy and the
feed motor assy.
Turn up the CD mechanism assy and remove the
two springs p on both sides of the clamper arms.
Open the clamper arm upward.
Turn the turn table, and remove the two screws M
and the spindle motor.
*
1.
2.
Removing the spindle motor
(See Fig.21 and 22)

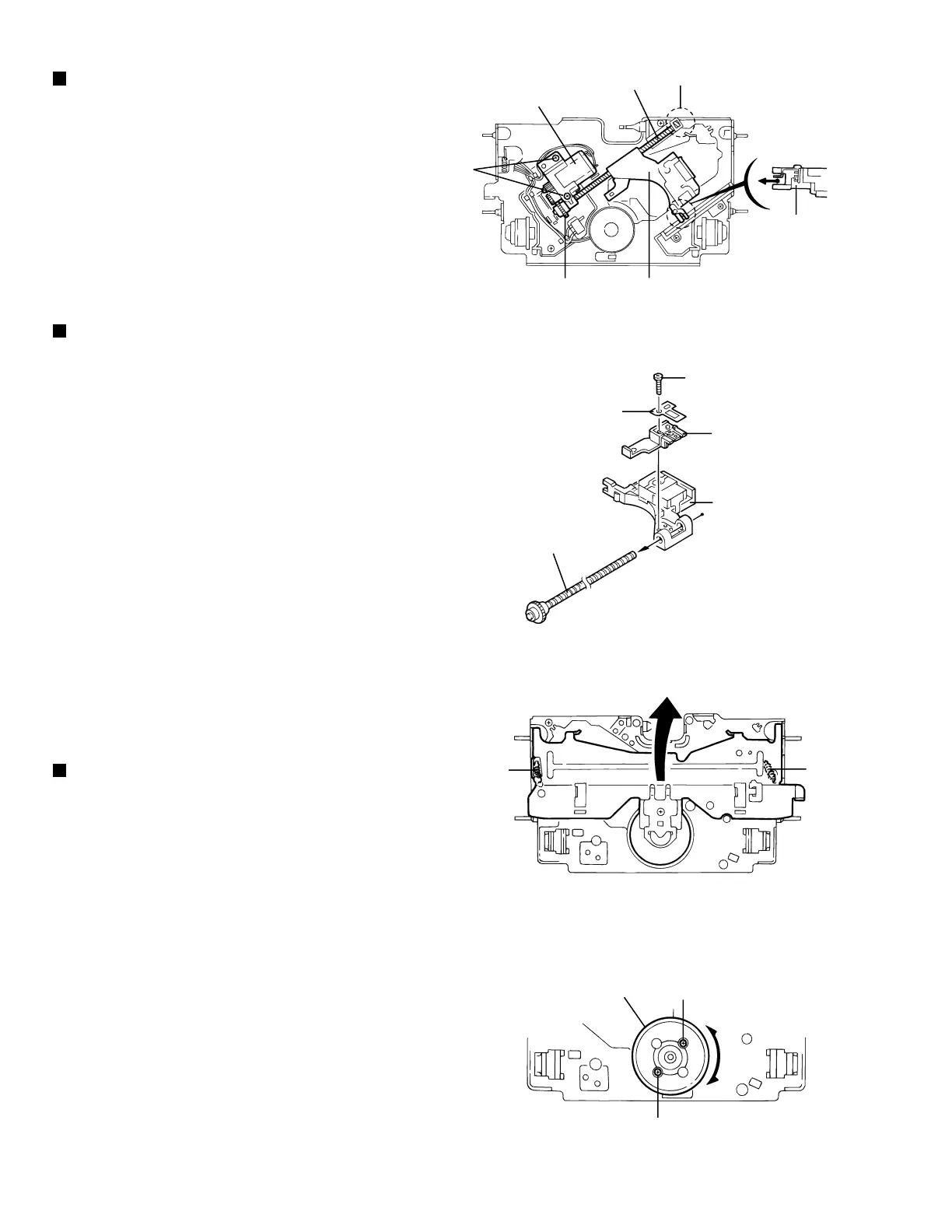

Fig.19
Fig.20
Fig.21
Fig.22
Spindle motor
p
p
Pickup
unit
Part n
FD screw
Feed motor
assembly
FD gear
Pickup unit
Part O
K
Nut push spring plate
Pickup
mount nut
Pickup unit
FD screw
L
M
M
