1-8 (No.49876)

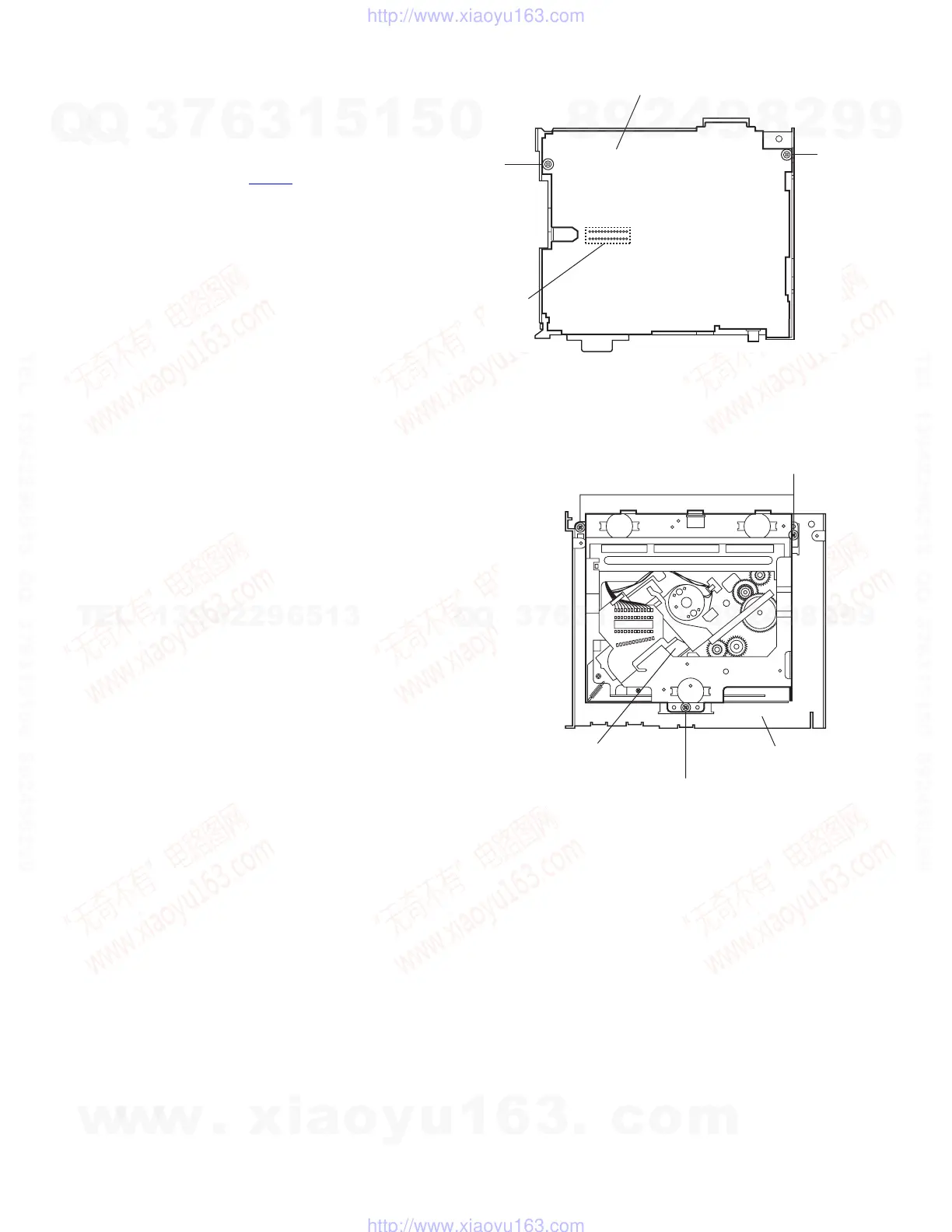

3.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, heat sink, bottom
cover and rear bracket.
(1) Remove the two screws G attaching the main board.
(2) Disconnect the connector CN501
and remove the main
board.
Fig.7
3.1.7 Removing the CD mechanism assembly
(See Fig.8)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, heat sink, bottom
cover, rear bracket and main board.
(1) Remove the three screws H.
Fig.8
Main board assembly
G
G
CN501
H
H
CD mechanism assembly
Top chassis
