3.1.8 Removing the front board

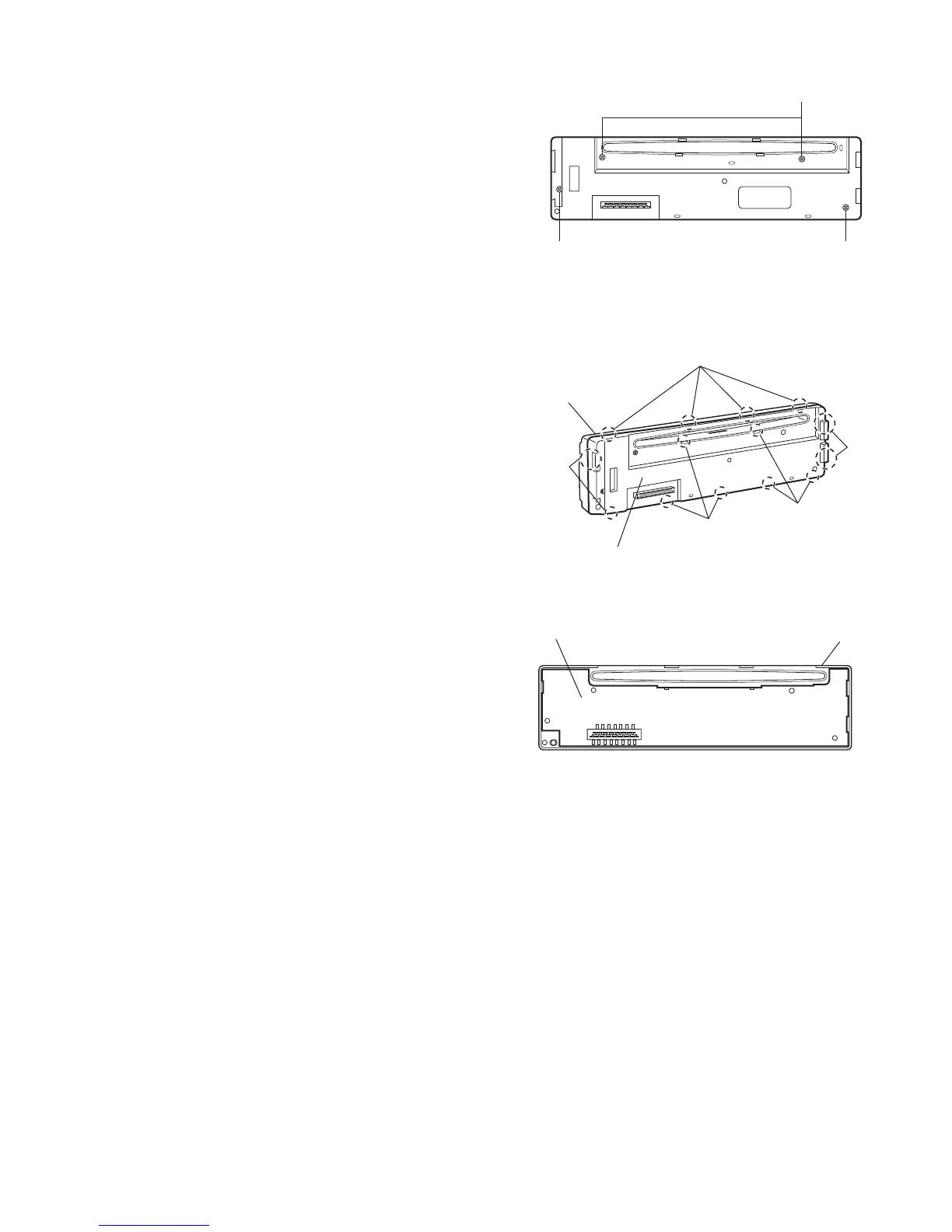

(See Figs.9 to 11)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws J on the back side of the front pan-
el assembly.
(2) Release the fourteen joints g.
(3) Release the joint h and take out the front board.
Fig.9
Fig.10
Fig.11
J
J
J
Joint g
Joint g
Rear cover
Front panel
Joint g
Joint g
Joint g
Front board
Front panel
