JVC KD-SC601 - LOCATION OF THE BUTTONS; Control panel; Display window

ENGLISH
4
KD-SC601

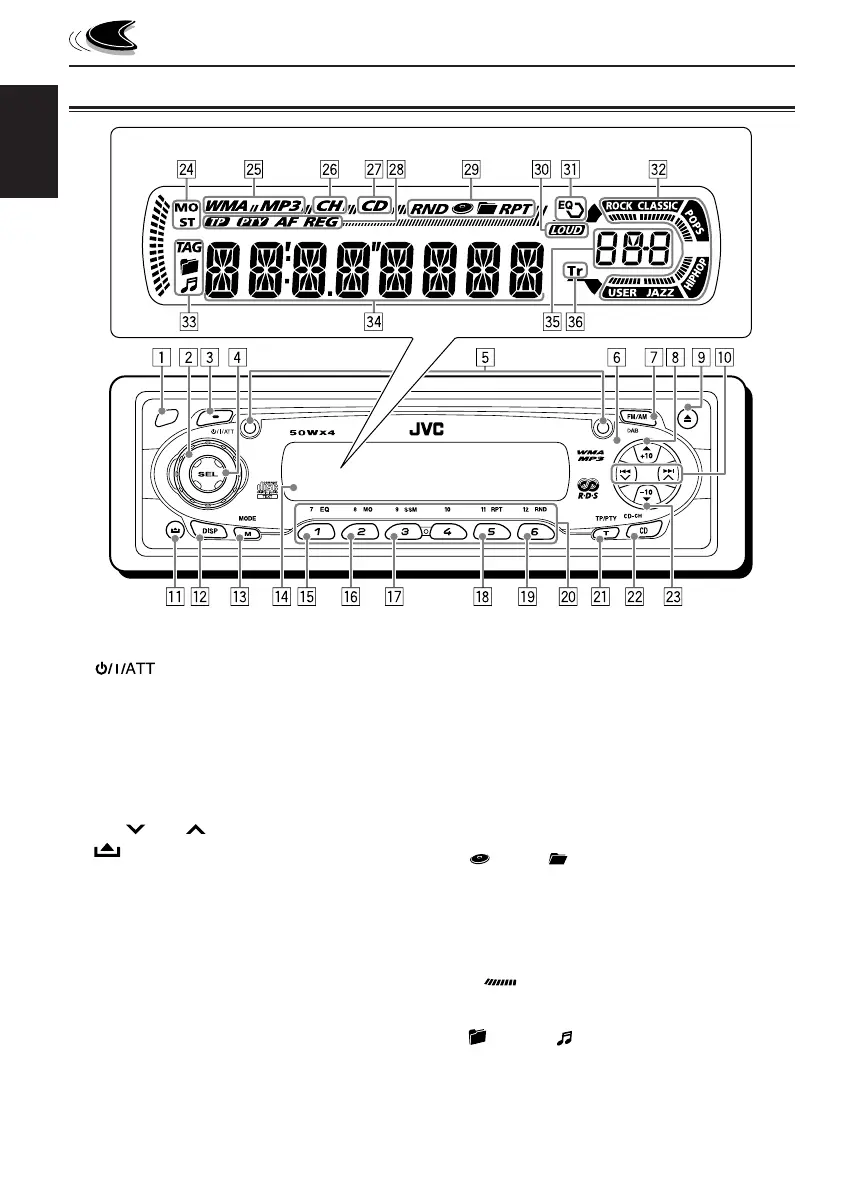

LOCATION OF THE BUTTONS
Control panel
1 Remote sensor
2 Control dial
3 (standby/on/attenuator) button
4 SEL (select) button
5 Screws (M2 × 5 mm)
6 Plate cover and standard plate
7 FM/AM DAB button
8 5 (up) button
+10 button
9 0 (eject) button
p 4 /¢ buttons
q (control panel release) button
w DISP (display) button
e M MODE button
r Display window
t EQ (equalizer) button
y MO (monaural) button
u SSM (Strong-station Sequential Memory) button
i RPT (repeat) button
o RND (random) button
; Number buttons
a T TP/PTY (traffic programme/programme
type) button
s CD CD-CH (CD changer) button
d ∞ (down) button
–10 button
Display window
f Tuner reception indicators—MO (monaural),
ST (stereo)
g Disc type indicators—WMA, MP3
h CH (CD changer) indicator
j CD indicator
k RDS indicators—TP, PTY, AF, REG
l Playback mode/item indicators—RND (random),
(disc), (folder), RPT (repeat)
/ LOUD (loudness) indicator
z EQ (equalizer) indicator
x Sound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS, HIP HOP,
JAZZ, USER
• also works as level meter during play if
the level meter is activated (see page 33).
c Disc information indicators—TAG (ID3 Tag),
(folder), (track/file)
v Main display
b Source display
Volume level indicator
n Tr (track) indicator
Display window
