JVC KD-T401 User Manual

20
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

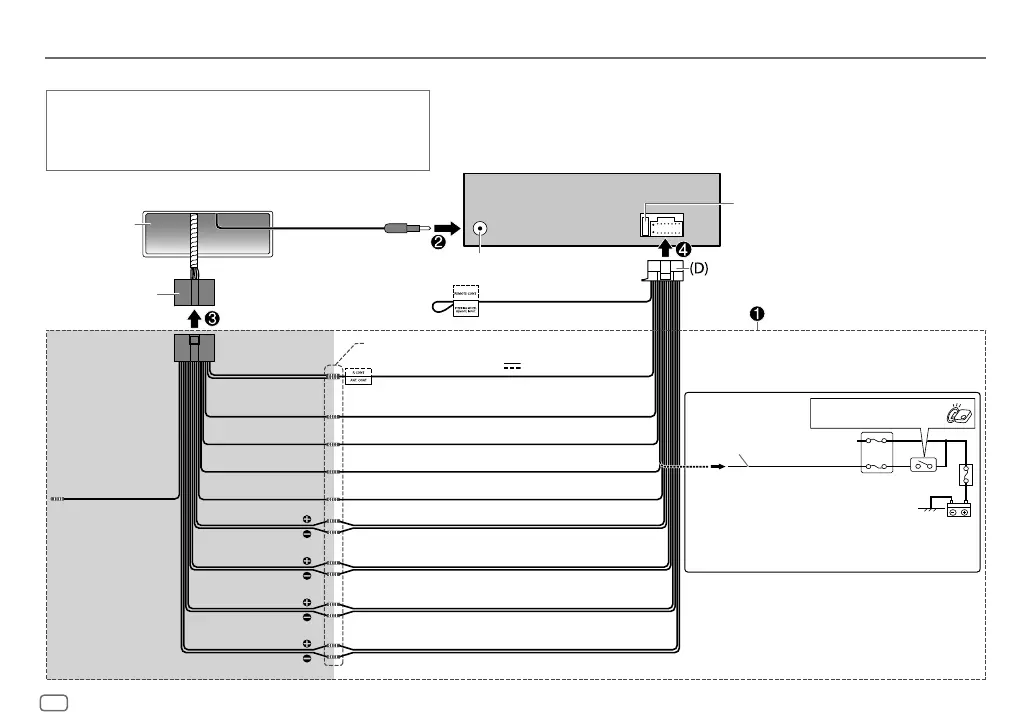

INSTALLATION/CONNECTION
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory wiring harness
does not have “12 V ignition switch” wire.
Separate red wire
Wiring connection
To the steering wheel remote
control adapter
Fuse (10 A)
Antenna terminal
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12 V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12 V
Orange/white: Illumination
Blue/white: Remote (12 V
350 mA)
Brown (not used)
Green: Rear speaker (left)*1
Green/black*1
*1 You can also connect a subwoofer speaker directly using
this lead without an external subwoofer amplifier. For
setting, see page 12.
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended connection
IMPORTANT
We recommend installing the unit with a commercially available custom wiring
harness specific for your car and leave this job to professionals for your safety.
Consult your car audio dealer.
JS_JVC_KD_T408_M_EN_1.indd 20JS_JVC_KD_T408_M_EN_1.indd 20 6/7/2018 11:43:44 AM6/7/2018 11:43:44 AM

JVC KD-T401 Specifications

General

DIN size	1 DIN
CD player	Yes
Output power	200 W
Product color	Black
Ready for iPod	-
High pass filter	No
Disc types supported	CD
Audio output channels	- channels
Equalizer bands quantity	3
Maximum power per channel	50 W
Audio formats supported	FLAC, MP3, WAV, WMA
Display type	LCD
Illumination color	White
USB version	2.0
USB port position	Front
USB connector type	USB Type-A
USB ports quantity	1
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM, LW, MW
Preset stations quantity	24
Package weight	1500 g

Weight and Dimensions

Depth	158 mm
Width	182 mm
Height	53 mm
Weight	1200 g
