12
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

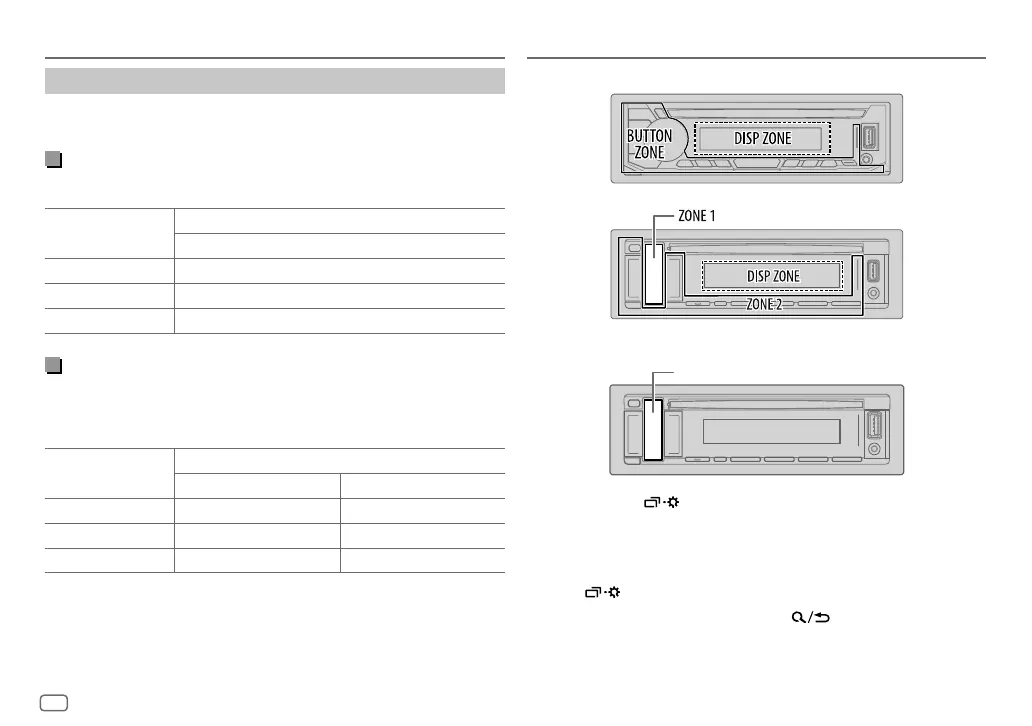

AUDIO SETTINGS
Speaker output settings
[SPK/PRE OUT]
Select the output setting for the speakers
[SPK/PRE OUT]
, based on the speaker
connection method.
Connection via lineout terminals
For connections through an external amplifier. (Page 19)
Setting on
[SPK/PRE OUT]
Audio signal through lineout terminal
REAR/SW
[REAR/REAR] Rear speakers output
[REAR/SUB.W] (default) Subwoofer output
[SUB.W/SUB.W] Subwoofer output
Connection via speaker leads
You can also connect the speakers without using an external amplifier
but still being able to enjoy the subwoofer output with these settings.
(Page 19)
Setting on
[SPK/PRE OUT]
Audio signal through rear speaker lead
L (left) R (right)
[REAR/REAR] Rear speakers output Rear speakers output
[REAR/SUB.W] Rear speakers output Rear speakers output
[SUB.W/SUB.W] Subwoofer output (Mute)
If
[SUB.W/SUB.W]
is selected:
–
[FRQ120HZ]
is selected in
[SUBWOOFERLPF]
and
[FRQTHROUGH]
is not available.
(Page 11)
–
[POSITION R01]
is selected in
[FADER]
and selectable range is
[POSITION R06]
to
[POSITION 00]
. (Page 11)
DISPLAY SETTINGS
Zone identification for brightness settings
Zone identification for color settings
1 Press and hold .
2 Perform ‘Select an item (page3 or 4)’ operation to select an
item (see page13).
3 Repeat step 2 until the desired item is selected/activated or follow the
instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press
.
KD-T401:
KD-T409/
KD-T402:
(Symbolic button)
KD-T401:
Symbolic button
