JVC KD-T900BTS

ENGLISH
41
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

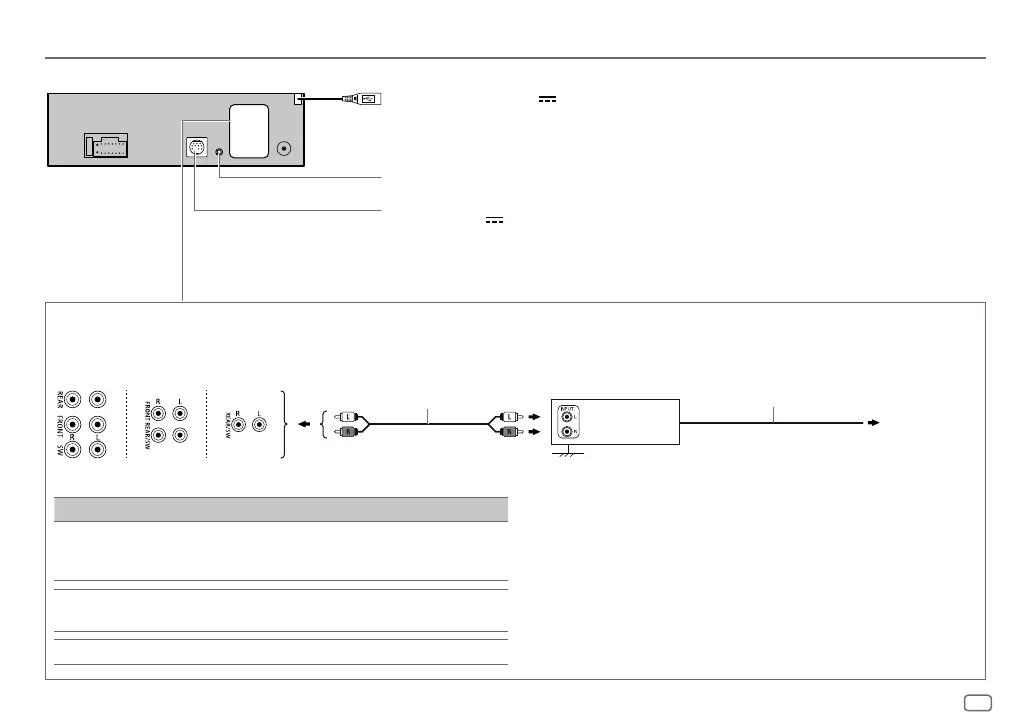

Connecting external components
Microphone input jack (page 15)
KD-T905BTS/KD-T900BTS/KD-T805BTS/KD-TD90BTS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner
(commercially available) (page 12)
Connecting external amplifiers via output terminals
*2 Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the
unit.
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
FRONT :
REAR/SW :
Front output
Rear/subwoofer output
Mid Range output
Woofer output
REAR/SW : Rear/subwoofer output Woofer output
INSTALLATION/CONNECTION
KD-T905BTS: USB cable (DC 5 V 1.5 A) (approx. 1 m/3.3 feet)
KD-T905BTS/
KD-T805BTS
KD-SR85BT
KD-TD90BTS/
KD-T900BTS/
KD-T700BT/
KD-TD70BT
JVC Amplifier*2
Signal cord (not supplied)
To remote lead
(blue/white) of
the wiring harness.
(Page 40)
Remote wire (not supplied)
Output terminals
