JVC KD-X162 Quick Start Guide

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

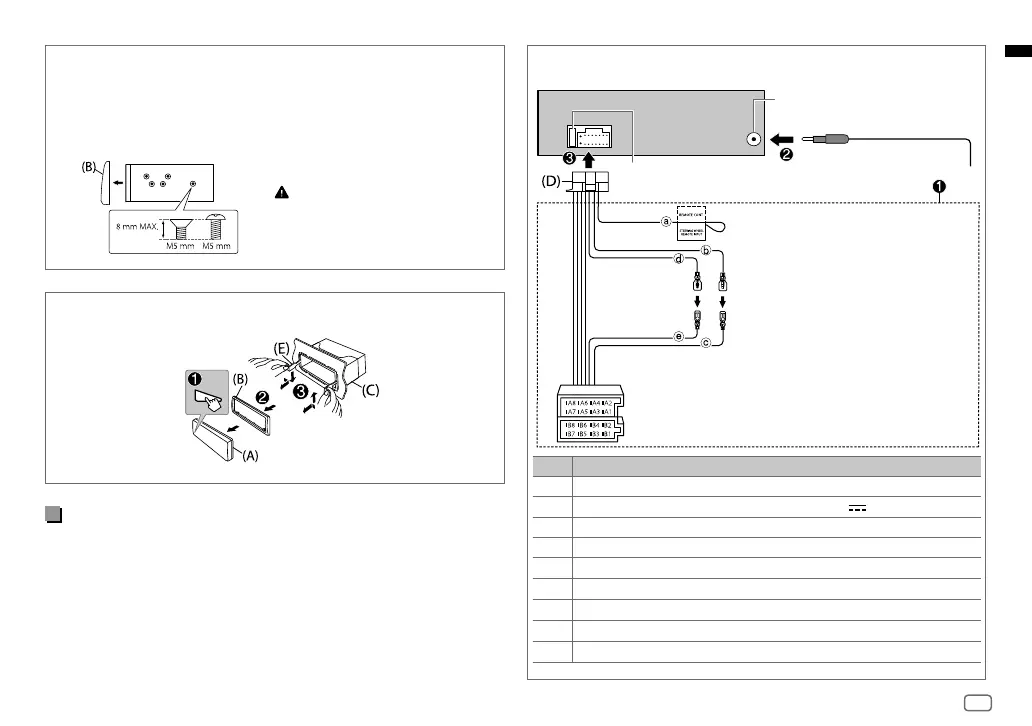

Removing the unit
Installing the unit (without mounting sleeve)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (commercially
available).
Part list (supplied)
(A) Faceplate (×1)
(B) Trimplate (×1)
(C) Mounting sleeve (×1)
(D) Wiring harness (×1)
(E) Extraction key (×2)
Use only the specified screws.
Using wrong screws might damage
the unit.
Wiring connection
Antenna terminal
Fuse (10 A)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1, B2
Purple
] , Purple/black [
: Rear speaker (right)
B3, B4
Gray
] , Gray/black [
: Front speaker (right)
B5, B6
White
] , White/black [
: Front speaker (left)
B7, B8
Green
] , Green/black [
: Rear speaker (left)
a Light blue/yellow: To the
steering wheel remote control
adapter
b Yellow: Battery wire
c Yellow: A4
d Red: Ignition wire
e Red: A7
ISO connectors
JS_JVC_QSG_KD_X262_E_EN_int1.indd 3JS_JVC_QSG_KD_X262_E_EN_int1.indd 3 6/14/2018 2:59:46 PM6/14/2018 2:59:46 PM

JVC KD-X162 Specifications

General

DIN size	1 DIN
CD player	No
Impedance	75 Ω
Clock mode	12h/24h
Output power	200 W
RDS features	AF, CT, PS, PTY, PTY1, REG, RT, TI
Product color	Black
Volume control	Rotary
Frequency range	20 - 20000 Hz
Low pass filter	Yes
Audio output channels	4.1 channels
Equalizer bands quantity	3
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Mobile operating systems supported	Android 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.1, Android 7.1.2
USB version	2.0
USB port position	Front
USB connector type	USB Type-A
USB ports quantity	1
Headphone connectivity	3.5mm
Audio formats supported	FLAC, MP3, PCM, WAV, WMA
Display type	LCD
Illumination color	White
Display number of lines	2 lines
On Screen Display (OSD) languages	ENG, ESP, RUS
Storage temperature (T-T)	-30 - 85 °C
Operating temperature (T-T)	-10 - 60 °C
Security features	Removable front
File format system	FAT 12/16/32
Key illumination color	Red
Package weight	900 g

Weight and Dimensions

Depth	100 mm
Width	182 mm
Height	53 mm
Weight	600 g
