INSTALLATION/CONNECTION
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory
wiring harness does not have “12 V ignition
switch” wire.
Separate red wire

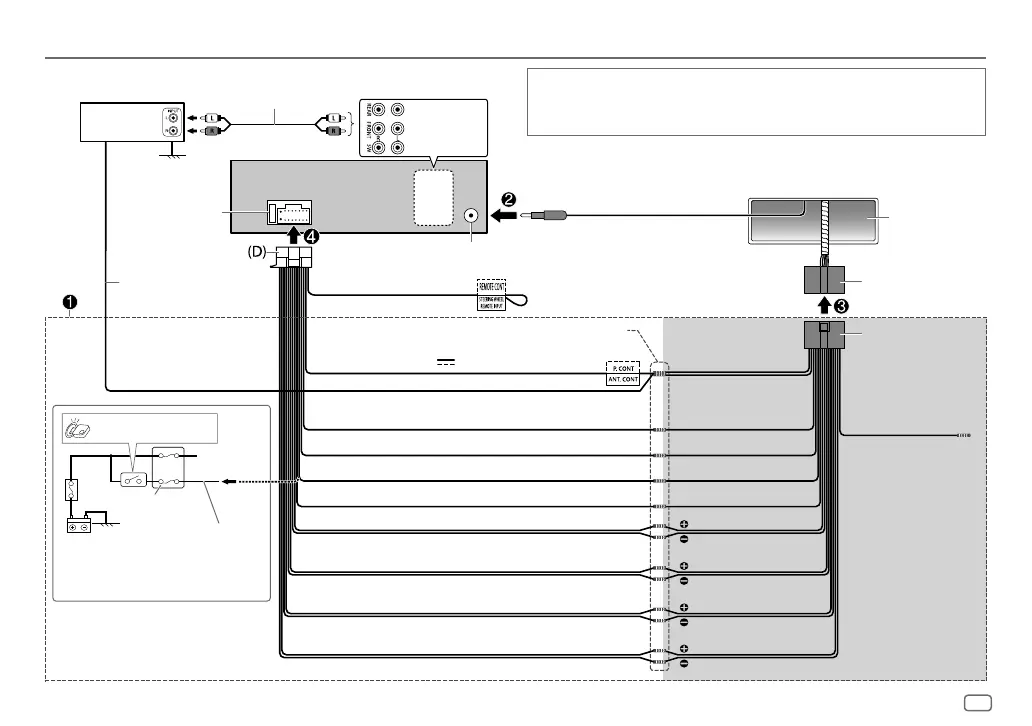

Wiring connection
To the steering wheel remote control adapter
Fuse (10 A)
Antenna terminal
Output
terminals
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12 V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12 V
Orange/white: Illumination
Blue/white: Remote (12 V
350 mA)
Brown (not used)
Green: Rear speaker (left)*2
Green/black*2
*2 You can also connect a subwoofer speaker
directly using this lead without an external
subwoofer amplifier. For setting, see
page 11.
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended
connection
IMPORTANT
We recommend installing the unit with a commercially available custom wiring harness specific
for your car and leave this job to professionals for your safety. Consult your car audio dealer.
*1 Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
JVC Amplifier*1
Signal cord (not supplied)
Remote wire
(not supplied)
