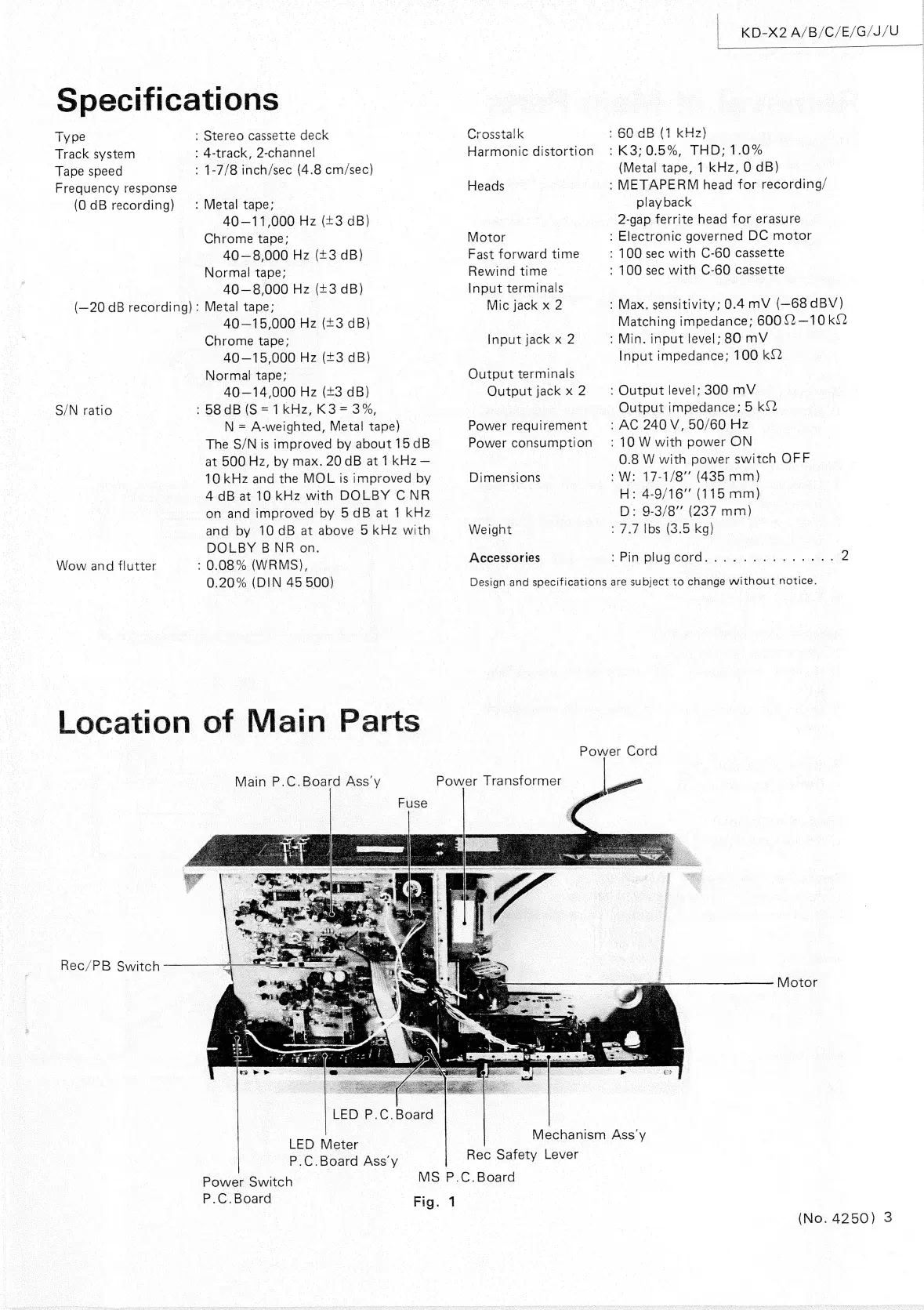

Specifications
Type
Track system
Tape speed
Frequency response
(0 dB recording)
(—20 dB recording) :
S/N ratio
Wow and flutter
: Stereo cassette deck
: 4-track, 2-channel
: 1-7/8 inch/sec (4.8 cm/sec)
: Metal tape;
40—11,000 Hz (+3 dB)
Chrome tape;
40—8,000 Hz (+3 dB)
Normal tape;
40—8,000 Hz (+3 dB)
Metal tape;
40—15,000 Hz (+3 dB)
Chrome tape;
40—15,000 Hz (+3 dB)
Normal tape;
40—14,000 Hz (+3 dB)
: 58 dB(S= TKHZ,K3-=:3:%,;
N = A-weighted, Metal tape)
The S/N is improved by about 15 dB
at 500 Hz, by max. 20 dB at 1 kHz —
10 kHz and the MOL is improved by
4 dB at 10 kHz with DOLBY CNR
on and improved by 5dB at 1 kHz
and by 10 dB at above 5 kHz with
DOLBY BNR on.
: 0.08% (WRMS),
0.20% (DIN 45 500)
Location of Main Parts
Rec/PB Switch
Main P.C.Board Ass’y
Fuse
LED P.C.Board
Crosstalk
Harmonic distortion
Heads
Motor
Fast forward time
Rewind time
Input terminals
Mic jack x 2
Input jack x 2
Output terminals
Output jack x 2
Power requirement
Power consumption
Dimensions
Weight
Accessories
KD-X2 A/B/C/E/G/J/U
- 60 dB (1 kHz)
-K3:0.5%, THD; 1.0%
(Metal tape, 1 kHz, O dB)
- METAPERM head for recording/
play back
2-gap ferrite head for erasure
: Electronic governed DC motor
- 100 sec with C-60 cassette
‘ 100 sec with C-60 cassette
: Max. sensitivity; 0.4 mV (—68 dBV)
Matching impedance; 600 £2 —10 k&2
; Min. input level: 80 mV
Input impedance; 100 k&Q2
: Output level: 300 mV
Output impedance; 5 kQ
-: AC 240 V, 50/60 Hz
: 10 W with power ON
0.8 W with power switch OFF
We 7-1/8" (4385:mm)
H: 4-9/16”" (115 mm)
D: 9-3/8" (237 mm)
77 lbs: (3.5 kg}
Pine plug cord orcseeelieits ete Ns 2
Design and specifications are subject to change without notice.
Power Cord
Power Transformer
Motor
Mechanism Ass’y
LED Meter
P.C.Board
Ass‘y
Rec
Safety
Lever
Power
Switch
MS
P.C.Board
P.C.Board
Fig
4
