JVC KD-X352BT User Manual

ENGLISH
31
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION/CONNECTION
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.

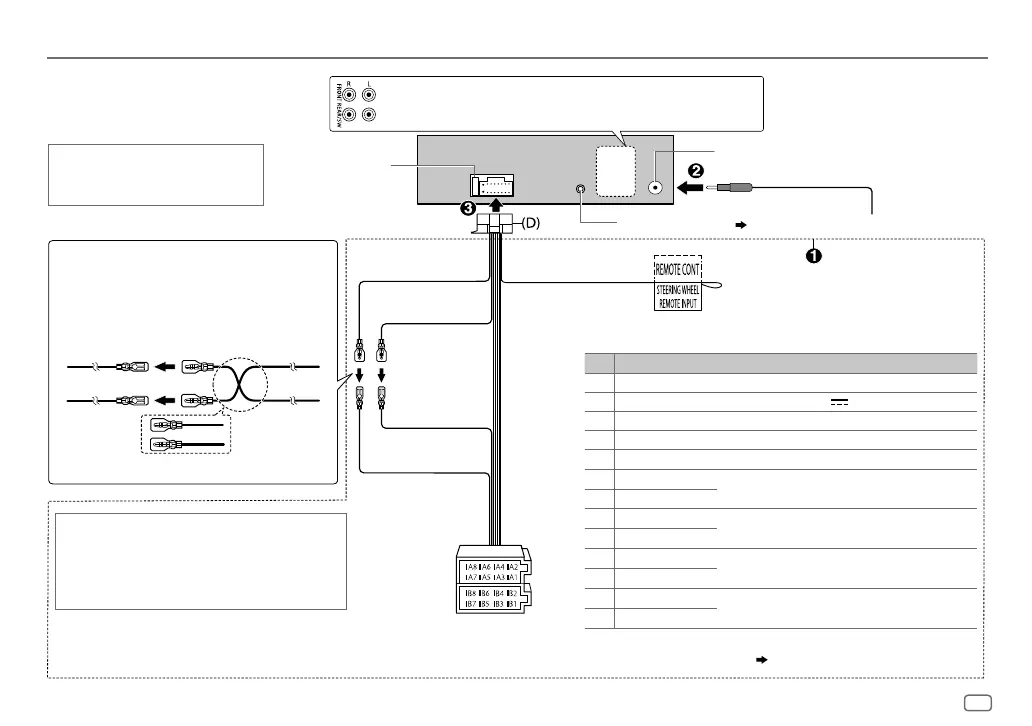

Wiring connection
Fuse (10A)
Microphone input jack
( 10)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12V
350mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
Unit
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
*
You can also connect a subwoofer speaker directly without an external
subwoofer amplifier. For setting,
20 .
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult
your car audio dealer.
Red (Ignition wire)
Front output/3-way crossover: Mid range output
Rear/subwoofer output/3-way crossover: Woofer output
JS_JVC_KD_X352BT_E_EN_2.indd 31JS_JVC_KD_X352BT_E_EN_2.indd 31 7/24/2017 2:55:42 PM7/24/2017 2:55:42 PM

JVC KD-X352BT Specifications

General

Audio system	MOS-FET
MP3 playback	Yes
CD-R playback	No
Audio formats supported	FLAC, MP3, WAV, WMA
DIN size	1 DIN
Output power	350 W
Product color	Black
Volume control	Rotary
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	24
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP
Display type	LCD
Illumination color	White
Key illumination color	Red
Package weight	1000 g

Weight and Dimensions

Depth	53 mm
Width	182 mm
Height	100 mm
Weight	600 g
