Connecting external components
INSTALLATION/CONNECTION
Microphone input jack (page 13)

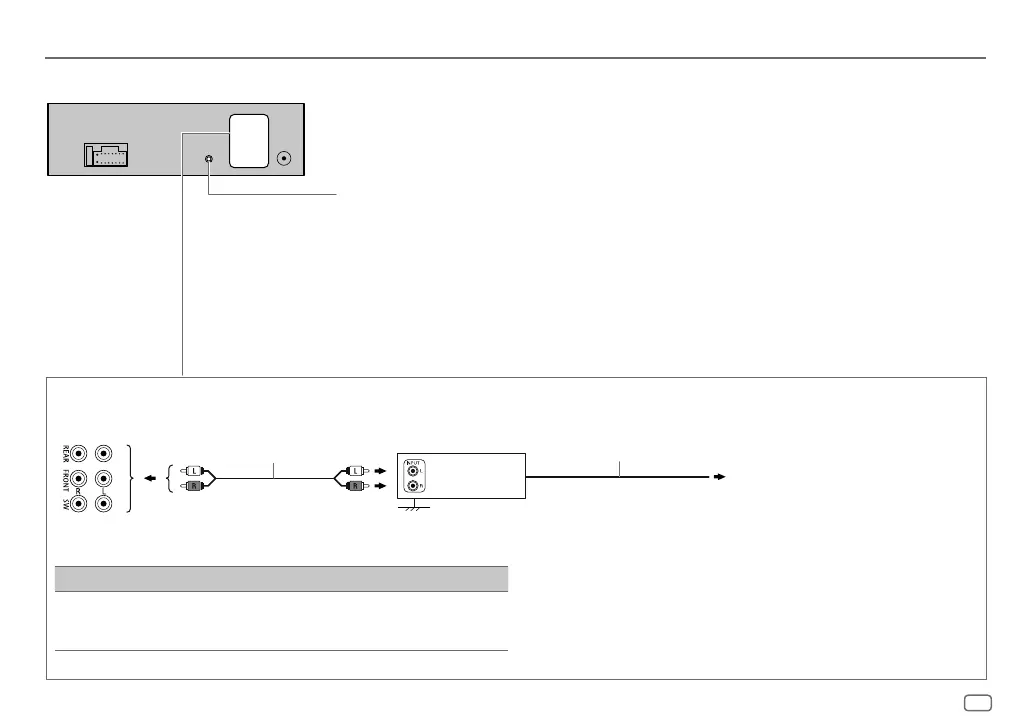

Connecting external amplifiers via output terminals
*2 Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the
unit.
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
JVC Amplifier*2
Signal cord (not supplied)
To remote lead (blue/white) of
the wiring harness. (Page 36)
Remote wire (not supplied)
Output terminals
