KS-F383R,KS-F380R
1-10 (No.49813)

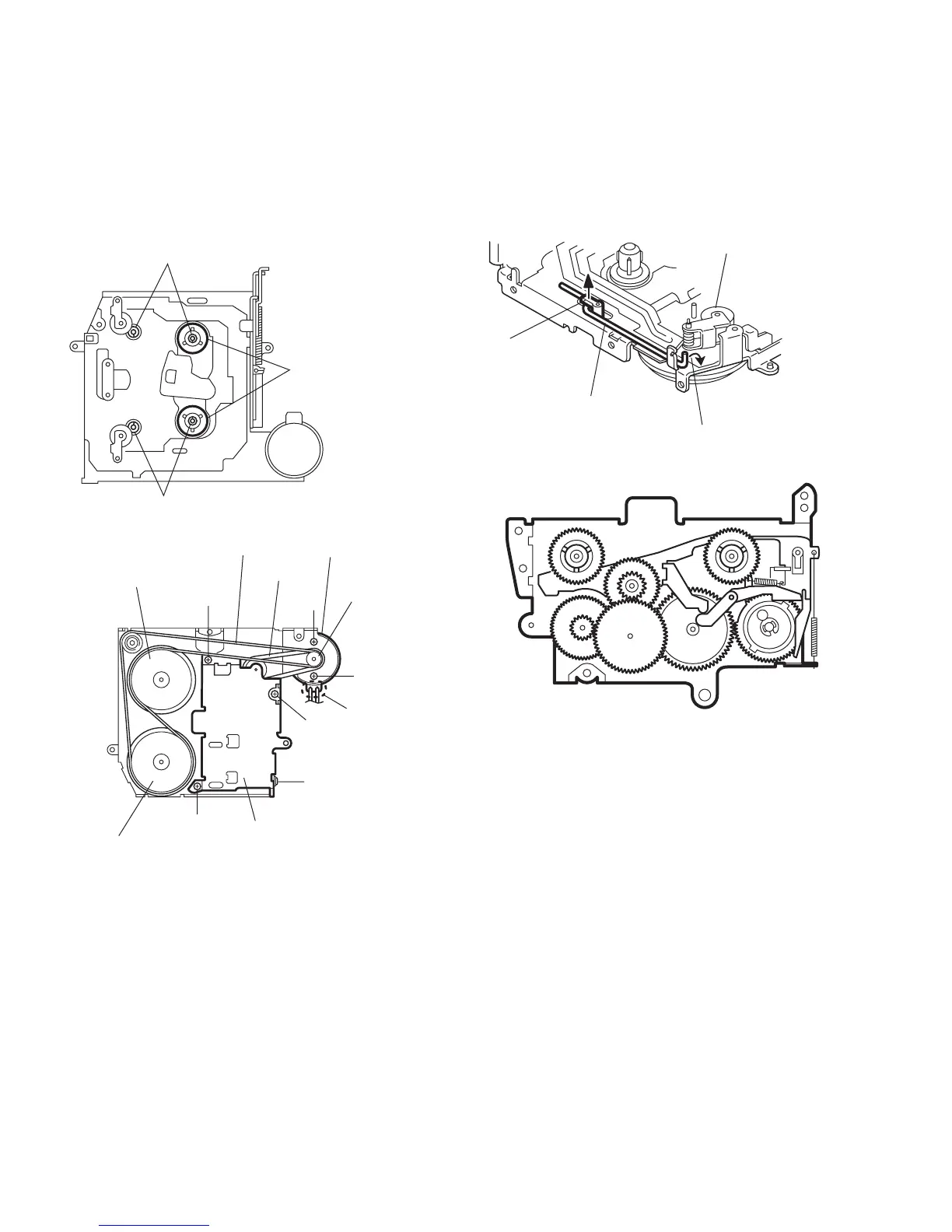

2.2.9 Removing the Flywheel (BF) and (BR) assembly
(See Fig.4 and 5)
• Prior to performing the following procedure, remove the cas-
sette hanger / cassette holder.
(1) From the upper side of the cassette mechanism assembly,
remove the C washer from each shaft of the flywheel (BF)
and (BR).
(2) Turn over the cassette mechanism assembly and remove
the main belt. Pull out the flywheel (BF) and (BR) down-
ward respectively.
Fig.4
Fig.5
2.2.10 Removing the reel base assembly
(See Fig.5 and 6)
(1) Raise the part k of the reel base assembly slightly and re-
move the selector link (B) on the front side of the cassette
mechanism assembly by turning it as shown in Fig.6.
(2) Remove the three screws E and the one screw F on the
underside of the cassette mechanism assembly.
ATTENTION:
The reel base assembly is not repairable. Handle with care.
Fig.6
Fig.7
Reel disc assembly
C washer
C washer
Flywheel (BF)
Flywheel (BR)
E
E
E
F
G
G
Main-belt
Reel base assembly
Sub-belt
Motor assembly
Motor pulley
Soldering j
Selector link (B).
Pinch-roller (R) assembly
Turn the selector link (B).
k
Inside of the reel base assembly
