KS-FX201
1-10
Raise the part k of the reel base assembly slightly
and remove the selector link (B) on the front side of
the cassette mechanism assembly by turning it as
shown in Fig.10.
Remove the three screws E and the one screw F
on the underside of the cassette mechanism
assembly.
1.
2.

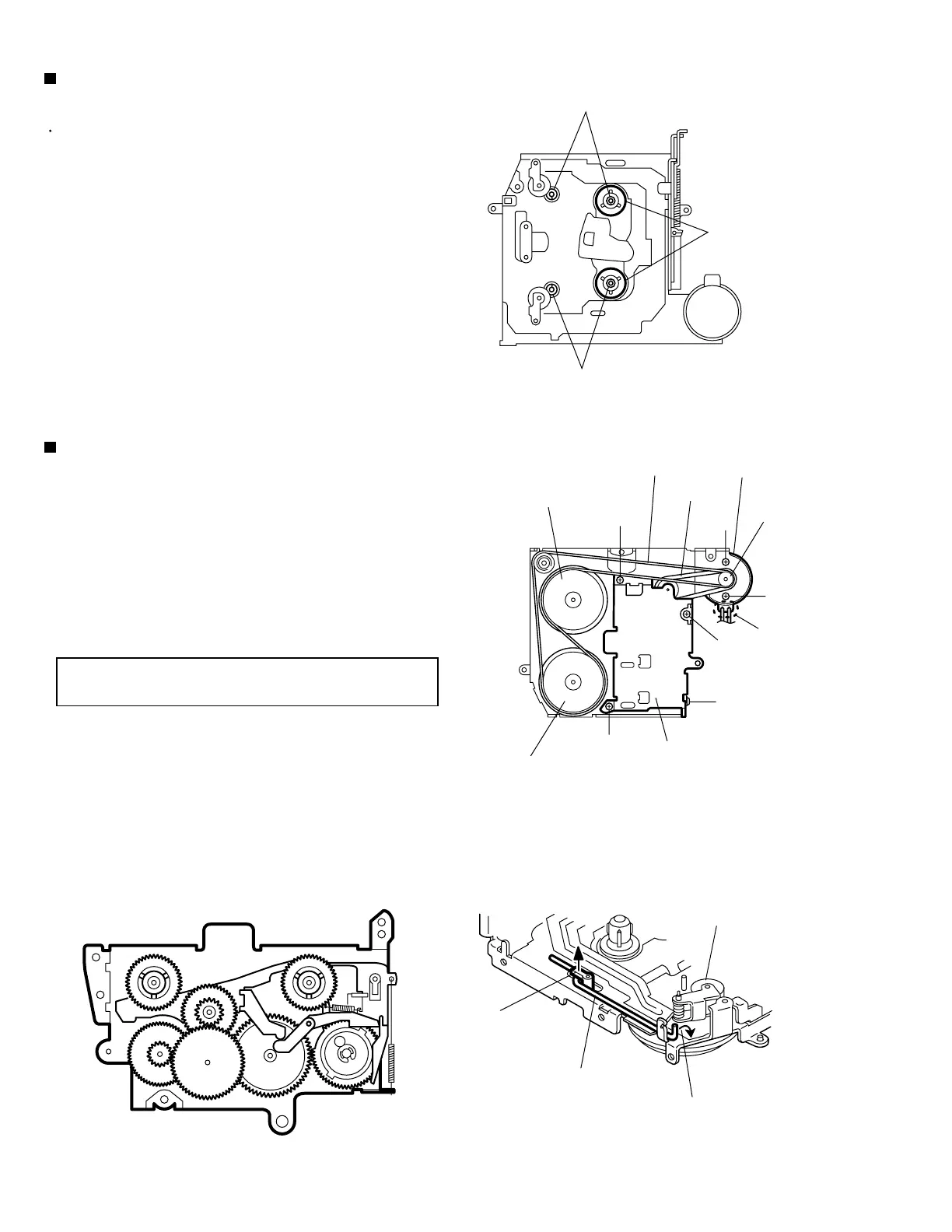

Removing the reel base assembly
(See Fig.5 and 6)
Prior to performing the following procedure, remove
the cassette hanger / cassette holder.
From the upper side of the cassette mechanism
assembly, remove the C washer from each shaft of
the flywheel (BF) and (BR).
Turn over the cassette mechanism assembly and
remove the main belt. Pull out the flywheel (BF) and
(BR) downward respectively.
1.
2.
Removing the Flywheel (BF) and (BR)
assembly (See Fig.4 and 5)
The reel base assembly is not
repairable. Handle with care.
ATTENTION:
Selector link (B).
Inside of the reel base assembly
Reel disc assembly
Flywheel (BF)
Flywheel (BR)
E
E
E
F
G
G
Main-belt
Reel base assembly
Sub-belt
Motor assembly
Motor pulley
Solding j
Fig.4
Fig.5
Fig.6Fig.7
C washer
C washer
Pinch-roller (R) assembly
Turn the selector link (B).
k
