KS-FX202
1-3
Fig. 3
d
Front chassis
a
a

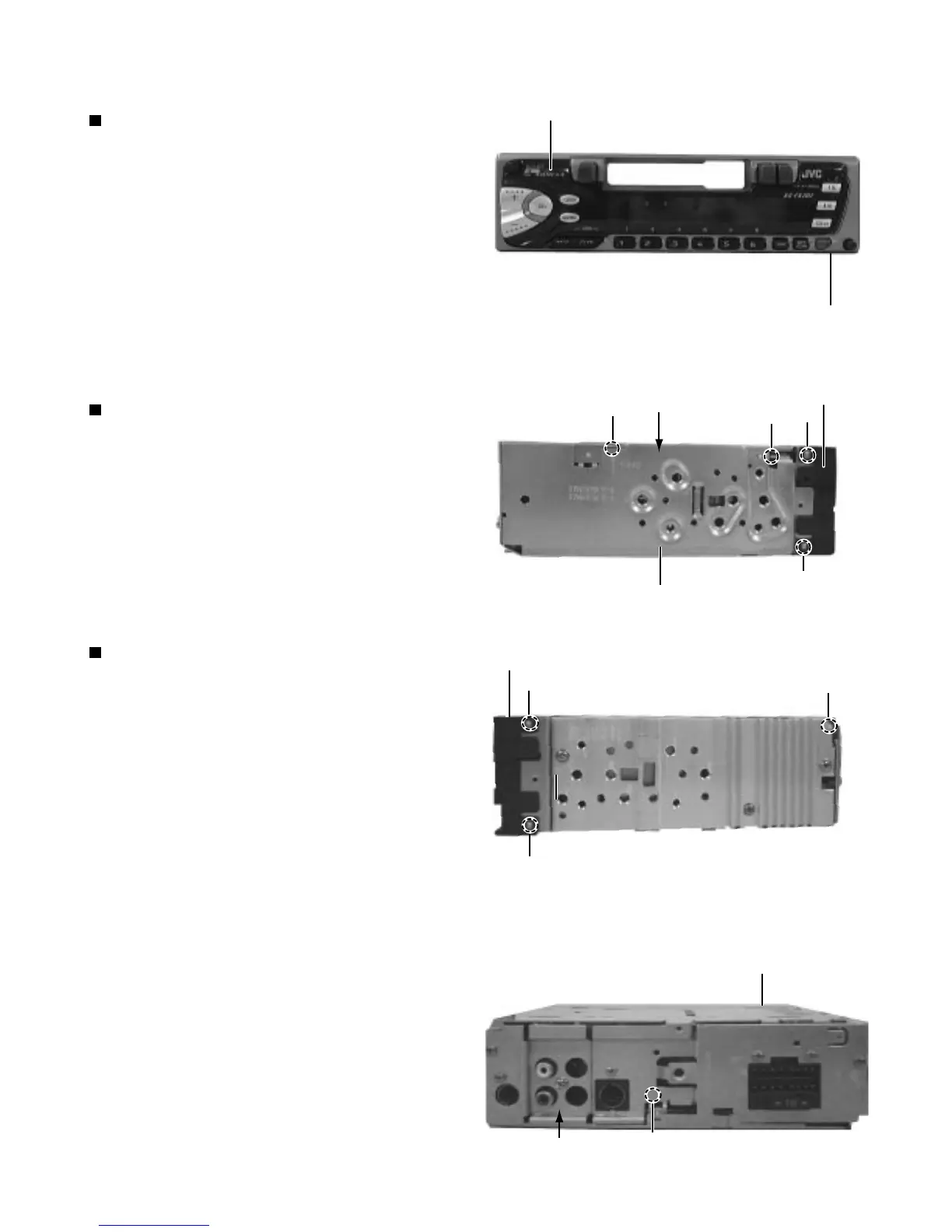

Disassembly method
Detaching the front panel unit
( See Fig.1 )
Push the Release button in the direction of arrow to
detach the front panel unit.
Removing the front chassis
( See Fig. 2 and 3 )
Disengage the four tabs ( a ) in the right and left sides of
unit and pull the front chassis forward to remove it.
Removing the bottom cover
( See Fig. 2 to 4 )
1. Removie the front chassis.
2. Turn the unit up side down.
3. Insert the screwdriver to the four engagements
( b, c, d, f ) .
4. Turn the screwdriver and remove the bottom
cover.
Fig. 1
Push the release button
Front panel unit
a
a
Fig. 2
Top chassis
Front chassis
Bottom cover
b
c
Fig. 4
f
Bottom cover
Rear panel
