KS-FX230
1-10
< Information for using a Car Stereo service jig (for adjustment and checking) >
For 1995 and 1996,we're advancing efforts to make our extension cords common for all Car Stereo products.
Please use this type of extension cord as follows.
As a U shape type top cover is employed,this type of extension cord is needed to check operation of the
mechanism assembly after disassembly.
Extension cords
Disassembly method (Refer to method to remove main parts)

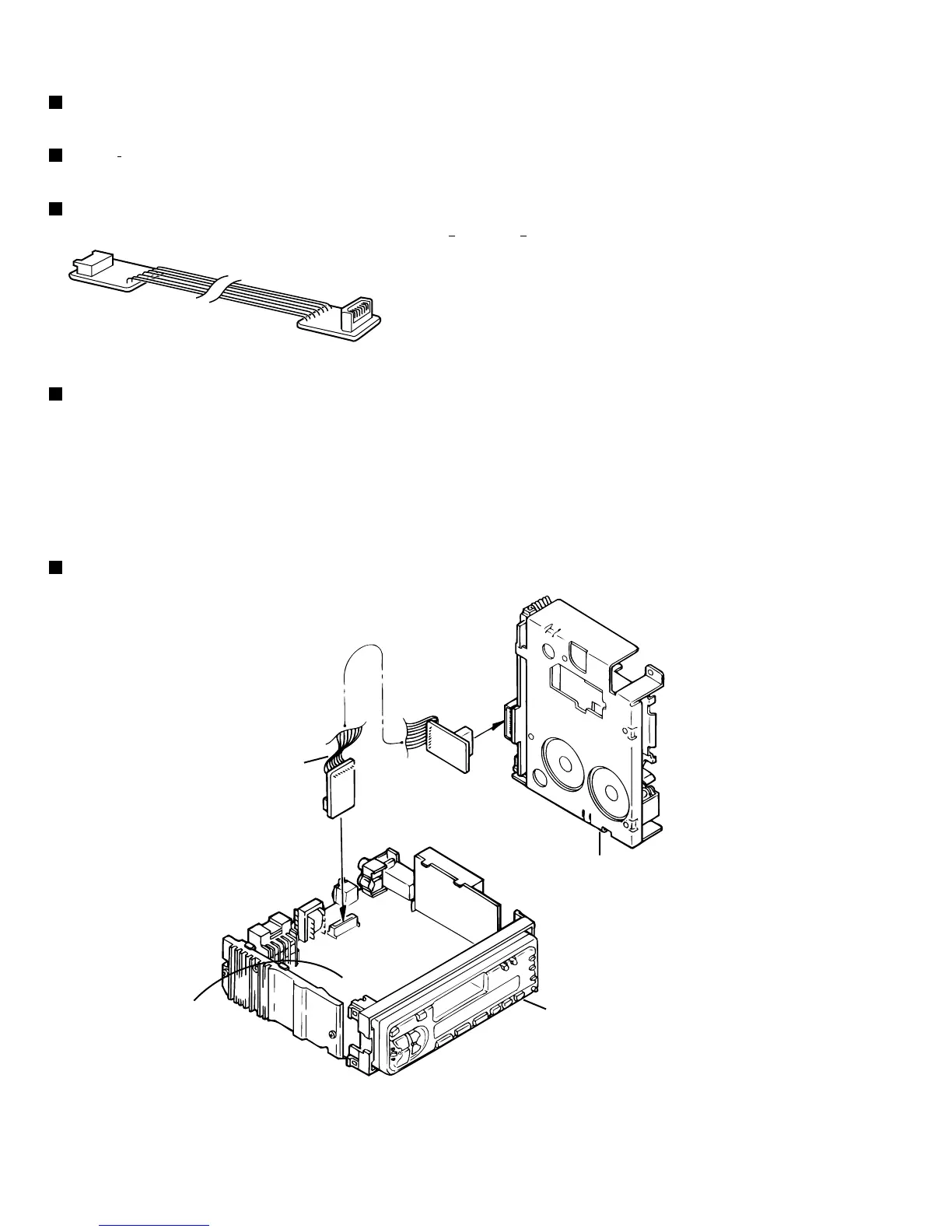

Connection diagram
EXT KSRT002 18P (18 pin extension cord)
For connection between mechanism assembly and main
PCB assembly.
Check for mechanism-driving section such as motor, etc.
Remove the bottom cover.
Remove the front panel assembly.
Remove the top cover. (Remove the screws at each side of heat sink and rear panel.)
Install the front panel (whose assembly was removed in step 2) to the main unit.
Confirm that current is being carried by connecting an extension cord jig.
1.
2.
3.
4.
5.
Extension cord
Mechanism assembly
Front panel assembly
KS-FX230/KS-F130
Main board assembly
Available to connect to the CN701 connector
when installing the front panel.
