Remove the head relay board.
Remove the load arm ass'y.
Remove the cassette holder and holder arm ass'y.
Remove the sub chassis ass'y.
Disengage the spring holding the play head down.
Remove the two screws E securing the play head.

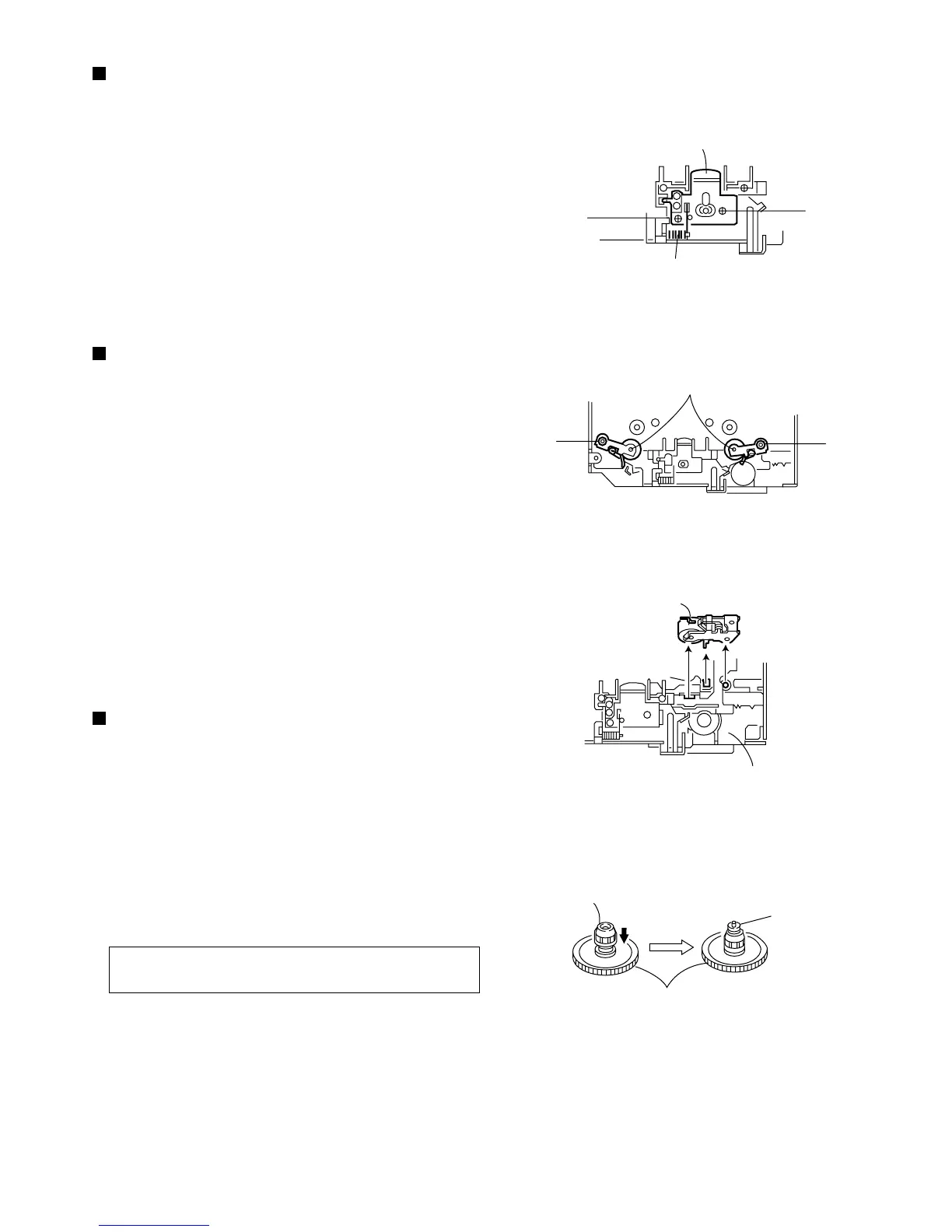

Removing the play head (see Fig.4)
Removing the pinch roller ass'y (see Fig.5,6)
Removing the reel disk ass'y (see Fig.7)
6. Pull out the pinch rollers.
1.
2.
3.
4.
5.
Remove the head relay board.
Remove the load arm ass'y.
Remove the cassette holder and holder arm ass'y.
Remove the sub chassis ass'y.
Detach the mylar washers c at the two positions
securing the right and left pinch roller ass'y.
1.
2.
3.
4.
5.
Remove the head relay board.
Remove the load arm ass'y.
Remove the cassette holder and holder arm ass'y.
Remove the sub chassis ass'y.
Detach the mylar washer d from the tip by first
pressing down the reel feather to expose it.
NOTE : When reassembling, be sure to use a new
mylar washer
NOTE : When reassembling, be sure to use new
mylar washers. Also, make sure that grease
is not adhering to the pinch rollers.
Play head
Spring
Fig.4
Pinch roller ass'y
Fig.5
Sub chassis
Pinch roller ass'y
Fig.6
Fig.7
Reel feather
push
Reel disk ass'y
E
c
E
c
d
