KS-F171
1-14 (No.49774)

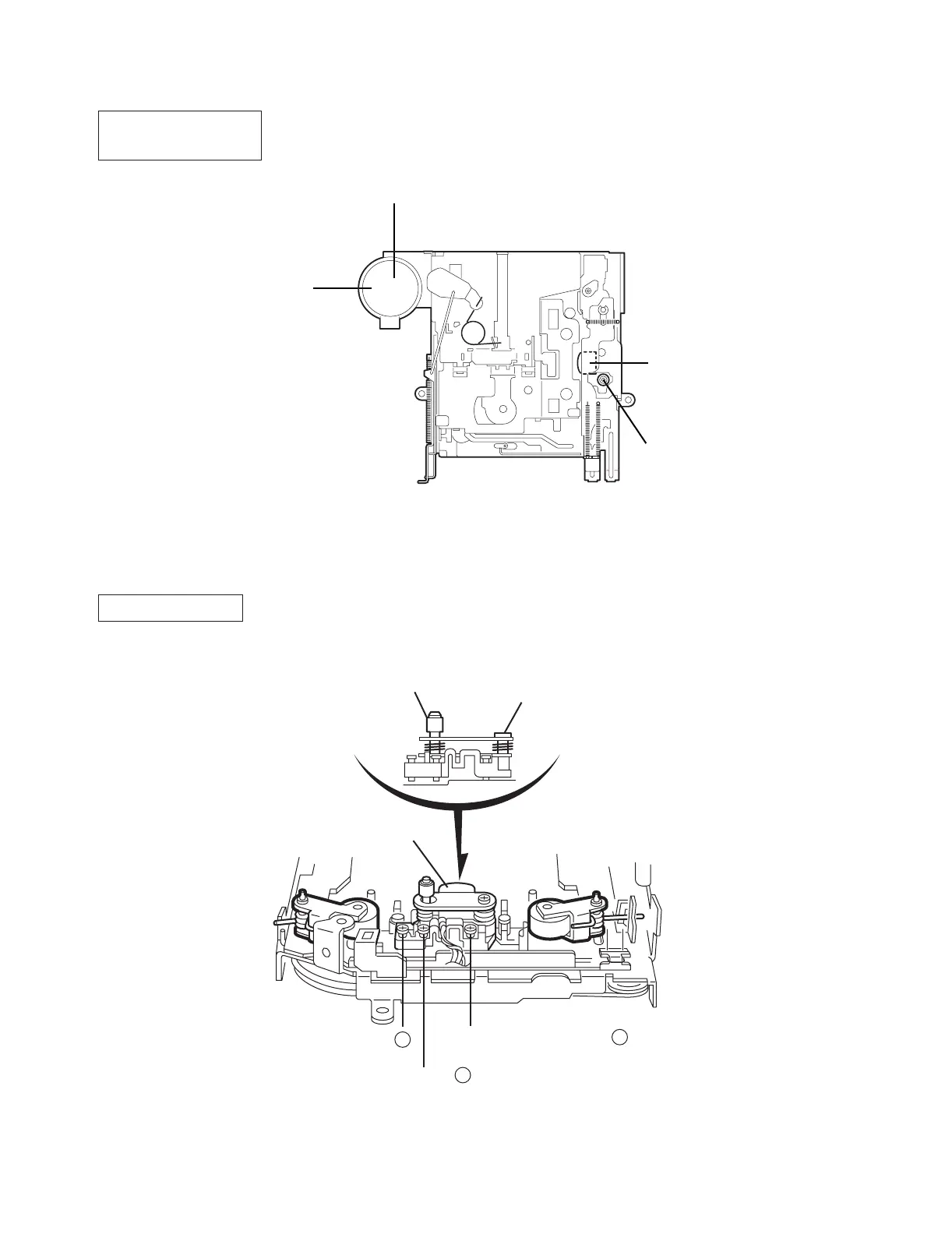

Head section view
Head azimuth screw
Cassette mechanism
(Surface)
Tape speed adjust
Motor assembly
Fixed screw
Height adjusting screw
c
Height adjusting screw
b
Height adjusting screw
a
Playback head
Playback head
Azimuth screw
î
Arrangement of adjusting & test points
13
15
Table of Contents
SECTION 1
2
1.1 Safety Precautions
2
SECTION 2
3
2.1 Main body
3
2.1.1 Removing the front panel assembly (See Fig.
3
2.1.2 Removing the bottom cover (See Fig.
3
2.1.3 Removing the front chassis (See Fig.
3
2.1.4 Removing the heat sink (See Fig.
4
2.1.5 Removing the rear panel (See Fig.
4
2.1.6 Removing the main board (See Fig.
4
2.1.7 Removing the cassette mechanism assembly (See Fig.
5
2.1.8 Removing the head amplifier board (See Fig.
5
2.1.9 Removing the relay board (See Fig.
6
2.1.10 Removing the mecha bracket (See Fig.
6
2.1.11 Removing the switch (LCD & key) board (See Fig.
7
2.2 Cassette mechanism assembly
8
2.2.1 Removing the direction switch board (See Fig.
8
2.2.2 Removing the FF / REW lever assembly (See Fig.
8
2.2.3 Reattaching the FF / REW lever assembly (See Fig.
8
2.2.4 Removing the playback head (See Fig.
8
2.2.5 Removing the pinch-roller (R) and (F) assembly (See Fig.
8
2.2.6 Removing the cassette hanger / cassette holder (See Fig.
9
2.2.7 Removing the reel disc assembly (See Fig.
9
2.2.8 Removing the motor assembly (See Fig.
9
2.2.9 Removing the Flywheel (BF) and (BR) assembly (See Fig.
10
2.2.10 Removing the reel base assembly (See Fig.
10
2.2.11 Removing the mute switch board (See Fig.
11
2.2.12 Removing the power switch (See Fig.
11
SECTION 3
12
SECTION 4
16
4.1 LC75823W (IC651) : LCD driver
16
4.2 LC72362N-9B39 (IC701) : Micon
17
4.3 LC75421M-X (IC931): E. volume
18
4.4 LA4743K (IC981) : Power amp.
20
4.5 AN80T05LF (IC781) : Regulator
22
4.6 UPC1228HA (IC901) : Head amp
22
