2.1.9 Removing the relay board
(See Fig.9)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis, heat sink, rear
panel, main board and cassette mechanism assembly.
(1) Disconnect the wire from CP722 on the relay board.
(2) Remove the one screw K attaching the relay board.
(3) Move the relay board in the direction of the arrow to release
the joint g, the relay board can be removed.

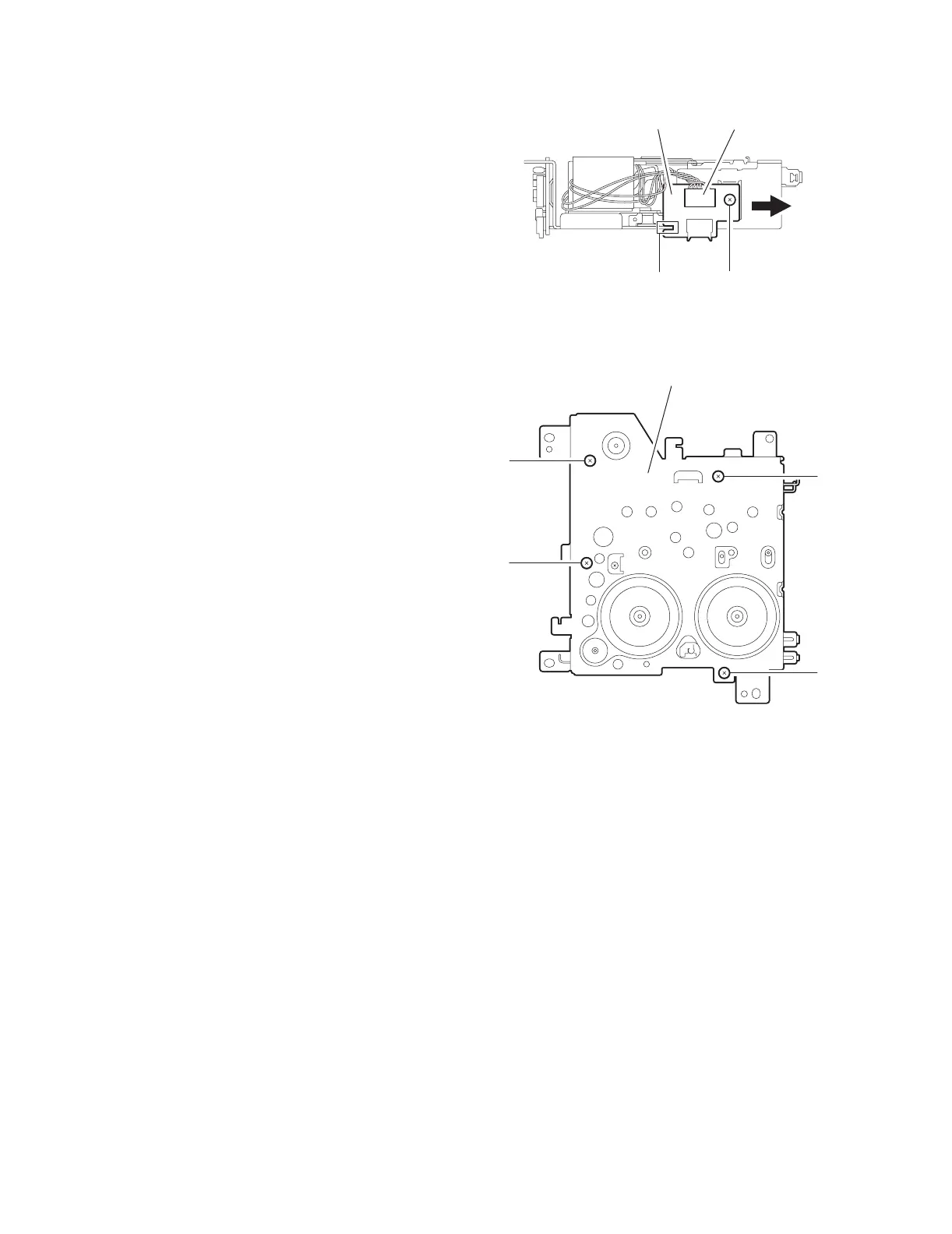

Fig.9
2.1.10 Removing the mecha bracket
(See Fig.10)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis, heat sink, rear
panel, main board, cassette mechanism assembly, head am-
plifier board and relay board.
(1) Remove the four screws L attaching the mecha bracket.
Fig.10
joint g
K
CP722
Relay board
Mecha bracket
L
L
L
L
