KS-FX460R/KS-FX463R
1-14
Playback head
Head azimuth scre
w
Fix
ed screw
Height adjusting screw c
Height adjusting screw b
Height adjusting screw a

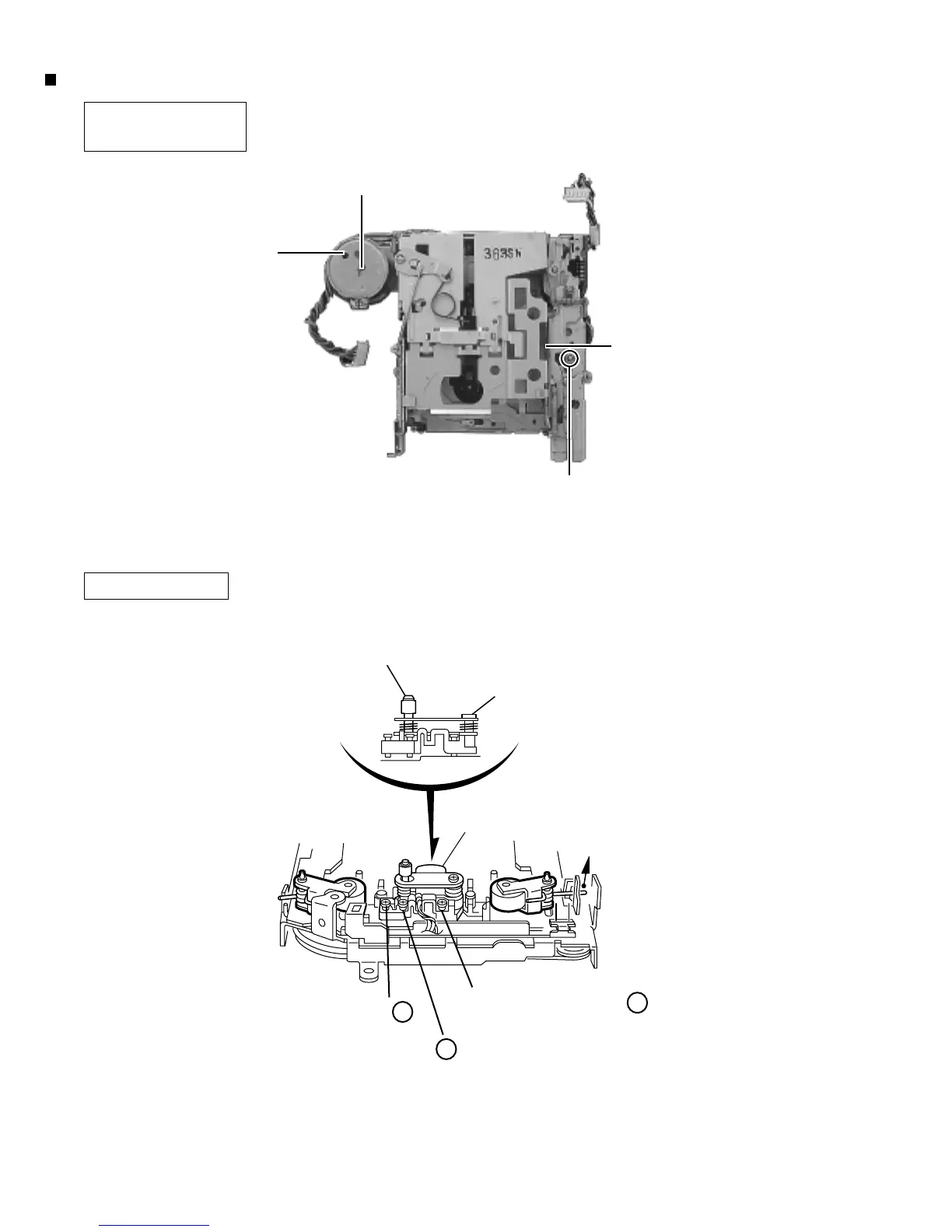

Arrangement of adjusting & test points
Head section view
Cassette mechanism
(Surface)
Tape speed adjust
Motor assembly
Playback head
Azimuth screw
15
17
Table of Contents
Service Manual
3
Table of Contents
3
Safety Precaution
4
Disassembly Method
5
Adjustment Method
15
Description of Major Ics
19
Ks-Fx460R Ks-Fx463R
27
Area Suffix
27
Continental Europe
27
Standard Schematic Diagrams
30
Parts List
34
Exploded View of General Assembly and Parts List
35
Cassette Mechanism Assembly and Parts List
38
Electrical Parts List
44
Packing Materials and Accessories Parts List
47
Parts List
48
