KS-FX460R/KS-FX463R
1-5
Prior to performing the following procedure, remove
the front panel assembly, the front chassis assembly,
the heat sink and the bottom cover.
Remove the screw B, the two screws C and the two
screws D attaching the rear bracket on the back of
the body. Remove the rear bracket.
Remove the two screws E attaching the main board
on the bottom of the body. Disconnect connector
CN901 and CN902 on the main board in the
direction of the arrow.
1.
2.

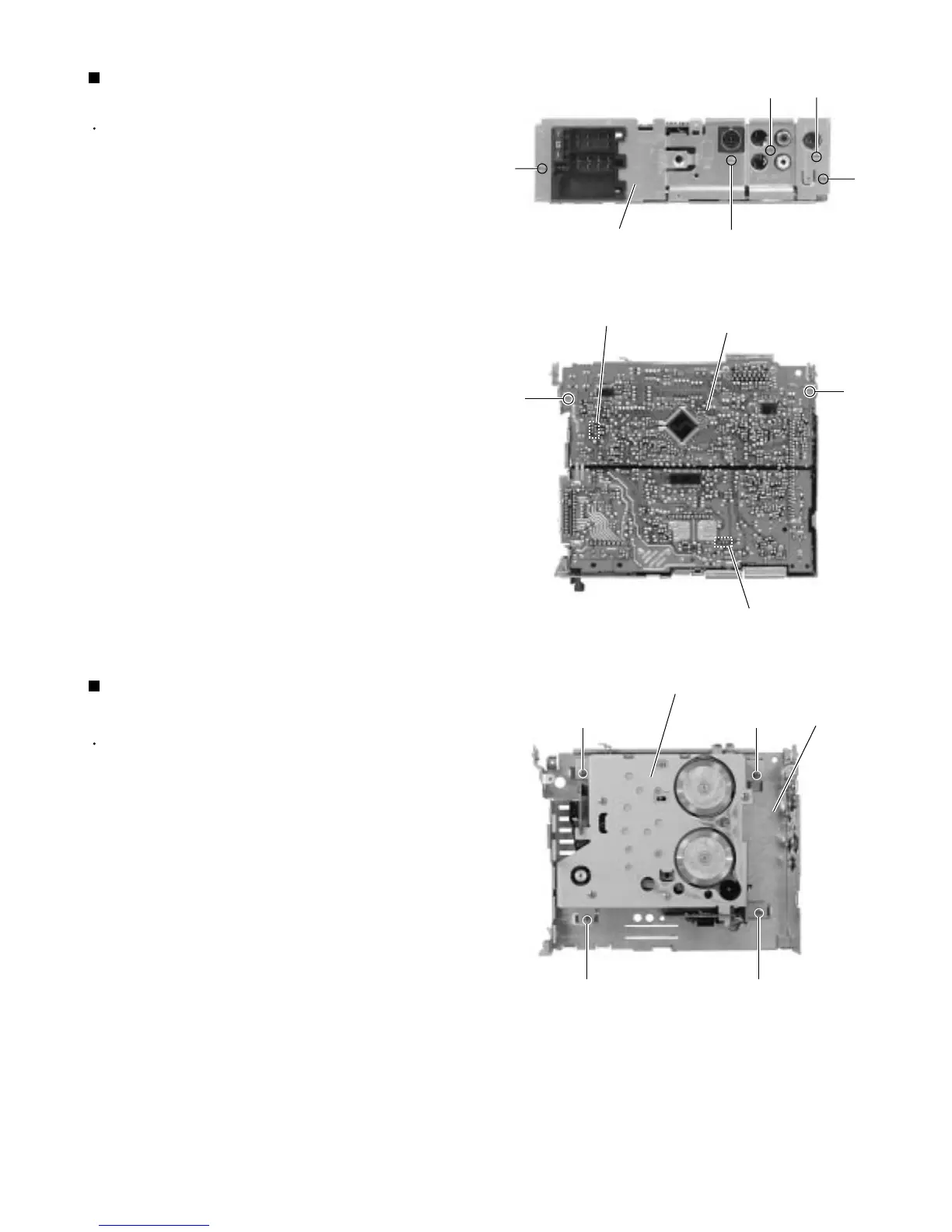

Removing the main board
(See Fig.7 and 8)
Prior to performing the following procedure, remove
the front panel assembly, the front chassis assembly,
the heat sink, the bottom cover and the main board.
Remove the four screws F attaching the cassette
mechanism section on the back of the top chassis.
1.
Removing the cassette mechanism section
(See Fig.9)
Fig.7
Fig.8
Fig.9
Rear bracket
B
D
D
C
C
Main board
E
E
CN902
CN901
Cassette mechanism section
F
F
FF
Top chassis
