KS-FX483R,KS-FX480R,KS-FX43R
1-16 (No.49812)
SECTION 4
Description of major ICs
4.1 AN80T05LF (IC961) : Regulator

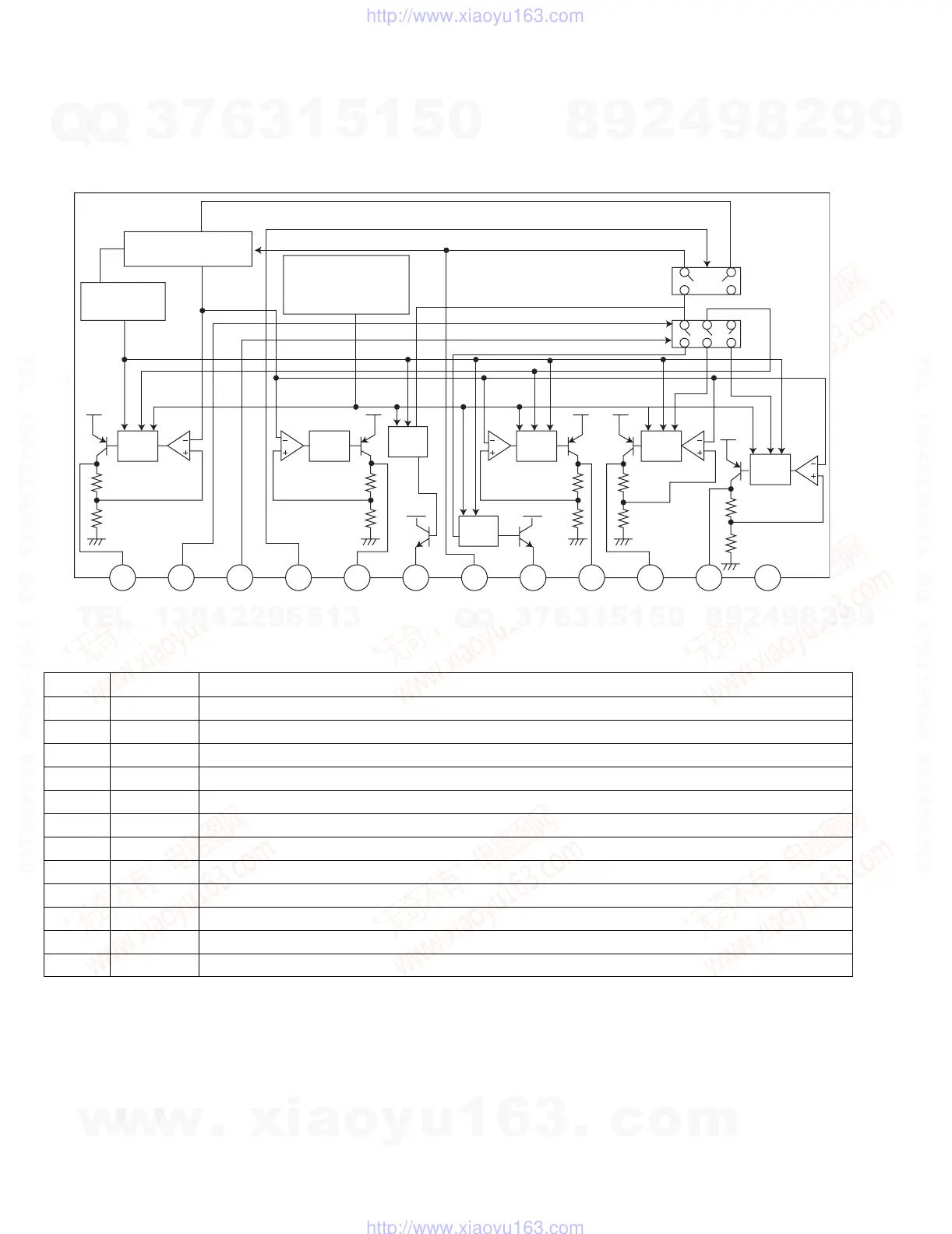

• Pin layout & Block diagram
• Pin function
Pin No. Symbol Function
1 ILL 10V power supply for illumination.
2 MODE2 When 5V is input, becomes AM. and the antenna output is turned on.
3 MODE1 When 5V is input, becomes AM. and the output of FM is switched.
4 STB When 5V is input, outputs to ILL, COM, and AMP. It is 0V usually.
5 VDD 5.6V power supply.
6 AMP Power supply supply to remote amplifier
7 VCC Back up. connects with ACC with it.
8 ANT Power supply supply to auto antenna.
9 COM 8.7V power supply.
10 AM The power supply of 8.7V to AM.
11 FM The power supply of 8.7V to FM.
12 GND Ground
