1-6 (No.MA104)

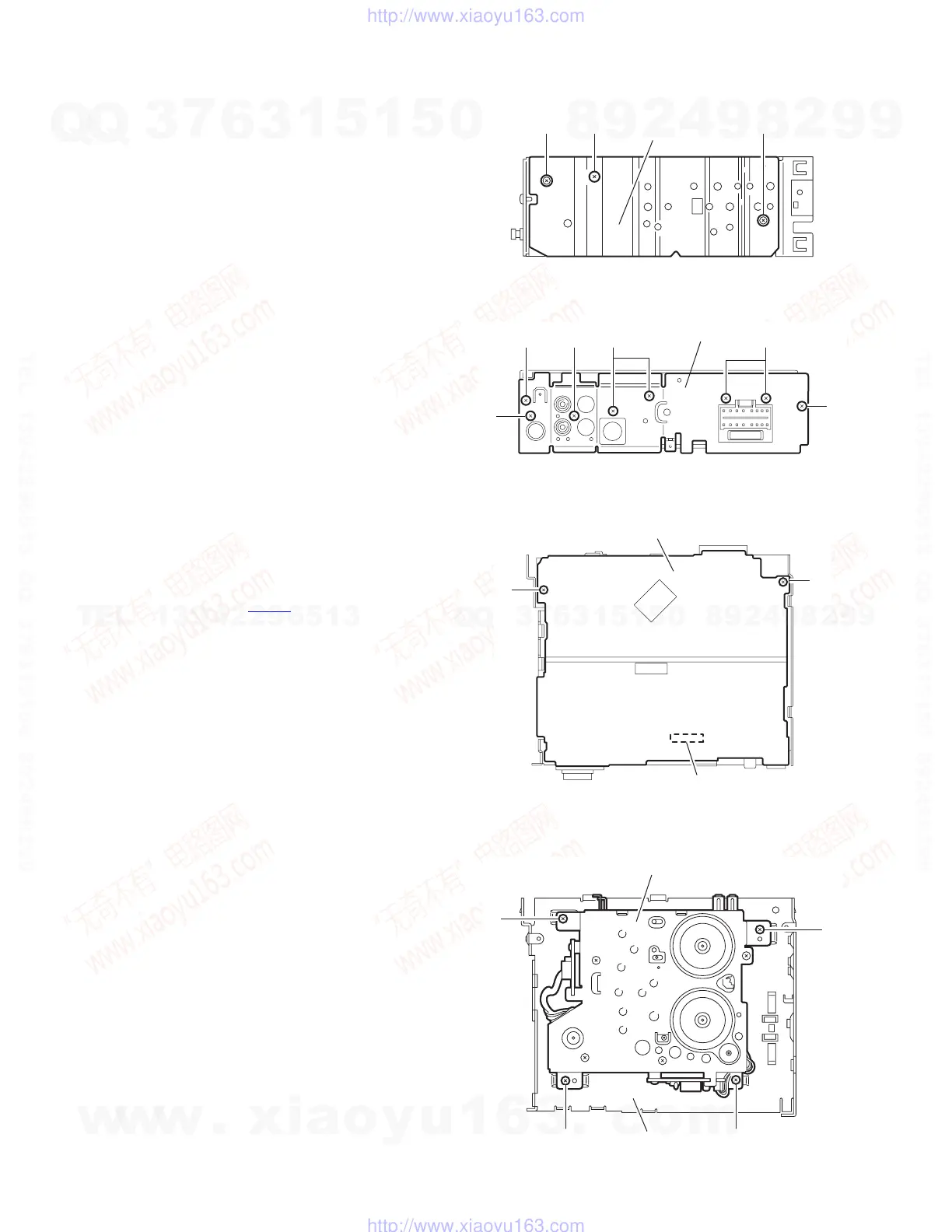

3.1.4 Removing the heat sink
(See Fig.4)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the screw B and two screws C attaching the heat
sink on the left side of the body, and remove the heat sink.
Fig.4
3.1.5 Removing the rear panel
(See Fig.5 )
• Prior to performing the following procedure, remove the front
panel assembly and bottom cover.
(1) Remove the two screws D, three screws E and three
screws F attaching the rear panel on the back of the body.
Fig.5
3.1.6 Removing the main board
(See Fig.6)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis, heat sink and
rear panel.
(1) Remove the two screws G attaching the main board on the
top chassis.
(2) Disconnect the connectors CP701
on the main board from
the cassette mechanism assembly.
Fig.6
3.1.7 Removing the cassette mechanism assembly
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis, heat sink, rear
panel and main board.
(1) Remove the four screws H attaching the cassette mecha-
nism assembly from the top chassis.
Fig.7
Heat sink
C
B
C
E
D
EFF
D
Rear panel
G
Main board
CP701
G
H
H
H
H
Top chassis
Cassette mechanism assembly
