KS-FX621
1-10 (No.49825)

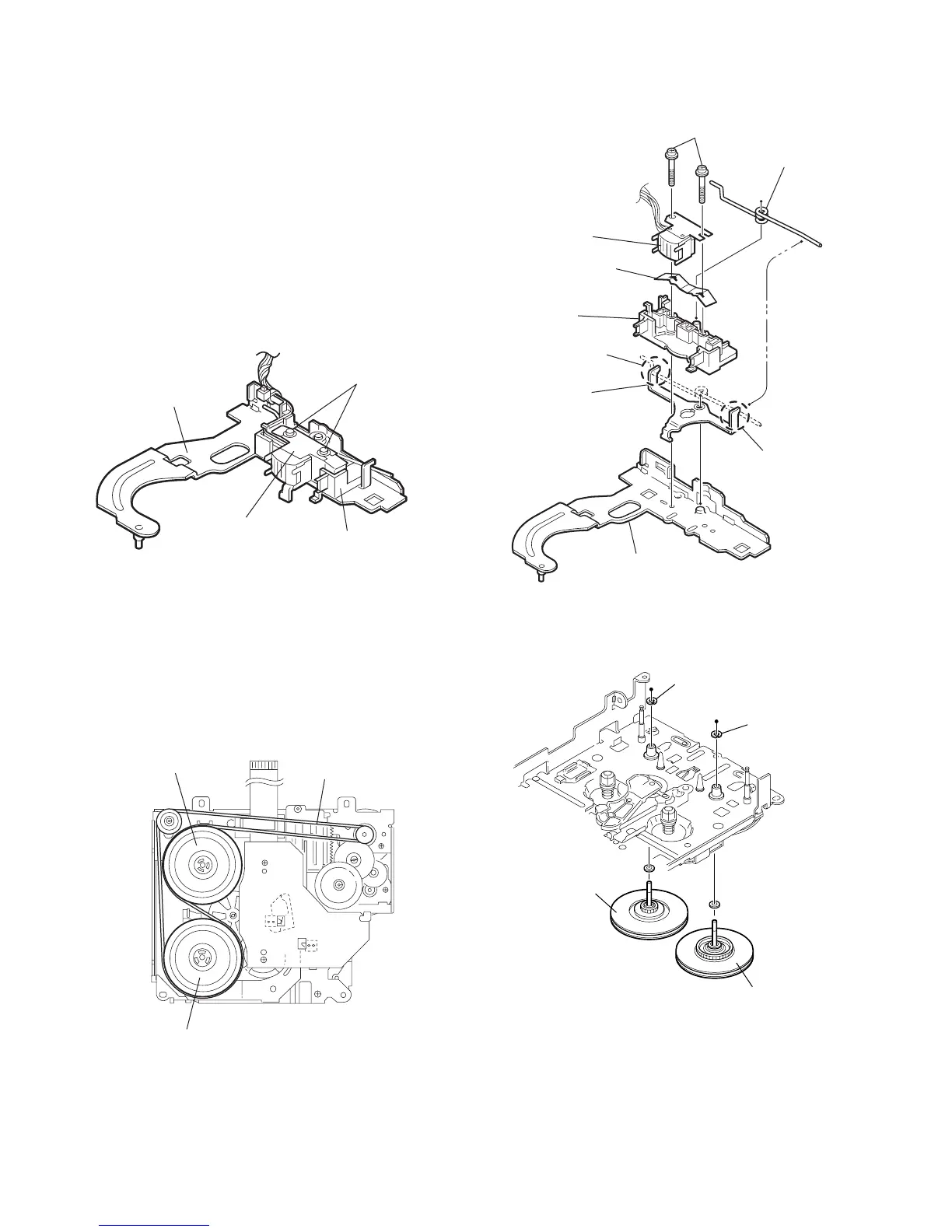

2.2.8 Removing the head / tape guide
(See Fig.16 and 17)
REFERENCE:
It is not necessary to remove the slide chassis assembly.
(1) Remove the band attaching the wire to the head.
(2) Remove the two screws B, the head and the head support
spring.
(3) Remove the pinch arm spring from the tape guide.
(4) Remove the tape guide and the pinch spring arm.
CAUTION:
When reattaching the pinch arm spring, set both end of it to the
pinch spring arm ( remarked o).
CAUTION:
When reattaching the head, set the wires into the groove of the
tape guide (Fig.16).
Fig.16
Fig.17
2.2.9 Removing the flywheel assembly (F) & (R)
(See Fig.18 and 19)
REFERENCE:
It is not necessary to remove the slide chassis assembly.
(1) Remove the belt at the bottom.
(2) Remove the two polywashers on the upper side.
(3) Pull out each flywheel assembly downward.
Fig.18
Fig.19
B
Slide chassis assembly
Head
Tape guide
B
Pinch arm spring
Head
Head support spring
Tape guide
Pinch spring arm
Slid chassis assembly
o
o
Flywheel assembly (F)
Flywheel assembly (R)
Belt
Polywasher
Polywasher
Flywheel assembly (F)
Flywheel assembly (R)
