KS-FX621
(No.49825)1-9

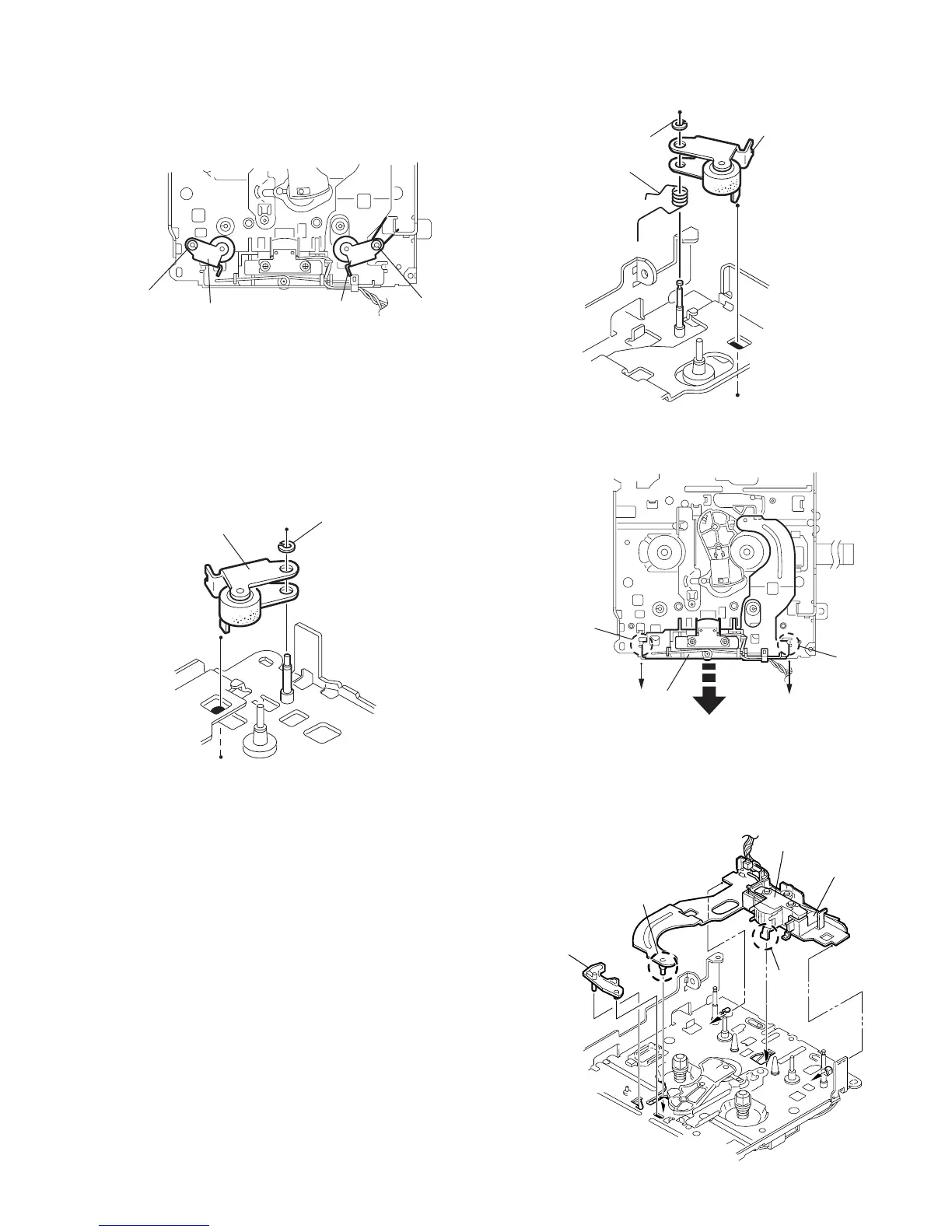

2.2.5 Removing the pinch arm (F) assembly
(See Fig.11 and 12)
(1) Remove the polywasher and pull out the pinch arm (F) as-
sembly.
(2) Remove the compulsion spring.
Fig.11
Fig.12
2.2.6 Removing the pinch arm (R) assembly
(See Fig.11 and 13)
(1) Remove the polywasher and pull out the pinch arm (R) as-
sembly.
Fig.13
Fig.14
2.2.7 Removing the slide chassis assembly
(See Fig.14 and 15)
REFERENCE:
It is not necessary to remove the head and the tape guide.
(1) Move the slide chassis assembly in the direction of the ar-
row to release the two joints l and remove from the main
chassis.
(2) Remove the rack link.
CAUTION:
When reassembling, first reattach the rack link, and next fit the
boss m and hook n of the slide chassis assembly to the hole
of the main chassis, and engage the two joints l.
Fig.15
Polywashe
r
Polywasher
Pinch arm
(F) assembly
Pinch arm
(R) assembly
Polywasher
Pinch arm (F) assembly
Compulsion spring
Pinch arm
(R) assembly
Polywashe
r
Slide chassis
assembly
Joint l
Joint l
Boss m
Hook
n
Rack link
Head
Tape guide
