KS-FX621
1-8 (No.49825)

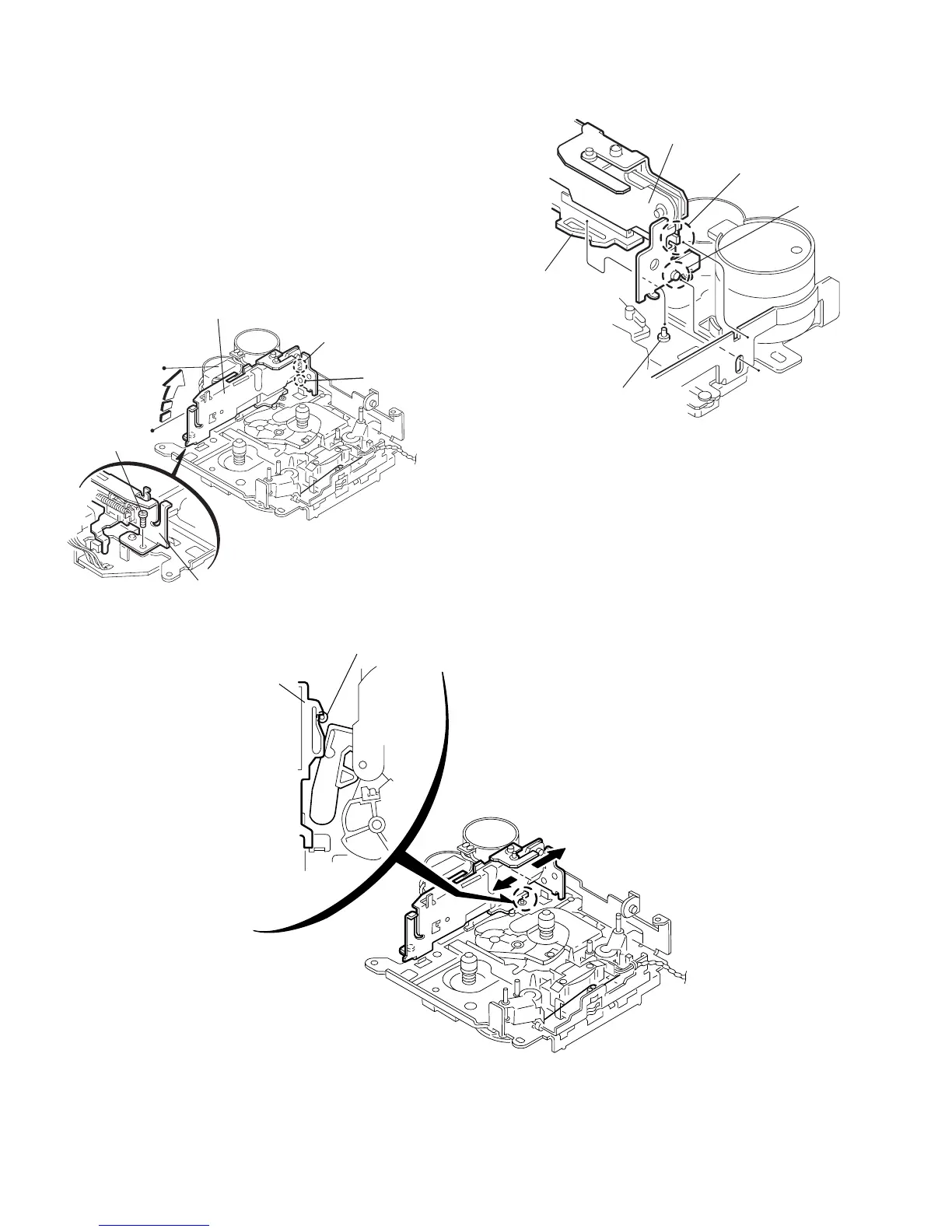

2.2.4 Removing the side bracket assembly
(See Fig.8 to 10)
(1) Remove the screw A attaching the side bracket assembly.
(2) Detach the front side of the side bracket assembly upward
and pull out forward to release the joint i and j in the rear.
CAUTION:
When reassembling, make sure that the boss k of the main
chassis is set in the notch of the load rack under the side
bracket assembly. Do not reattach the load rack on the boss k.
CAUTION:
After reattaching the side bracket assembly, confirm opera-
tion.
Fig.8
Fig.9
Fig.10
A
Side bracket assembly
Side bracket assembly
Joint i
Joint j
Joint i
Joint j
Side bracket assembly
Boss k
Load rack
Boss k
Load rack
To Next Page
