KS-FX621
(No.49825)1-7

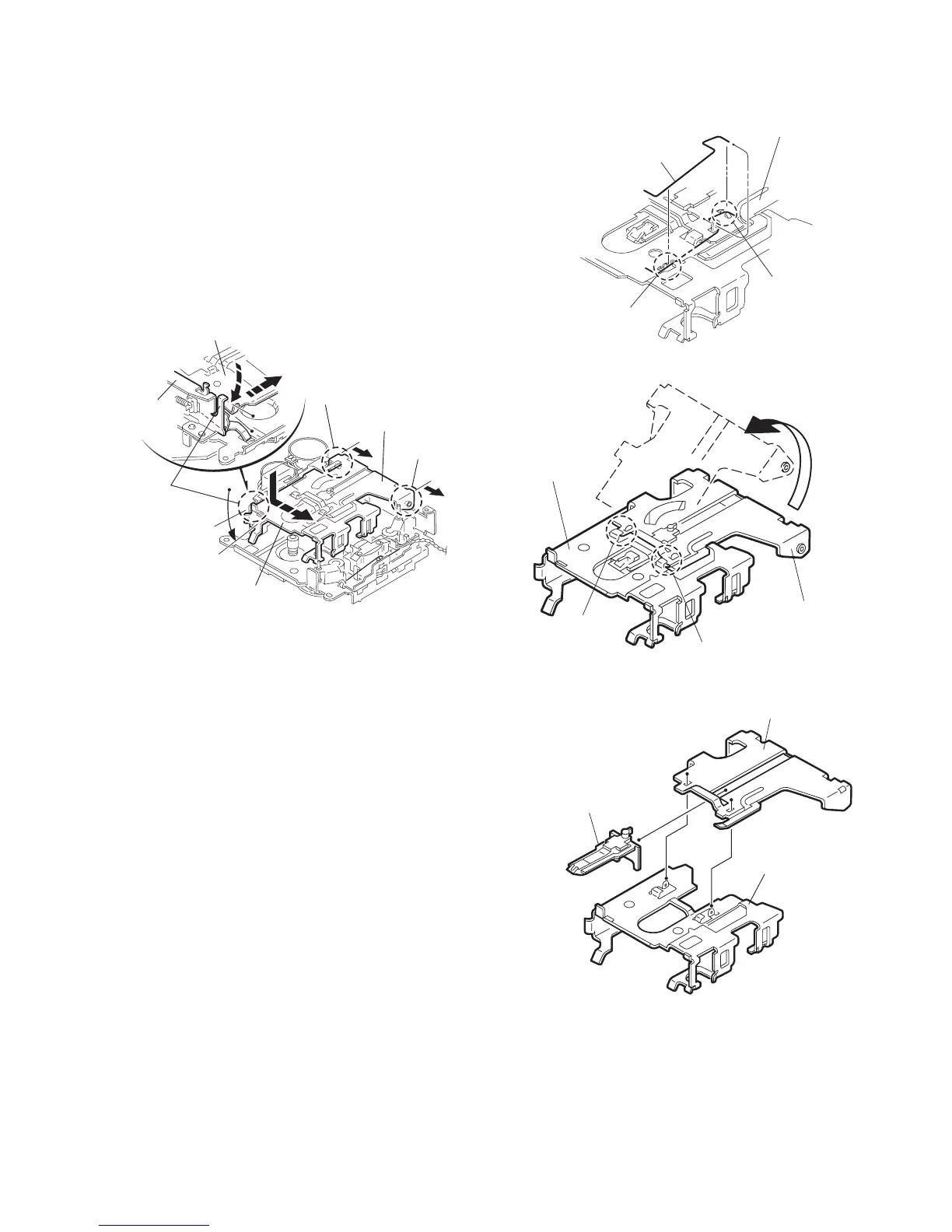

2.2.3 Removing the cassette hanger assembly / cassette holder
(See Fig.4 to 7)
(1) Check the mode is set to EJECT. Push down the front part
of the cassette holder and move in the direction of the ar-
row to release the joint c.
(2) Move the rear part of the cassette hanger assembly in the
direction of the arrow to release it from the two joint bosses
d.
(3) Release the holder stabilizer spring from the hooks e and
f, then pull out from the cassette hanger assembly.
(4) Bring up the rear side of the cassette hanger assembly to
release the joint g and h.
(5) Pull out the cassette catch from the cassette hanger as-
sembly.
Fig.4
Fig.5
Fig.6
Fig.7
Cassette holder assembly
Side bracket
Joints c
Cassette holder assembly
Cassette hanger
assembly
Boss d
Boss d
Cassette hanger assembly
Cassette stabilizer spring
Hook f
Hook e
Cassette hanger assembl
y
Hook h
Hook g
C
assette holder
a
ssembly
Cassette holder assembly
Cassette hanger assembly
Cassette catch
