2.2.22 Removing the main motor assembly / sub motor assembly
(See Fig.40 to 42)
(1) Remove the belt at the bottom.
(2) Remove the polywasher and pull out the mode gear.
(3) Pull out the reduction gear (B).
(4) Remove the polywasher and pull out the reduction gear
(A).
(5) Remove the two screws D attaching the main motor as-
sembly.
(6) Remove the two screws E attaching the sub motor assem-
bly.
(7) Unsolder the wires on the reel board if necessary.
CAUTION:
When reassembling, adjust the length of the wires extending
from the sub motor asswmbly by attaching them to the side of
the sub motor assembly with the wires extending from the
main motor assembly using a spacer.

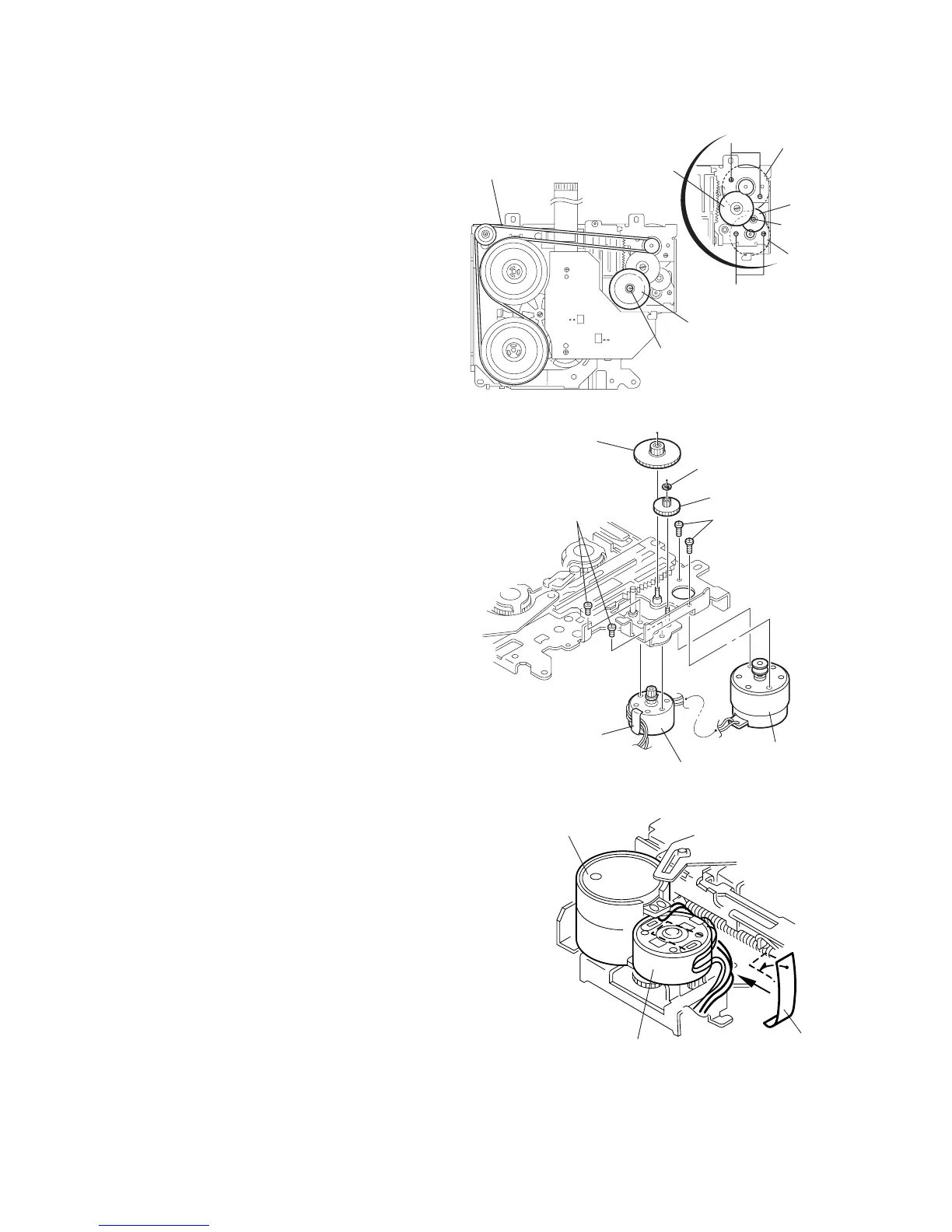

Fig.40
Fig.41
Fig.42
Belt
Polywasher
Polywashe
r
Mode gear
Reduction
gear (A)
Main motor
assembly
D
Sub motor
assembly
E
Reduction gear (B)
Polywasher
Reduction gear (B)
Reduction gear (A)
E
D
Main motor assembly
Sub motor assembly
Spacer
Spacer
Sub motor assembly
Main motor assembly
