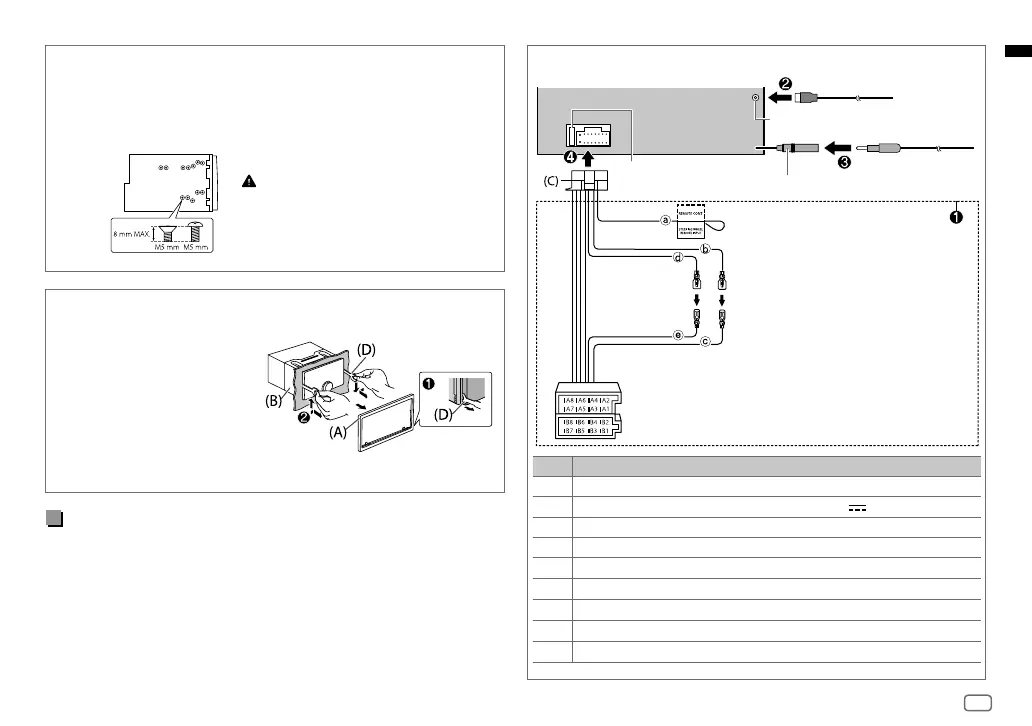

Installing the unit (without mounting sleeve)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (supplied).
Use only the specified screws.
Using wrong screws might damage
the unit.
Part list (supplied)
(A) Trim plate (×1)
(B) Mounting sleeve (×1)
(C) Wiring harness (×1)
(D) Extraction key (×2)
(E) Flat head screw, M5 × 8 mm (×8)
(F) Round head screw, M5 × 8 mm (×8)
Wiring connection
Pin Color and function
A4 Yellow : Battery
A5 Blue/white : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1, B2
Purple
]
, Purple/black
[
: Rear speaker (right)
B3, B4
Gray
]
, Gray/black
[
: Front speaker (right)
B5, B6
White
]
, White/black
[
: Front speaker (left)
B7, B8
Green
]
, Green/black
[
: Rear speaker (left)
Antenna terminal
Fuse (10 A)
a Light blue/yellow: To the steering
wheel remote control adapter
b Yellow: Battery wire
c Yellow: A4
d Red: Ignition wire
e Red: A7
ISO connectors
DAB antenna jack (SMB connector)
Removing the unit
1 Fit the catch pin on the
extraction keys into the
holes on both sides of the
trim plate, then pull it out.
2 Insert the extraction keys
deeply into the slots on each
side, then follow the arrows
as shown below.
