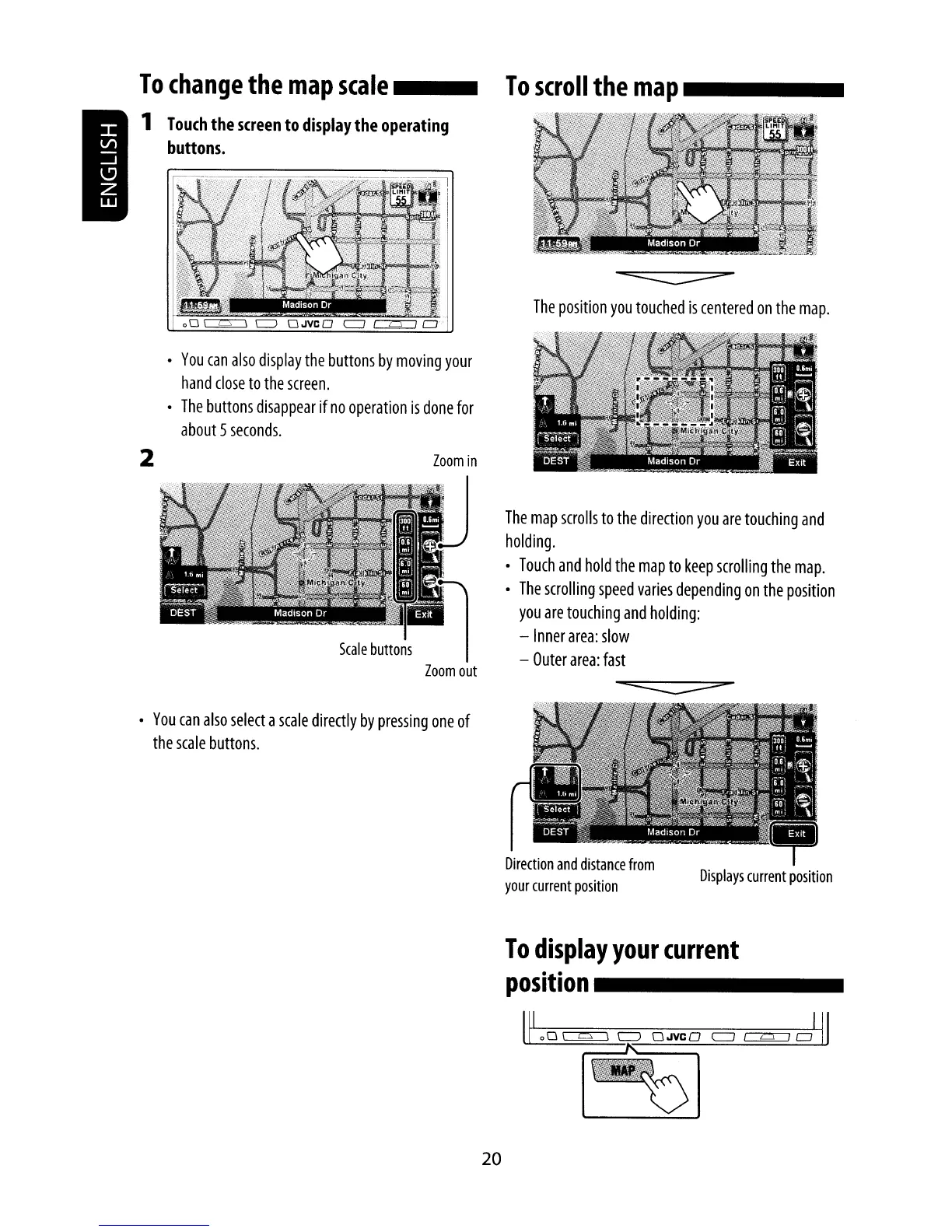

To change the map scale _
1 Touch the screen to display the operating
buttons.
oc:::::::::::::
The position you touched is centered on the map .
To scroll the map _
Zoom in
• You can also display the buttons by moving your
hand close to the screen.
• The buttons disappear if no operation is done for
about 5 seconds.
2
Scale buttons
Zoom out
The map scrolls to the direction you are touching and
holding .
•
Touch and hold the map to keep scrolling the map .
• The scrolling speed varies depending on the position
you are touching and holding:
- Inner area: slow
- Outer area: fast
c::::::::::::::
• You can also select a scale directly by pressing one of
the scale buttons.
Direction and distance from
your current position
Displays current position
To display your current
position _
Itl 00 ~ CJ OJVCO c=J ~ 0
1
~
~
20

JVC KW-NX7000 Specifications

General

Auto	Yes
Marine (chartplotters, sounders)	No
Form factor	Fixed
Display diagonal	7 \
Display resolution	336 x 960 pixels
