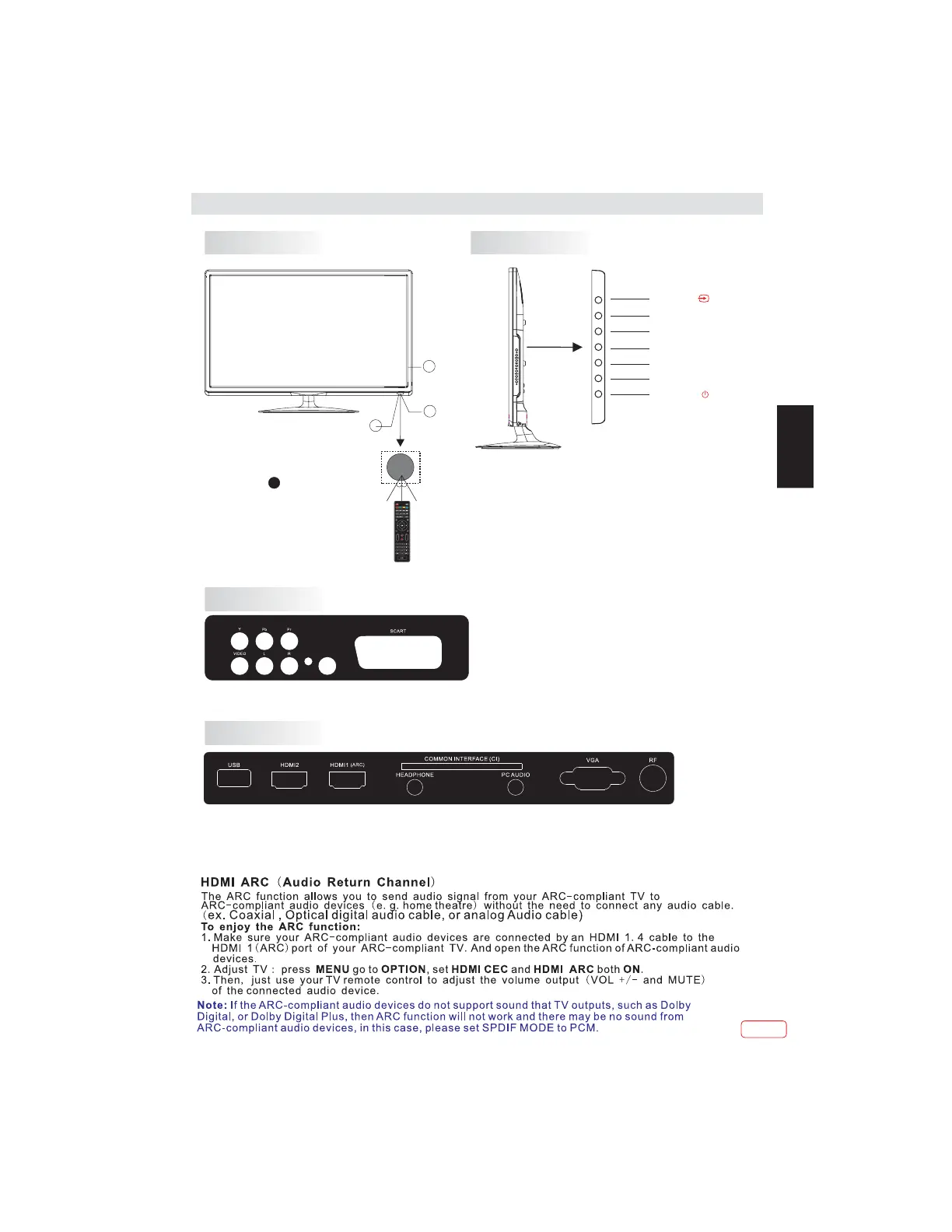

1: Remote Control Sensor.
2:
RED STANDBY.
3: Side buttons
Power Indicator LED:
1. SOURCE:
2. MENU:
3. CH+/CH-:
4. VOL+/VOL-:
5. STANDBY:
Displays the input source menu;
press repeatedly to move down the menu and
press "VOL-" or "VOL+" to select the required
source.
Display main MENU.
In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode,
press "CH+" or "CH-" to select items. standby
mode, press "CH+" or "CH-" to turn on the TV.
Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that
you selected.
Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
In
30 30
1
3
2
KEYBOARD
Front panel
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
REAR AV Connections
All the terminals are(from left to right):YPbPr INPUT,VIDEO,AUDIO INPUT,COAXIAL OUTPUT,SCART.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
USB, HDMI2, HDMI1(ARC), HEADPHONE, CI, PC AUDIO, VGA, RF.
Note: 1.When HDMI port gets DVI signal ,the audio signal is received from the PC Audio channel.
2.Insert the plug of the earphone into the headphone jack on the unit.
The speakers are then muted.
VOL
CH
FREEZE
EPG
COAXIAL OUTPUT
EN
9
Installation
