JVC LT-22DE72 - Device Ports and Controls Overview; External Connection Ports; Front Panel Indicators and Remote Sensor

11
ENGLISH
Left side
Front
Remote sensor
Rear
To display the menu screen.
Touch and hold both VOL (VOLUME) +/– at the same time for 1 second to display the menu screen.
CH (CHANNEL)
/ buttons, VOL (VOLUME) +/– buttons and INPUT/ENTER button can be used to select the
desired setting during the menu screen operations.
PC MONITOR IN jack
VIDEO IN jacks
(VIDEO/AUDIO
(L (MONO)/R))
HDMI/DVI
IN jack
PC/DVI AUDIO IN jack

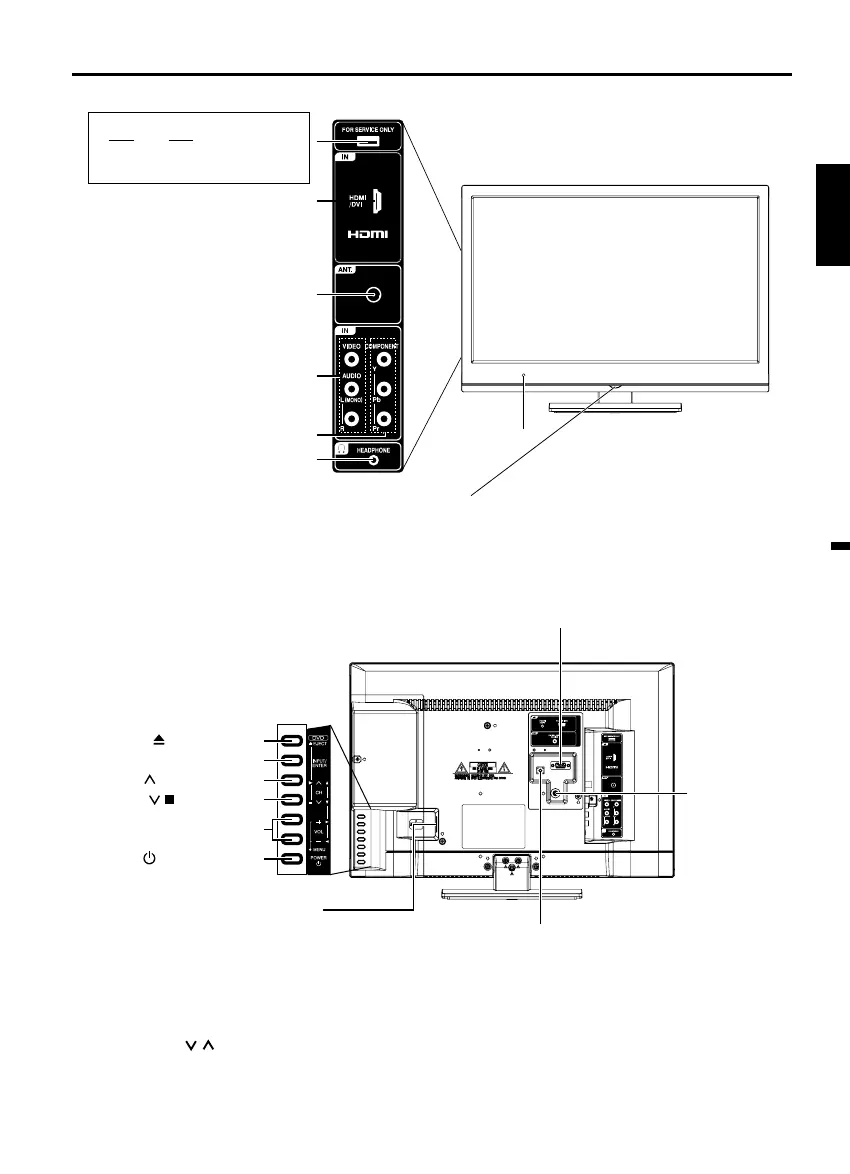

Parts and functions
COMPONENT
IN jacks
ANT. (RF) IN jack
HEADPHONE jack
Indicator
Red : Standby
Blue : On
AC INPUT jack
Right side
DIGITAL AUDIO
COAXIAL OUT jack
FOR SERVICE PERSONNEL USE ONLY
Do NOT insert ANY USB device into
this port. Use of this port by other than
Service Personnel may void this products
warranty.
EJECT button
INPUT/ENTER button
CH (Channel)
/ ▶ (Play) button
CH (Channel)
/ (Stop) button
VOL (Volume) +/
– buttons
POWER button
