4.5.5 ADJUSTMENT MODE
This mode is used to adjust the VIDEO CIRCUIT.
4.5.5.1 HOW TO ENTER THE ADJUSTMENT MODE
When the SERVICE MENU SCREEN of SERVICE MODE is displayed, press [1] key to enter the ADJUSTMENT MODE (Fig.2).
NOTE:
• When a number key other than the [1] key is pressed in the SERVICE MODE SCREEN, the other relevant screen may be
displayed.
This is not used in the adjustment procedure. Press the [MENU] key to return to the SERVICE MODE SCREEN.
4.5.5.2 DESCRIPTION OF STATUS DISPLAY
(1) SIGNAL SYSTEM
The signal displayed on the screen is displayed.
(2) ZOOM MODE
State of the ZOOM MODE is displayed.
(5) SETTING ITEM NAME
Setting item name are displayed. The setting item numbers to
be displayed are listed below.
(7) SETTING VALUE (DATA)
The SETTING VALUE is displayed.
PAL : PAL50Hz/60Hz (Composite / S-video)
: DVB-T [Only DA8/DT8 series]
: RGB 576i
SECAM : SECAM
NTSC3.58 : NTSC3.58 / RGB 480i
NTSC4.43 : NTSC4.43
480i : 480i (Component) / HDMI 480i
480p : 480p / HDMI 480p
576i : 576i (Component) / HDMI 576i
576p : 576p / HDMI 576p
1080i50 : 1080i 50Hz / HDMI 1080i 50Hz
1080i60 : 1080i 60Hz / HDMI 1080i 60Hz
750p50 : HDMI 750p 50Hz
750p60 : HDMI 750p 60Hz
FUL : FULL
PAN : PANORAMIC
16Z : 16:9 ZOOM
SUB : 16:9 ZOOM SUBTITLE
14Z : 14:9 ZOOM
REG : REGULAR

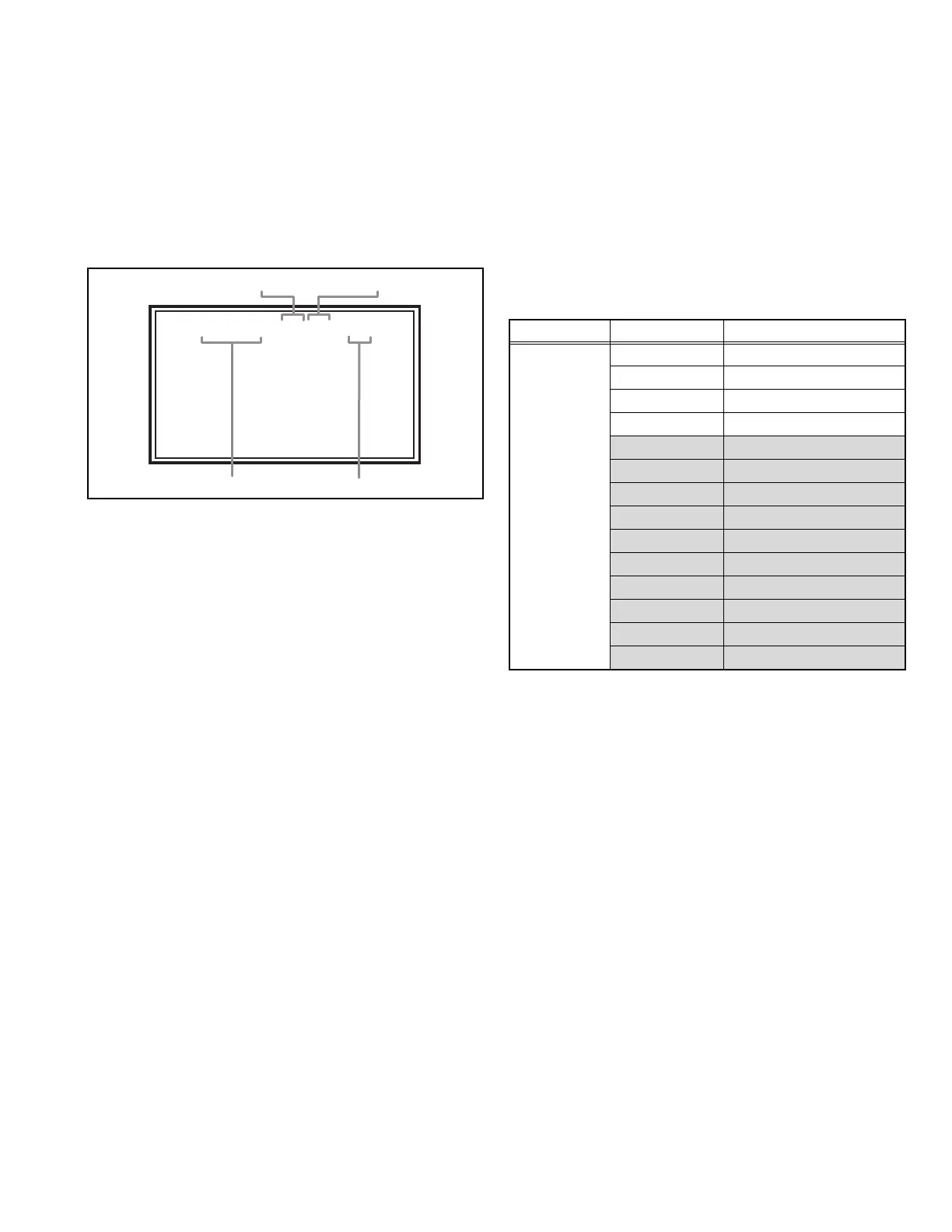

ADJUST AUTO PAL FUL
1.SC ADJ 14
SC DEV:+ 0
- + OK:STORE i=EXIT
SIGNAL SYSTEM
ZOOM MODE
SETTING VALUE (DATA)
SETTING ITEM
Setting mode Setting items Settings
1.ADJUST 1.SC ADJ. Adjust
2.R DRIVE Adjust
3.G DRIVE Adjust
4.B DRIVE Adjust
5.CUTOFF R Fixed [Do not adjust]
6.CUTOFF G Fixed [Do not adjust]
7.CUTOFF B Fixed [Do not adjust]
8.COLOUR Fixed [Do not adjust]
9.HUE Fixed [Do not adjust]
10.CONTRAST Fixed [Do not adjust]
11.BRIGHT Fixed [Do not adjust]
12.SHARP Fixed [Do not adjust]
13.DC EXTMD Fixed [Do not adjust]
14.PWM EXTMD Fixed [Do not adjust]
To Next Page
