JVC LT-26DR7BJ - Page 7

(No.YA408)1-7

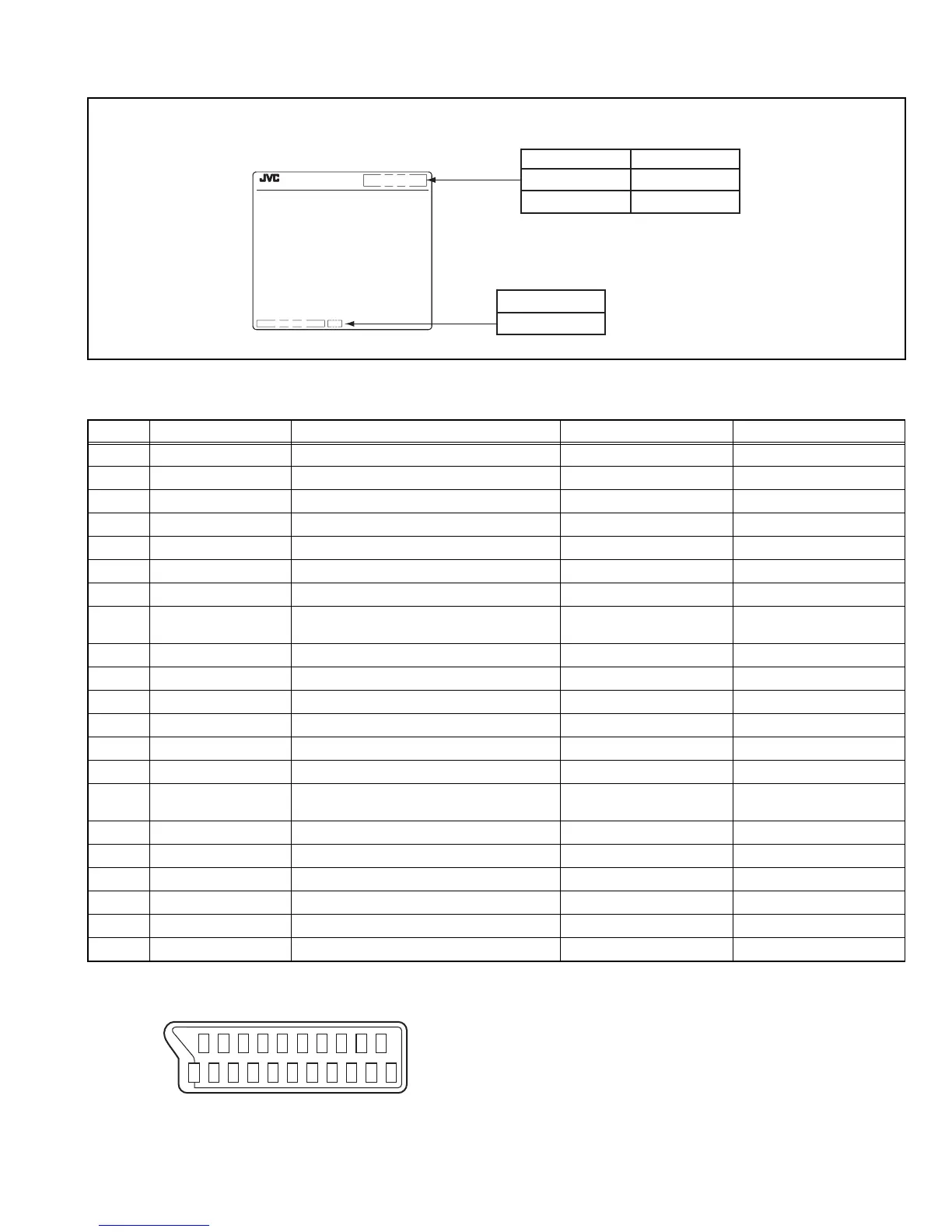

2.4 HOW TO IDENTIFY MODELS
2.5 21-PIN EURO CONNECTOR (SCART) : EXT-1 / EXT-2
(P-P= Peak to Peak, B-W= Blanking to white peak)
Except "/P" models : "AE" is added to the serial No. after at the Rating label.
"/P" models : "PE" is added to the serial No. after at the Rating label.
Pin No. Signal designation Matching value EXT-1 EXT-2
1 AUDIO R output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
2 AUDIO R input 500mV(rms) (Nominal), High impedance Used (R1) Used (R2)
3 AUDIO L output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
4 AUDIO GND Used Used
5 GND (B) Used Used
6 AUDIO L input 500mV(rms) (Nominal), High impedance Used (L1) Used (L2)
7 B input 700mV
(B-W)
, 75Ω Used Used
8 FUNCTION SW
(SLOW SW)
Low : 0V-3V
High : 8V-12V, High impedance
Used Used
9 GND (G) Used Used
10 SCL / T-V LINK Not used Used (SCL2 / TV-LINK)
11 G input 700mV
(B-W)
, 75Ω Used Used
12 SDA Not used Used (SDA2)
13 GND (R) Used Used
14 GND (YS) Used Not used
15 R / C input R : 700mV
(B-W)
, 75Ω
C : 300mV
(P-P)
, 75Ω
Used (R) Used (C2/R)
16 Ys input (FAST SW) Low : 0V-0.4V, High : 1V-3V, 75Ω Used Used
17 GND (VIDEO output) Used Used
18 GND (VIDEO input) Used Used
19 VIDEO output 1V
(P-P)
(Negative sync), 75Ω Used (TV OUT) Used (LINE OUT)
20 VIDEO / Y input 1V
(P-P)
(Negative sync), 75Ω Used Used
21 COMMON GND Used Used
Indicated
PE
AE
MODEL No.
SERIAL NO.
LT-32DR7BJ
LT-26DR7BJ
LT-37DR7BJ
LT-32DR7SJ
LT-26DR7SJ
LT-37DR7SJ
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
[Pin assignment]
