JVC LT-37R70BU - Connecting External Devices

13
ENGLISH
14
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
AERIAL

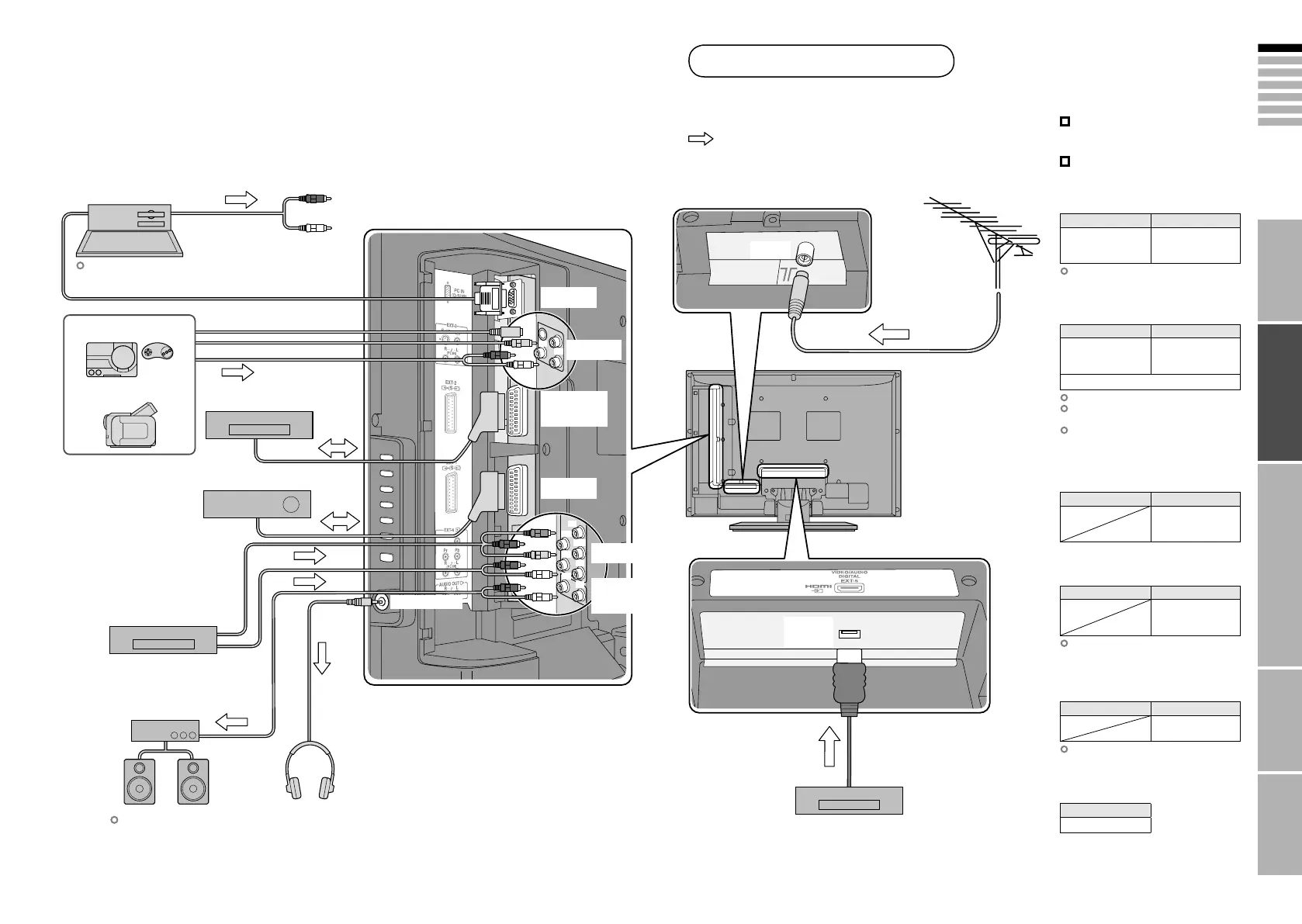

Connecting external devices
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
DVD player
(HDMI compatible)
Amplifier
(L) (R)
VCR / DVD recorder
(“T-V LINK” compatible)
AUDIO
OUT
Satellite broadcast / Digital
broadcast tuner
Game consoles
 Check for PC compatibility
 “Technical information” (P. 34)
DVD player
PC IN
PC
Video camera
EXT-1
EXT-2
(T-V LINK)
EXT-3
EXT-4
: signal direction
 Connect “DVI” devices
 (P. 34)
 “T-V LINK”  (P. 9)
To “EXT-3” R/L (PC IN)
Headphones
(R)
Headphone
EXT-1
Watching videos
Output  Input 
· Composite signal
· Sound L / R
· Composite signal /
RGB / S-VIDEO
· Sound L / R
 Use S-VIDEO  “S-IN” (P. 22)
EXT-2
Dubbing videos
Using “T-V LINK”
Output  Input 
· Composite signal
· Sound L / R
· Composite signal /
RGB / S-VIDEO
· Sound L / R
· T-V LINK
 Use S-VIDEO  “S-IN” (P. 22)
 Select dubbing sources
 “DUBBING” (P. 22)
 Connect a decoder
 “Decoder (EXT-2)” (P. 28)
EXT-3
Watching videos
Output  Input 
· Composite
signal / S-VIDEO
· Sound L / R
EXT-4
Watching DVDs
Output  Input 
· Component signal
(P. 36)
· Sound L / R
 “Component Auto Select”  (P. 28)
EXT-5
Connecting
HDMI devices
Output  Input 
· HDMI signal
(P. 36)
 “HDMI Setting”  (P. 28)
AUDIO OUT
Listening to the TV on external speakers
Output 
· Sound L / R
VCR / DVD / other devices
(L)
(Y)
(Pb)
(Pr)
(R)
(R)
(L)
(L)
EXT-5
(HDMI)
 Audio signals received from
EXT-5 cannot be sent to
the “AUDIO OUT” terminal.
