Connections to other equipment
Using an AV Amplifier with built-in digital surround
If you are using an AV Amplifier with built-in digital surround sound, you can enjoy various audio systems
including Dolby Digital Surround audio that sounds just like the movie.
Connect an AV Amplifier with built-in Dolby Digital decoder, etc. as shown below.
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
There will be no sound output if connected to an AV Amplifier with a built-in DTS decoder or MPEG decoder.
•

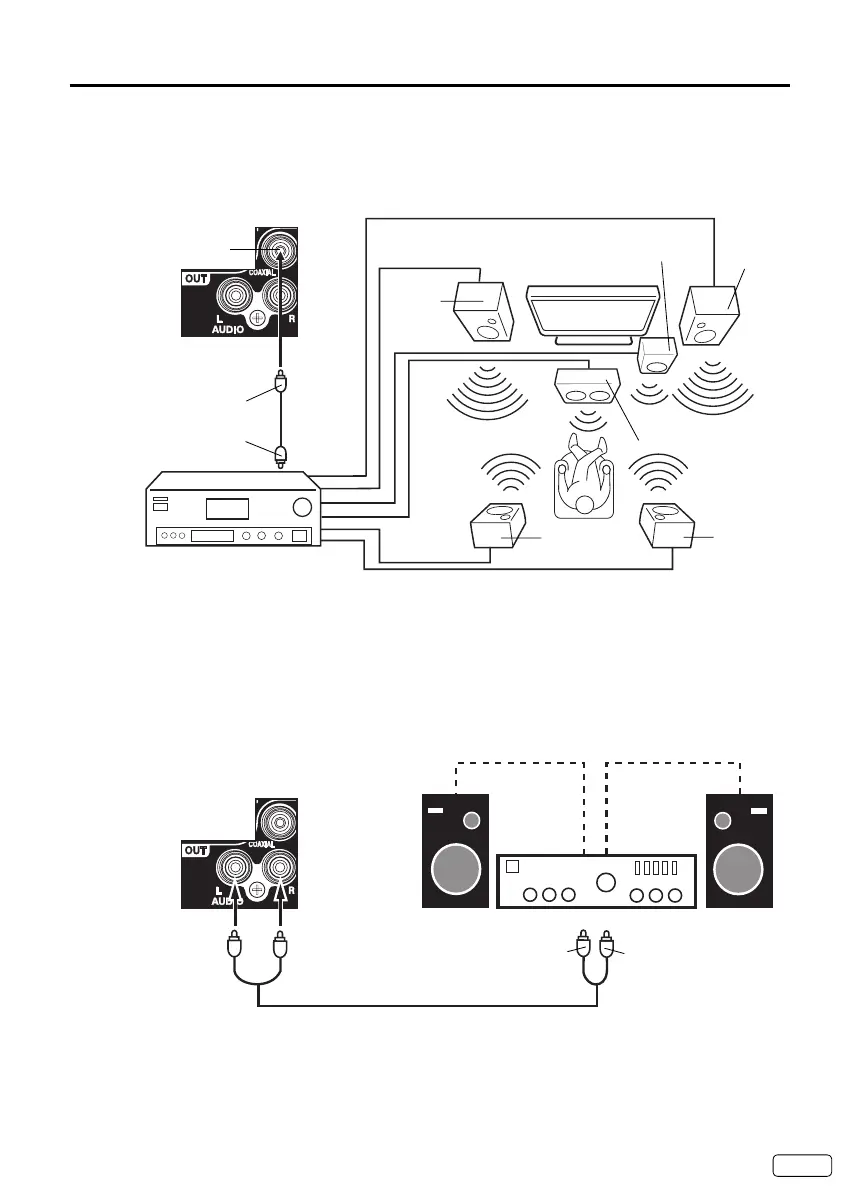

To connect an audio system
This connection allows you to hear the TV sound through external speakers connected to an audio amplifier.
To Audio (L) Input
To Audio (R) Input
Audio cord (not supplied)
Amplifier
Right of the unit
To AUDIO (L/R) OUT
Coaxial digital cable
(not supplied)
Center Speaker
To COAXIAL OUT
To Coaxial
Digital Audio Input
Right of the unit
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV
AV Amplifier with built-in digital surround decoder
