GB-12
CONNECTING EXTERNAL DEVICES
Connecting the VCR
With a SCART cable
Connect the SCART cable between the SCART connector (EXT-1 or EXT-2) on TV and the SCART connector of
VCR.
With a composite cable
Connect the composite video and audio cable between the composite video and audio input connectors (EXT-3 or
EXT-4) on TV and the composite video and audio output connectors of VCR.
With a S-video cable
Connect the S-video and audio cable between the S-video and audio input connectors on TV (EXT-3 or EXT-4) and
the S-Video and audio output connectors of VCR.
NOTE: ThecompositevideoandS-VideoshareAudio-L/RinEXT-3(orEXT-4)onside.
Connecting the Camcorder or Game Console
With a composite cable
Connect the composite video and audio cable between the composite video and audio input connectors (EXT-3 or
EXT-4) on TV and the composite video and audio output connectors of camcorder or game console.
SCARTInput/Output COMPOSITEInput S-VIDEOInput
LT-19DA9BJ EXT-1 EXT-3 EXT-3S
LT-26DA9BJ EXT-1, EXT-2 EXT-4 EXT-4S
LT-32DA9BJ
LT-42DA9BJ
EXT-1, EXT-2 EXT-4 EXT-4S

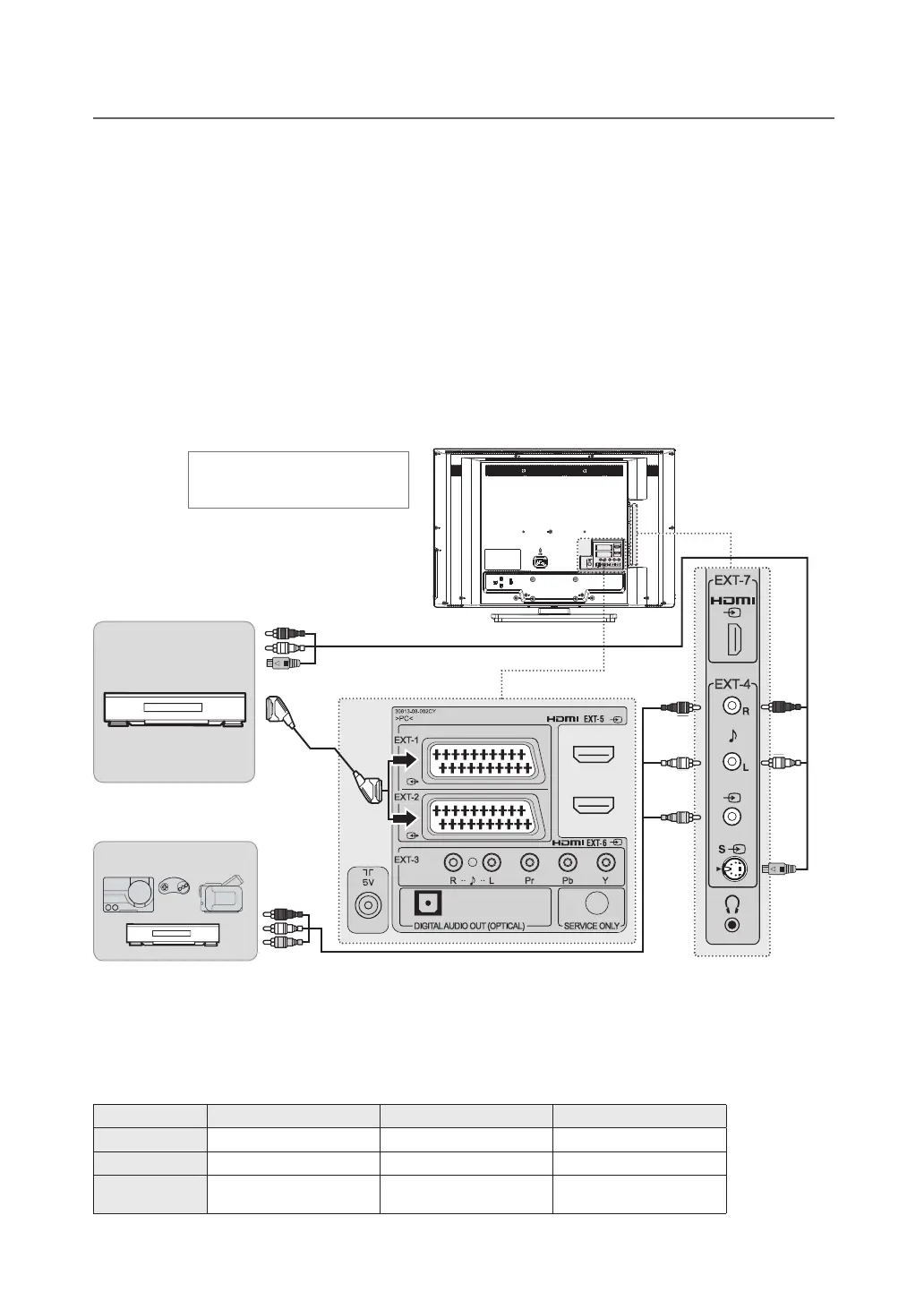

Heretheshownillustrationis
LT-32DA9BJ model and may be
somewhat different from your TV.
VCR
SCART
S-VIDEO
Camcorder / Game consoles / VCR
Cable of COMPOSITE
Cable of S-Video
COMPOSITE
To Next Page
