1-16 (No.YA708<Rev.002>)
3.3 DISASSEMBLY PROCEDURE (LCD PANEL UNIT)
3.3.1 REMOVING THE LCD CONTROL PWB (Fig.3-2)
• Remove the REAR COVER.
• Remove the STAND.
• Remove the MAIN BASE.
• Remove the BOTTOM FRAME.
(1) Remove the 4 screws [A].
(2) Remove the LCD CONTROL PWB COVER.
(3) Remove the LCD CONTROL PWB.
3.3.2 REMOVING THE INVERTER PWB (Fig.3-2)
• Remove the REAR COVER.
(1) Remove the 6 screws [B].
(2) Remove the INVERTER PWB COVER.
(3) Remove the INVERTER PWB.

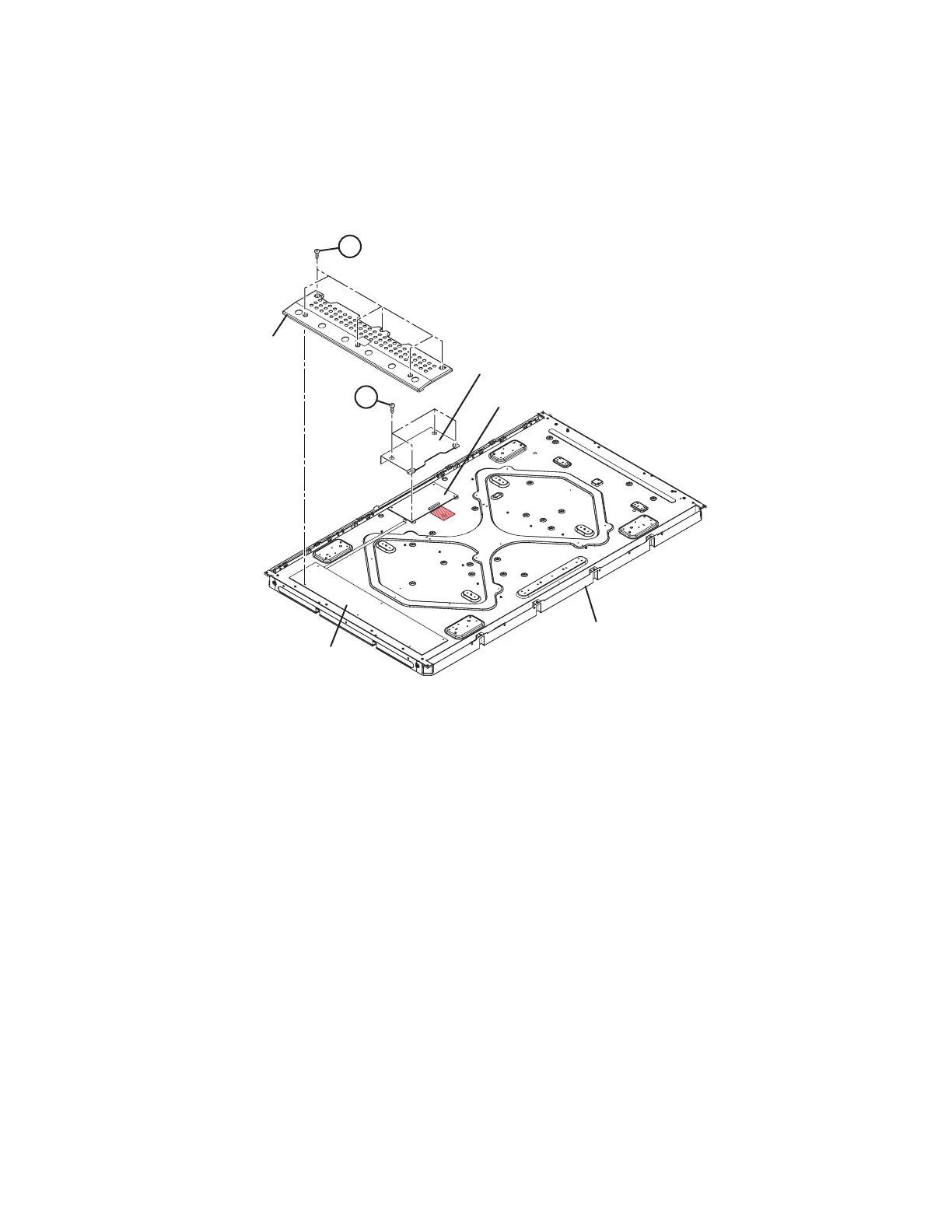

Fig.3-2
INVERTER PWB
COVER
LCD CONTROL
PWB COVER
INVERTER PWB
B
A
LCD CONTROL PWB
LCD PANEL UNIT
