13 EN

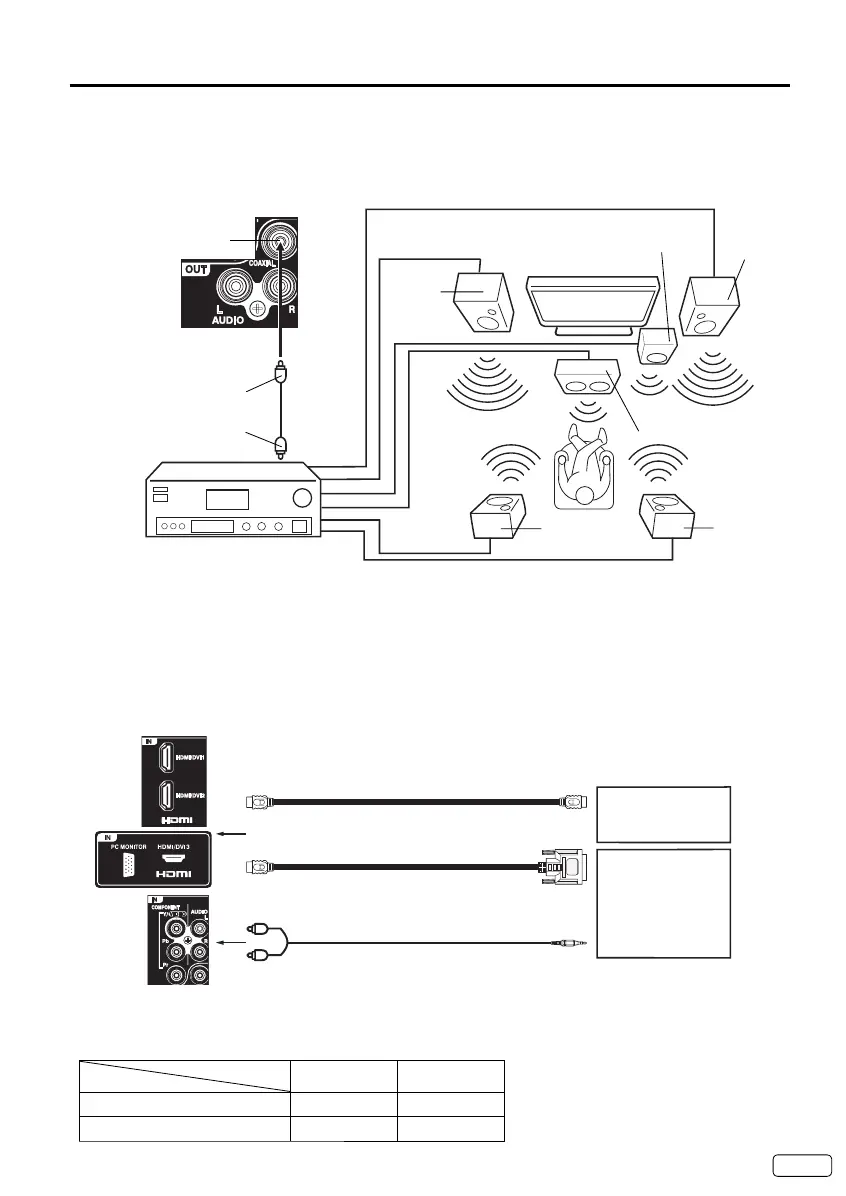

Connections to other equipment
To connect a HDMI or a DVI device to the unit
The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital
video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
HDMI cable (type A connector)
(not supplied)
To HDMI output
HDMI device
DVI device
To HDMI/DVI IN
or
Audio cord (not supplied)
To AUDIO IN To DVI output
Rear and right of the unit
Using an AV Amplifier with built-in digital surround
If you are using an AV Amplifier with built-in digital surround sound, you can enjoy various audio systems
including Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as
shown below.
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
•
NOTE:
The audio output from the devices connected by HDMI may not output the sound from the audio output jacks
of this unit for copyright protection.
In details, please check the table below.
•
Audio Out
Content
Digital Analog
SACD/DVD-Audio Prohibited Available*
Others
Prohibited Prohibited
* Depening on devices, the sound may not be output.
Coaxial digital cable
(not supplied)
Center Speaker
To COAXIAL OUT
To Coaxial
Digital Audio Input
Right of the unit
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV
AV Amplifier with built-in digital surround decoder
J3QE0221A_EN.indd 13J3QE0221A_EN.indd 13 3/1/13 9:17:04 AM3/1/13 9:17:04 AM
