How to attach the stand
F
inally secure the
stand
with 5 screws (supplied) (4x12mm(5/32 x 15/32 inches)) as indicated by the arrows in
figure 2.
Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support
your unit correctly, and could result in damage or injury from tip-over.
•
How to remove the stand
When you transport this product, remove the stand and pack flat against the back of the unit in the carton. To
remove the stand, perform the above steps in reverse order.
For wall mounting, the stand must be removed. To disconnect the stand remove the 4 screws from the back (see
page 5).
NOTE:
• Assure the AC cord is not connected to the unit.
• Before beginning this process, assure that the TV is laid on a clean, safe, and cushioned surface to avoid any
damage to the unit.
• Do not touch or press the TV-screen, glass might break under pressure.
Place the TV on its front onto a table.
Align the stand (supplied) as seen here.
It will fit in only one direction.

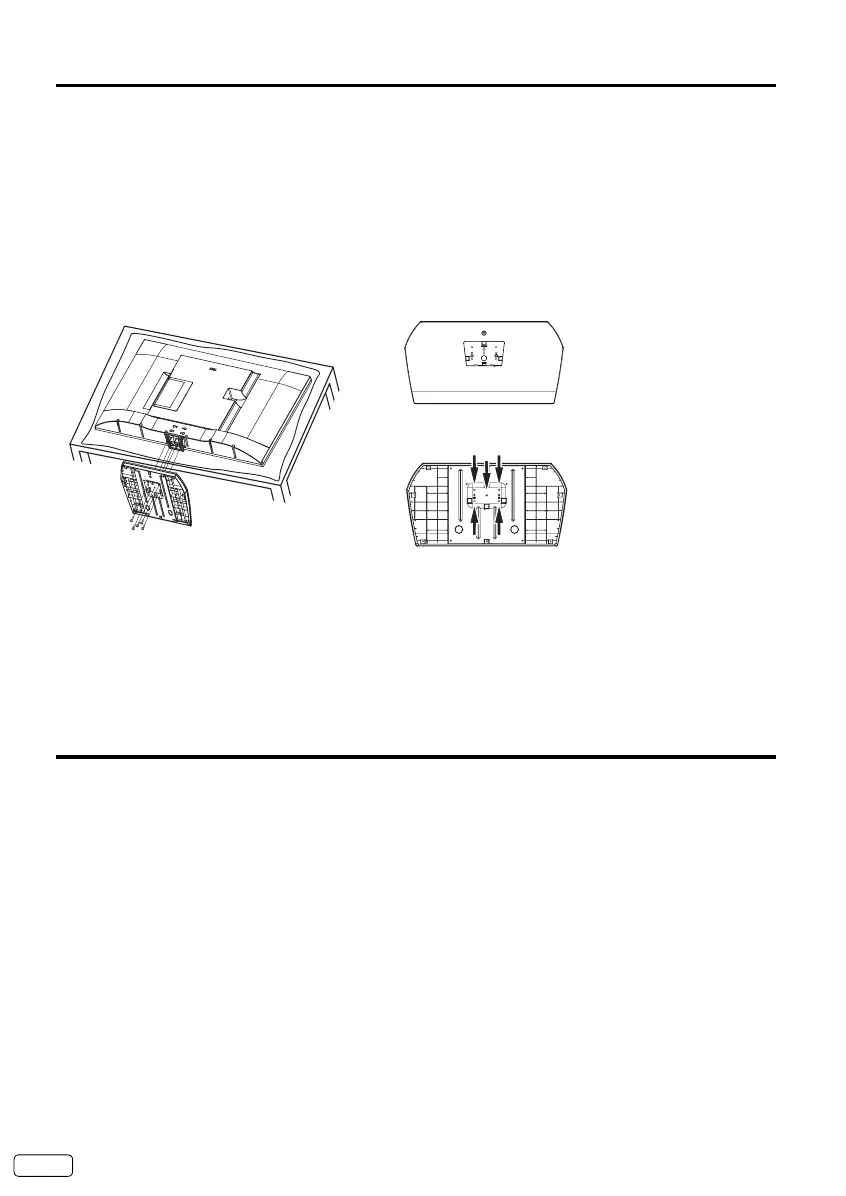

Hold the unit and attach the stand as shown in fi gure 1.
Figure 1
LCD PANEL SIDE
Figure 2
